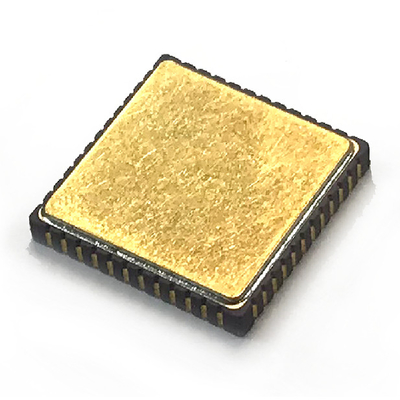

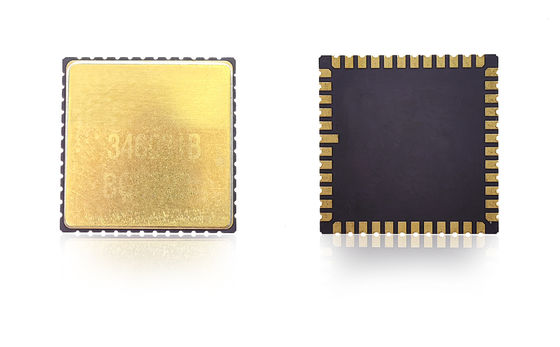

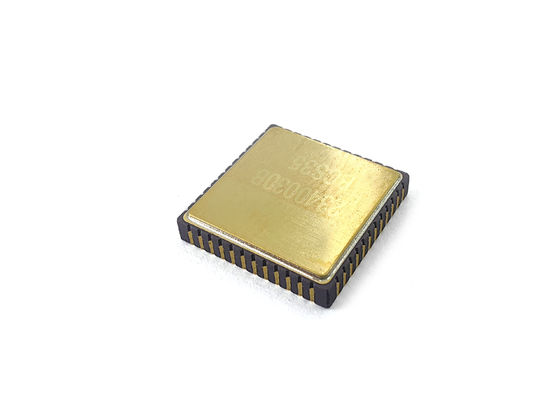

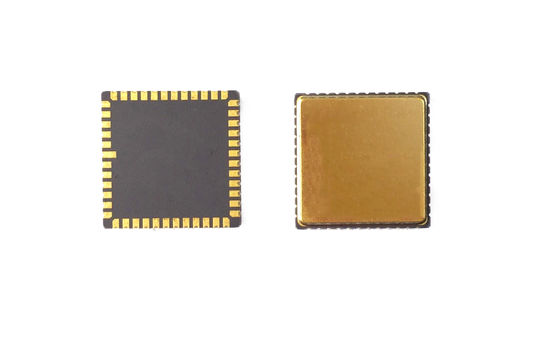

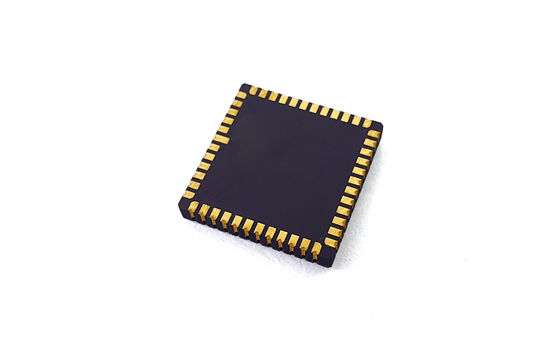

MINI GYRO BOARD HIGH PERFORMANCE GYRO BOARD PRICE MGZ GYRO SENSOR

Brand Name:	Firepower
Model Number:	MGZ1
MOQ:	1
Payment Terms:	T/T
Supply Ability:	500/month

Detail Information

Product Description

Detail Information

Place of Origin:

china

Product Name:

GYRO PCB

Range:

500deg/s

Band Width:

250Hz

Output Accuracy:

24 Bits

Output Rate:

12k Hz

Delay(customized):

<2ms

Bias Temperature Drift:

<2deg/Hr/C

Packaging Details:

sponge+box

Supply Ability:

500/month

Highlight:

MINI GYRO BOARD

HIGH PERFORMANCE GYRO BOARD

MGZ GYRO SENSOR

Product Description

MINI GYRO BOARD HIGH PERFORMANCE GYRO BOARD PRICE MGZ GYRO SENSOR

ABOUT FIREPOWER

Firepower Technology (Shenzhen) Co., Ltd. was established in 2013 and registered in Shenzhen Nanshan High-tech Park. The company is a high-tech enterprise dedicated to R&D and production of quartz accelerometer, FOG, IMU, INS, rate table and other products.

Firepower Technology has invested in several automatic production lines in Xi'an, Shenzhen, and Hebei, including fiber optic gyroscope, MEMS inertial navigation, quartz accelerometer, electronic countermeasure communication products, and inertial simulation equipment production lines in China. Firepower Technology always prioritizes scientific research innovation, technological exploration, and self-control.

The company has developed a series of autonomous navigation products with independent intellectual property rights, specially designed for UAVs, vehicles, and ships. With the self-developed array algorithm as the core technology, these inertial navigation products solve the current position, three-dimensional attitude, and speed of user carriers, enabling autonomous navigation control.

PRODUCT SPECIFICATIONS

Performance	Unit	MGZ1	MGZ2	MGZ3	MGZ4	MGZ5	MGZ6
Range	deg/s	500	500	500	400	400	8000
Band Width @3DB (customized)	Hz	250	250	250	200	100	200
Output accuracy (digital SPI)	bits	24	24	24	24	24	24
Output rate (ODR) (customized)	Hz	12K	12K	12K	12K	12K	12K
Delay (customized)	ms	<2	<2	<2	<2	<3	<2
Bias stability (Allan Curve@25℃)	deg/hr(1o)	<0.5	<0.2	<0.3	<0.1	<0.1	<5
Bias stability (10s average@25℃)	deg/hr(1o)	<3	<1	<2.5	<0.5	<0.5	<20
Bias stability (1s error@25℃)	deg/hr(1o)	<9	<3	<7.5	<1.5	<1.5	<60
Bias temperature drift	deg/Hr/C	<2	<1	<2	<0.5	<0.5	<5
Bias repeatability (25℃)	deg/hr(1o)	<3	<1	<3	<0.5	<0.5	<5
Scare factor repeatability (25℃)	ppm(1o)	<50ppm	<50ppm	<50ppm	<50ppm	<20ppm	<10ppm
Scare factor drift (1sigma)	ppm(1o)	±200ppm	±200ppm	±200ppm	±200ppm	±100ppm	±100ppm
Scare factor nonlinear (in full temperature)	ppm	<300ppm	<300ppm	<300ppm	<300ppm	<200ppm	<100ppm
Angular random walk (ARW)	°/√h	<0.15	<0.15	<0.125	<0.025	<0.025	<1
Resolution	°/hr	<1	<0.5	<1	<0.1	<0.1	<5
Noise (Peak to Peak)	deg/s	<±0.25	<±0.20	<±0.2	<±0.1	<±0.1	<±1
G Value sensitivity	°/hr/g	<3	<1	<3	<1	<1	<3
Vibration rectification error (12gRMS,20-2000)	°/hr/g(rms)	<3	<1	<3	<1	<1	<1
Power-on time (valid data)	s	1	1	1	1	1	1

ENVIRONMENTAL SPECIFICATIONS

Impact (power on): 500g (1ms, 1/2 sine)
Impact resistance (power off): 1wg 5ms
Vibration (power on): 12g rms (20Hz to 2kHz)
Working temperature: -45℃ to +85℃
Store temperature: -50℃ to +105℃
High overload resistance (power off): 10000g - 20000g
