High performance GPS System Low cost GPS sensor
• GPS, BDS, GLONASS,QZSS dual-frequency support
• Centimeter level high precision RTK positioning
• High performance MEMS IMU integrated
• Integrated DTU supports 4G LTE connection
• Rich peripheral: Serial Port, USB 2.0 OTG, Ethernet,
CAN/RS422, TF Card etc.
• International Protection code 67(IP67)
• Support NMEA-0183 data output
• Support Femtomes ASCII/Binary data output,BINEX
• Easy Web GUI access, fast configuration, grachic
display and firmware upgrade via web browsers
• Support NTP, FTP download, FTP Push, EMAIL
abnormal alarm
• Voltage:9-36VDC(Typical 12VDC)
• Power Consumption:5W(Typical)
• Serial Port: UART,CAN,RS422

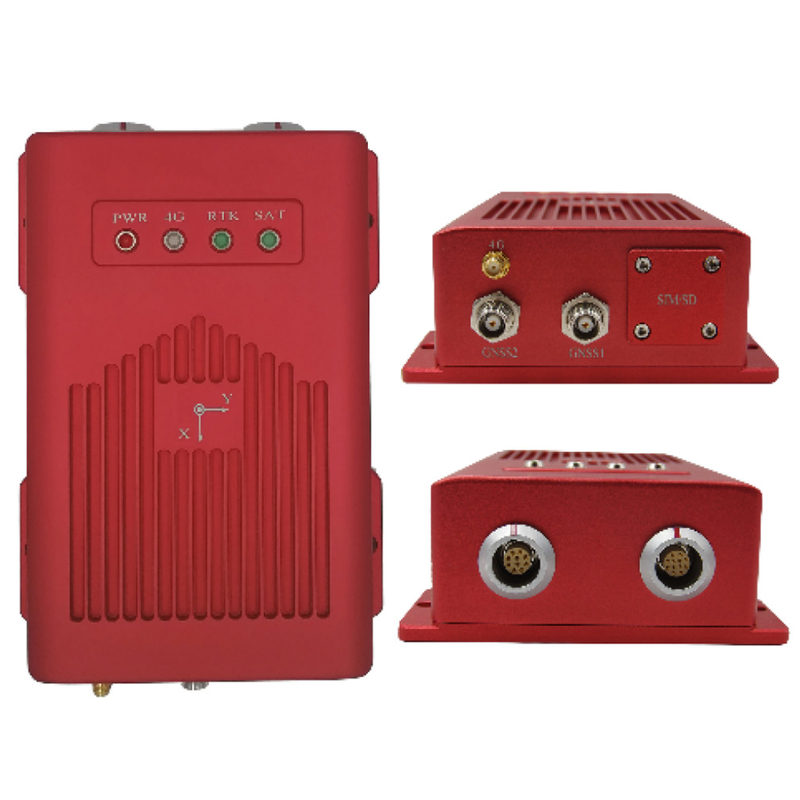

R-Plus-INS Receiver is a robust high precision receiver which supports dual frequency from the GPS, BDS,GLONASS and QZSS constellations. This delivers the quickest and most reliable RTK initializations for centimeter level positioning and precise heading. Mainly facing to applications of high-precision positioning, navigation and mapping, etc. Customers benefit from the Ethernet connectivity available on the board, allowing high speed data transfer and configuration via standard web browsers. Serial port, USB and CAN are also supported.
