products details

Home Products

Fiber Optic Gyro

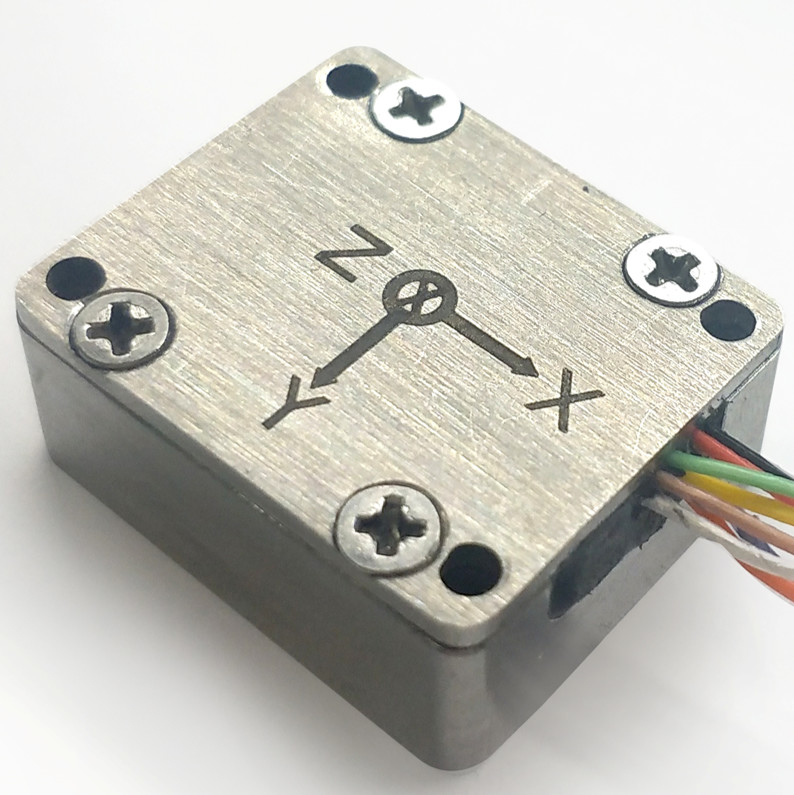

MEMS 3-AXIS GYRO LOW COST MEMS GYRO

Name: MEMS 3-AXIS GYRO LOW COST MEMS GYRO
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: M30B
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	M30B
MOQ:	1
Payment Terms:	T/T
Supply Ability:	200/MONTH

Detail Information

Product Description

Detail Information

Place of Origin:

china

Product Name:

Low Cost Gyro Sensor

Range:

500 °/s

Stability:

8°/h

Start Repeatability:

15°/h

Zero Bias:

0.1°/s

Random Walk:

0.12 °/√hr

Packaging Details:

Sponge+ box

Supply Ability:

200/MONTH

Highlight:

LOW COST MEMS GYRO

MEMS GYRO

Product Description

MEMS 3-AXIS GYRO LOW COST MEMS GYRO

MEMS 3-AXIS GYRO LOW COST MEMS GYRO 0

Parameter			Test conditions	Typical value	Unit
Angular velocity	Range		Turntable	500	°/s
	Peak-to-peak value		Static test	0.15	°/s
	Zero bias	Stability	10 s average, + 70 ℃, + 20 ℃, -40 ℃	8	°/h
		Stability	Allan variance, + 20 ℃	1.9	°/h
		Start repeatability	+70℃,+20℃,-40℃	15	°/h
		Zero-bias total temperature variation	-40 ℃ ~ + 70 ℃, 1 ℃/min, 10 s average, 1σ	0.02	°/s
		Zero bias	Life-cycle change, accelerated testing	0.1	°/s
	Scale factor	Repeatability of successive starts	+70℃,+20℃,-40℃	100	ppm
		Daily start repeatability	+70℃,+20℃,-40℃	200	ppm
		Monthly Start Repeatability	+70℃,+20℃,-40℃	400	ppm
		Non-linearity	+20℃	200	ppm
		Full temperature change	1℃/min,1σ	400	ppm
		Scale factor	Life-cycle change, accelerated testing	2000	ppm
	Acceleration sensitive term			5	°/h/g
	Random walk			0.12	°/√hr
	Noise density			0.002	°/s/√Hz
	Bandwidth		3dB	200	Hz
	Data delay		Excluding transmission time	5ms	ms
Start time			Time from power-on to output valid data	500	ms
Reset time			Time from reset to output valid data (hard reset)	500	ms
Reset time			Time from reset to output valid data (soft reset)	300	ms
The degree of nonorthogonality between any two ax			+70℃,+20℃,-40℃	0.05	°
Power supply				5±0.1	V
Power consumption				0.8	W
Communication update rate			1-way RS422	200 (default)2000 (Max)	Hz
