Fiber Optic Gyro
Created with Pixso.

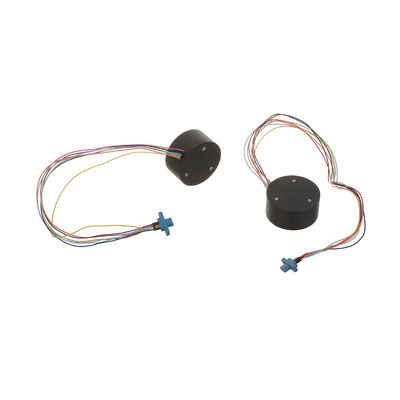

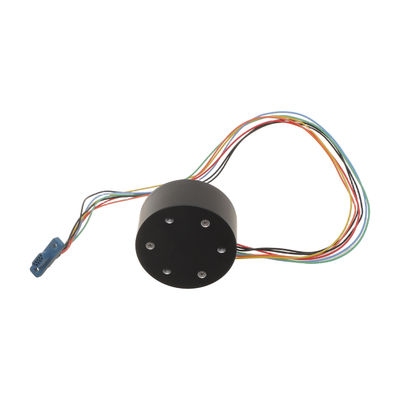

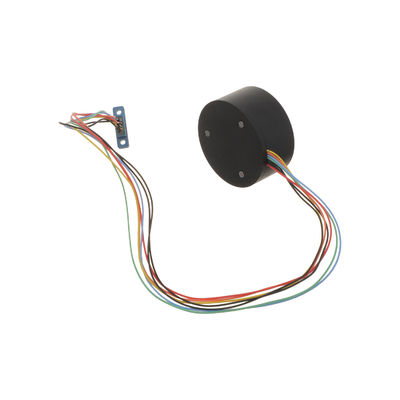

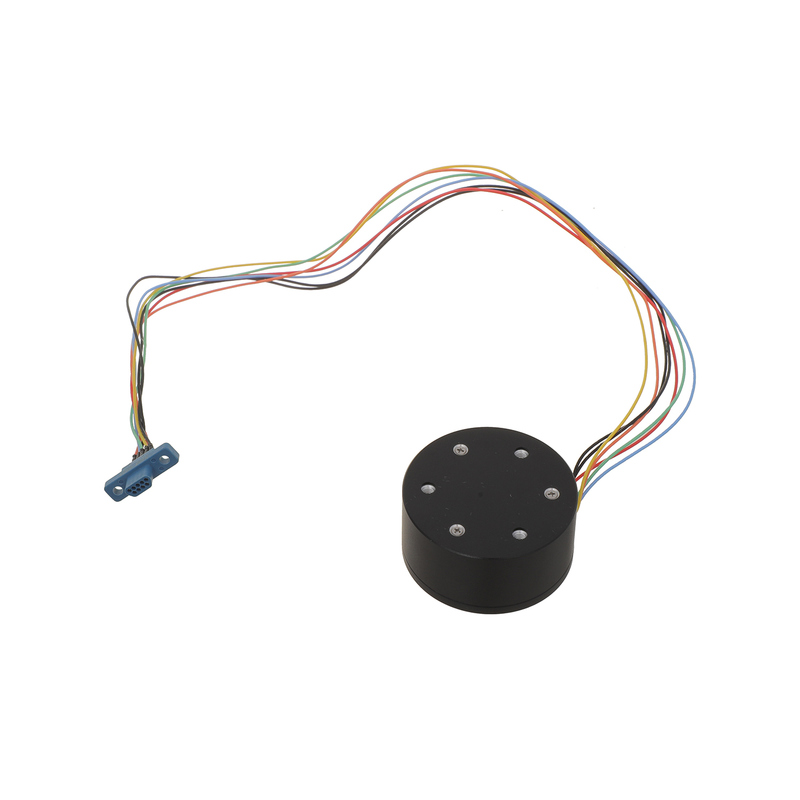

Drone Single Axis Fiber Optic Gyro Low Drift Ce Certificate

Drone Single Axis Fiber Optic Gyro Low Drift Ce Certificate

Drone Single Axis Fiber Optic Gyro Low Drift Ce Certificate

Brand Name: Firepower
Model Number: MFOG-1703
MOQ: 1
Payment Terms: T/T
Supply Ability: 100/month
Detail Information
Product Description
Detail Information
Place of Origin:
China
Certification:
CE
Product Name:
Fiber Optic Gyroscope
Range:
≥150 °/s
Zero-bias Stability:
≤1 °/h
Bandwidth:
≥ 300 Hz
Vibration Resistance:
≥ 20 G
Input Voltage:
DC 5V
Output Type:
Analog Or Digital
Dimension:
40mm × 20mm
Packaging Details:
sponge+box
Supply Ability:
100/month
Highlight:

Single Axis Fiber Optic Gyro

,

Drone Fiber Optic Gyro

,

Fiber Optic Gyro CE

Product Description
Drone Single Axis Fiber Optic Gyro Low Drift CE Certificate
Composition
The product is mainly composed of the following components:
  • An optical path assembly
  • Detection and control signal circuit board
  • Optical fiber ring skeleton, shell and other structural parts
Appearance and Dimensions
Dimensions: Cylindrical, φ40mm * 20mm
Weight: ≤40g
Environmental Specifications
Operating Temperature: -40℃ to +70℃
Storage Temperature: -55℃ to +85℃
Random Vibration: 20g, frequency range: 20Hz to 2000Hz
Main Performance Parameters
Serial Number Project Performance Indicators
1 Range (°/s) ±150
2 Scale factor (mV/°/s) 12±1.2
3 Zero-bias stability (10s, 1σ, °/h) ≤1
4 Zero-bias repeatability (1σ, °/h) ≤1
5 Angular random walk (°/h 1/2) ≤0.02
6 Zero-bias temperature sensitivity (uV/°C) ≤1
7 Scale Factor Temperature Sensitivity (ppm/°C) ≤300
8 3dB Bandwidth (Hz) ≥450
External Power Supply Requirements
Parameter Specification
Voltage 4.75V to 5.25V
Ripple 20mV
Electric current 0.2A
Tags:

Single Axis Fiber Optic Gyro

250hz High Precise Gyro

Low Bias Angular Inertial Meter
