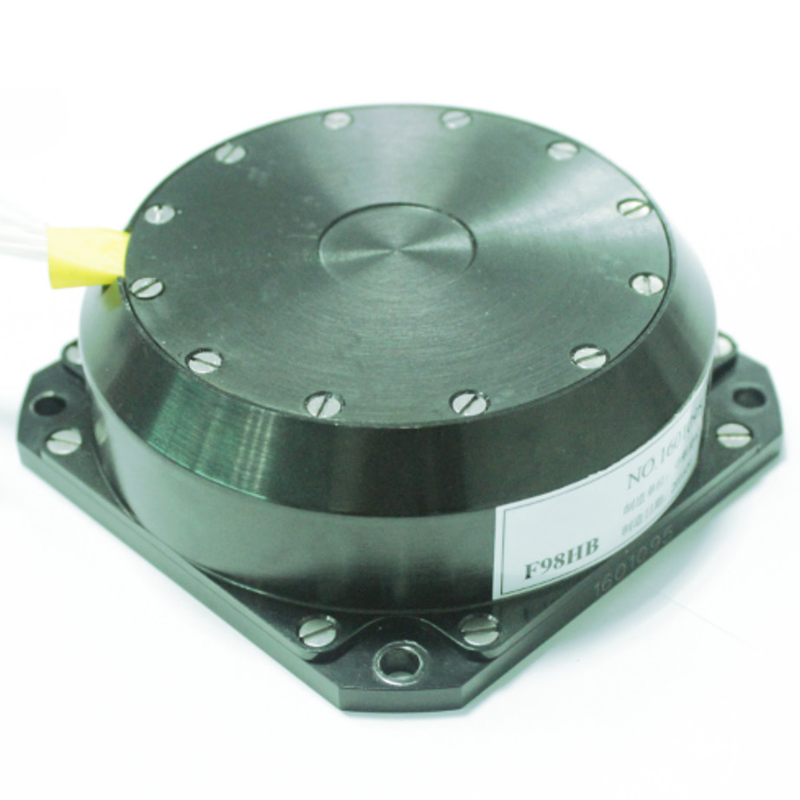

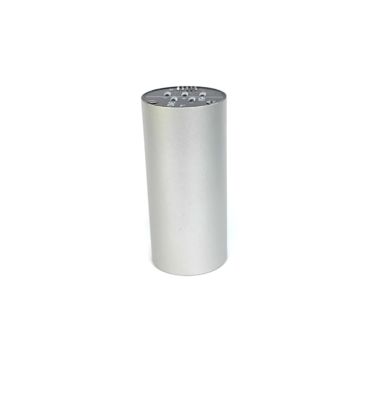

1 Axis FOG Navigation Gyro Sensor Low Drift CE Certificate

1
MOQ
1 Axis FOG Navigation Gyro Sensor Low Drift CE Certificate
Features Gallery Product Description Request A Quote
Features
Specifications
Power Supply: -5,+5v
Scale Factor Nonlinear: ≤5ppm
Measuring Range: ±400°/s
Power: 6w
Start Time: 1s
Random Walk: ≤0.003
High Light:

FOG Navigation Gyro Sensor

,

Navigation Gyro Sensor Low Drift

Basic Infomation
Brand Name: A-VIC
Certification: CE
Model Number: F98-01
Payment & Shipping Terms
Packaging Details: sponge+ box
Delivery Time: 20 days for sample
Payment Terms: T/T
Supply Ability: 50/month
Product Description

1 axis FOG low drift inertial gyro navigation gyro sensor



Performance Characteristics



No. Parameter F98-400 Unit Remarks
1 Maximum angular rate ±400 °/s
2 Scale factor

1650000×

(1±10%)

SP/°/s
3 Scale factor nonlinearity in room temperature ≤20 ppm
@25℃
4 Scale factor repeatability in room temperature ≤20 ppm @25℃
5

Scale factor repeatability in full

temperature



≤50 ppm -40℃~+70℃
6 Bias stability in room temperature ≤0.02

10s

1σ,°/h

@25℃
7 Bias repeatability in room temperature ≤0.01 1σ,°/h Bias
8 Bias repeatability in tull temperature ≤0.03 1σ,°/h -40℃~+70℃
9 Bias stability in changing temperature ≤0.015

100s

1σ,°/h

0.3℃/min,-40℃~+70℃
10 Random walk ≤0.003 °/
11 Activation time 0 min
12 Bias value during vibration/before vibration/after vibration ≤0.05 °/h
13 Bias value before/after vibration) ≤0.05 °/h
14 Magnetic sensitivity ≤0.01 °/h/Gs
15 Threshold value ≤0.02 °/h
16 Vibration

20Hz~2000Hz



Hz/10min
X Y Z

Vibration

spectrum


17 Impact 15g(3times) Half sine wave/11ms
±X ±Y ±Z



Dimensions

1 Axis FOG Navigation Gyro Sensor Low Drift CE Certificate 0



Features

● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.

● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.

● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.

● QuichLaunch technology -minium activation time with no external calibration required.

● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.

● Noise isolation and compression -significantly reduces the angle random walk.

● SelfTrack technology -improves the gyro dynamic range



Applications

●UAV/AUV/Helicopter ●Tactical nuclear weapons ●Aeronautics and astronautics

●Integrated navigation system ●inertial platform stabilizing ●Vehicle navigation

1 Axis FOG Navigation Gyro Sensor Low Drift CE Certificate 1
