High Precision Fiber Single Axis Gyroscope Low Power Inertial

Name: High Precision Fiber Single Axis Gyroscope Low Power Inertial
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Zero-bias Stability:

≤2°/h

Zero Bias Repatability:

≤2°/h

Power Consumption:

< 0.7 W

Random Vibration:

20g, Frequency Range: 20Hz ~ 2000Hz.

Random Walk Coefficient:

≤0.04º/h1/2

Output Type:

Analog

Packaging Details:

sponge in box

Highlight:

High Precision Fiber Single Axis Gyroscope

Fiber Single Axis Gyroscope Low Power

Product Description

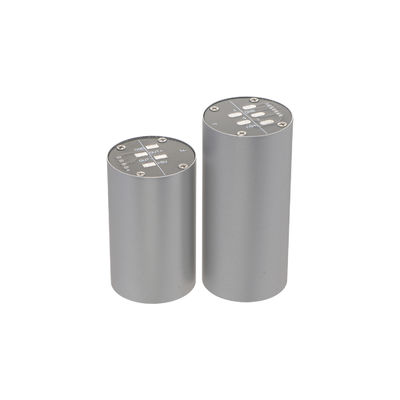

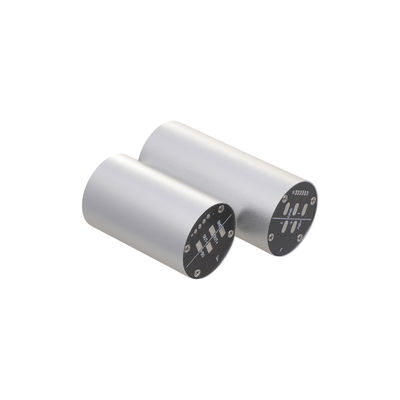

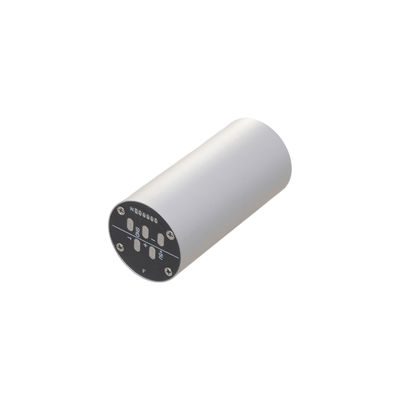

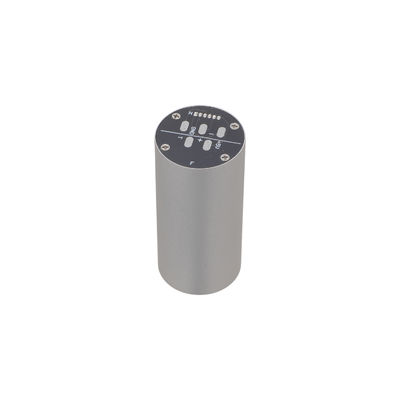

MFOG-091A Micro-Nano Fiber Optic Gyroscope

A compact, accurate, and robust fiber optic gyroscope utilizing Sagnac-based micro-nano fiber technology. Designed as a full-performance substitute for Fizoptika VG091, ideal for UAVs, navigation modules, and robotic systems.

Key Specifications

Bias stability: ≤2°/h
ARW: ≤0.04°/√h
Range: ±300°/s
Operating temperature: -40°C to +70°C
Dimensions: φ24*51.6mm
Weight: ≤30g
Power consumption: ≤0.7W

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Environmental Specifications

Storage temperature: -55°C to +85°C
Random vibration: 20g (20Hz-2000Hz)

Main Performance Parameters

Parameter	Value
Range (°/s)	±300
Scale factor	7±0.7mv/o/s
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤2
Zero-bias repeatability (1σ, °/H)	≤2
Angular random walk (°/H 1/2)	≤0.04
Zero bias (°/s)	≤0.05
Bandwidth 3dB Band Width (Hz)	≥450
Power supply (V)	5±0.15
Power Consumption (W)	≤0.7

Mechanical and Electrical Interfaces

The cylindrical surface serves as the installation surface, using clamps for mounting.

Power Requirements

Parameter	Specification
Voltage	4.85V-5.15V
Ripple	20mV
Current	0.2A

Electrical Interface Definition

Pin Number	Definition	Notes
1	5V
2	Out-	Differential Output
3	Out+
4	GND	Power ground

Output impedance: 1 kΩ, differential analog voltage output.
