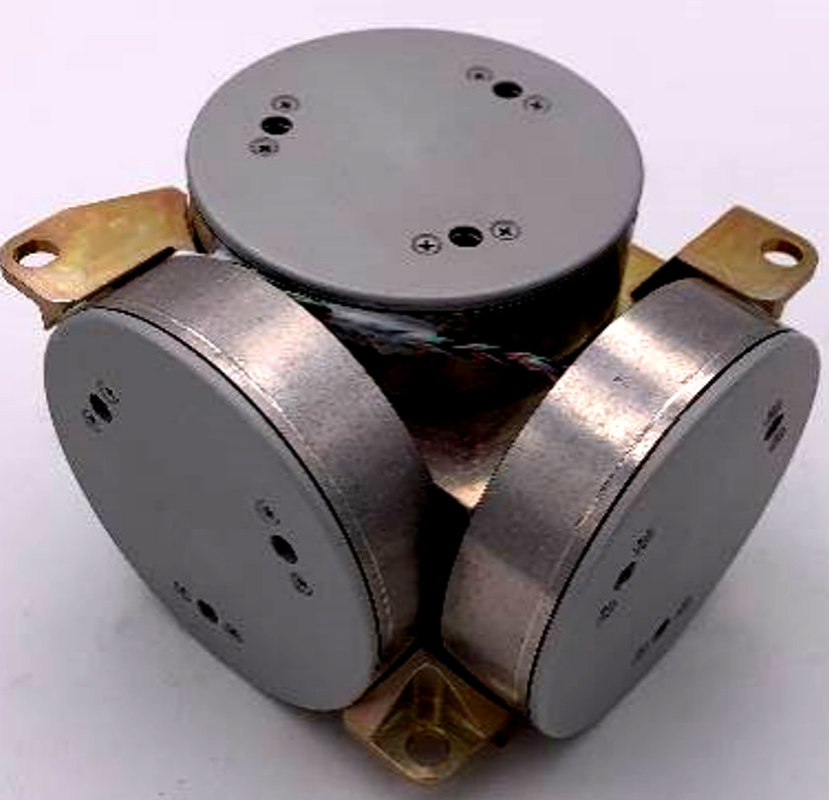

3 In 1 Fiber Optic Gyro FOG Inertial Gyroscope Navigation

Name: 3 In 1 Fiber Optic Gyro FOG Inertial Gyroscope Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: 30G-70H
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	30G-70H
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Product Name:

Fiber Optic Gyro

Zero Bias Stability:

≤0.08 (°)/h

Zero-bias Repeatability:

≤0.015(°)/h

Scale Factor Nonlinearity:

≤20 Ppm

Scale Factor Asymmetry:

≤5 Ppm

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

3 In 1 Fiber Optic Gyro

Fiber Optic Gyro FOG

FOG Inertial Gyroscope Navigation

Product Description

triaxial gyro inertial navigation gyro 3 in 1 FOG integrated gyro

Performance Characteristics

No.	Test item	Unit	Technical requirements
1	Start time	min	Power-on bias stability index
2	Zero bias stability	(°)/h	≤ 0.05 (10s smoothing)≤ 0.015 (100s smoothing)
3	Zero bias stability at full temperature(1 ℃/min variable temperature, 100 s average)	(°)/h	≤0.08
4	Zero-bias repeatability	(°)/h	≤0.015
5	Random walk coefficient	(º)/h1/2	≤0.003
6	Scale factor nonlinearity	ppm	≤20
7	Scale factor asymmetry	ppm	≤5
8	Scale factor repeatability	ppm	≤10
9	Scale factor repeatability (full temperature)	ppm	≤50
10	Operating temperature	℃	-40~+60
11	Storage temperature	℃	-50~+70
12	Dynamic range	(°)/s	±500
13	Supply voltage	V	+5V
14	Steady state power consumption (full temperature)	W	＜4

This product is an inertial angular rate sensor based on the optical Sagnac effect, which is used to measure the angular velocity of the carrier along the sensitive axis of the product. The angular velocity sensing unit of the product is an optical fiber ring, and a digital closed-loop detection circuit is adopted to extract the optical path difference of clockwise and counterclockwise propagation light caused by the external physical angular velocity, which is sensed by the optical fiber ring,At the same time, the voltage signal converted from the optical path difference signal is used for closed-loop feedback and control to realize the modulation and demodulation of the signal and achieve the purpose of high-precision angular velocity signal detection.
