Single Axis Angular Fiber Optic Gyro 6w Rs422 Servo Gyro

Name: Single Axis Angular Fiber Optic Gyro 6w Rs422 Servo Gyro
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Dynamic Range:

±300°/s

Bias Stability:

<2°/h

Power Consumption:

≤1.5W

Output Mode:

Analog Voltage

Connector:

Soldering Pin/ Pad

Dimension:

φ24mm × 51.6mm

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

Single Axis Fiber Optic Gyro

Fiber Optic Gyro 6w

RS422 Servo Gyro

Product Description

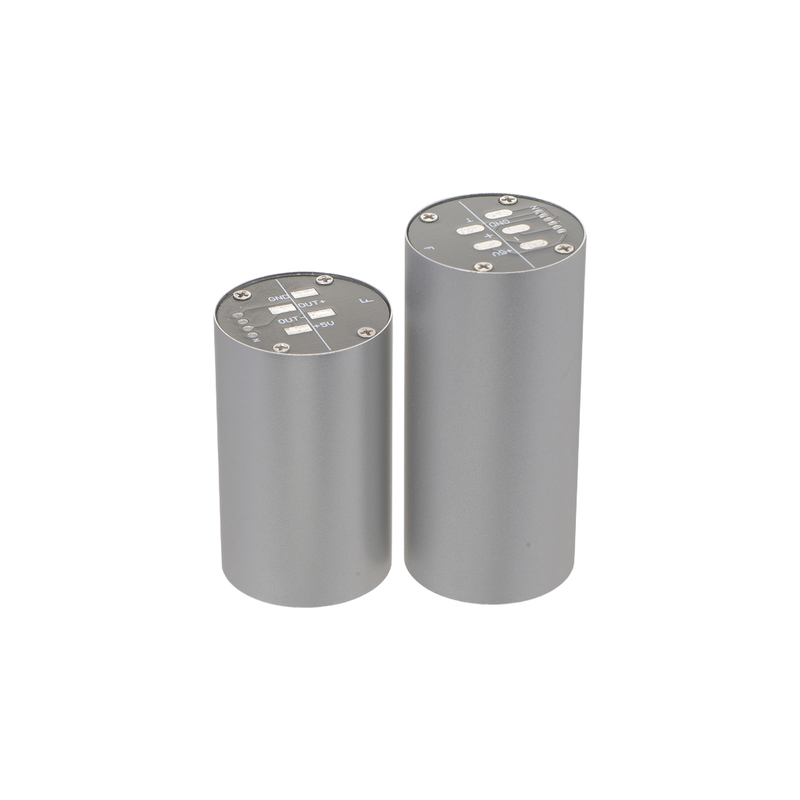

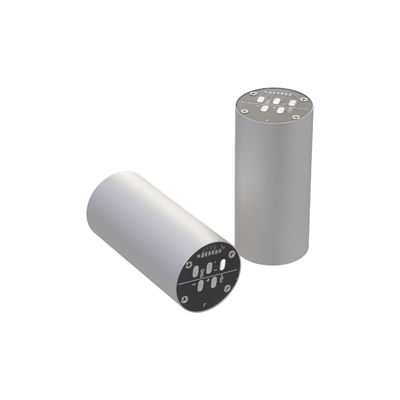

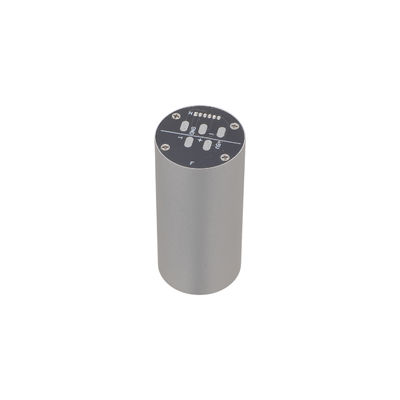

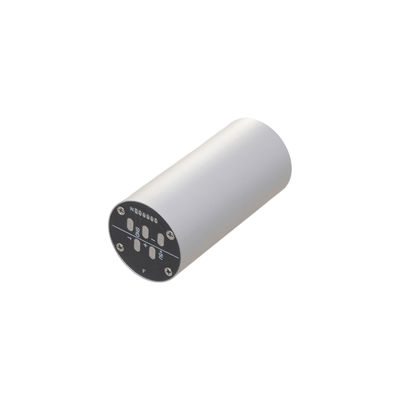

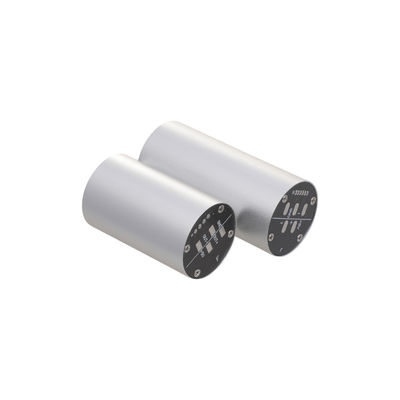

MFOG-091A Fiber Optic Gyroscope

The MFOG-091A fiber optic gyroscope provides a high-performance inertial sensing solution with easy integration into various platforms. Featuring standardized electrical interfaces and stable output characteristics, it's ideal for INS, AHRS, and gimbal systems. Fully compatible with Fizoptika VG091, it delivers bias repeatability ≤2°/h and excellent signal linearity (≤1000 ppm) for precision motion control.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Technical Specifications

Physical Characteristics

Appearance: Cylindrical

Dimensions: φ24mm * 51.6mm

Weight: ≤30g

Environmental Specifications

Operating Temperature: -40℃ to +70℃

Storage Temperature: -55℃ to +85℃

Random Vibration: 20g, 20Hz-2000Hz

Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale factor	7±0.7mv/o/s
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤2
Zero-bias repeatability (1σ, °/H)	≤2
Angular random walk (°/H 1/2)	≤0.04
Zero bias (°/s)	≤0.05
Bandwidth 3dB Band Width (Hz)	≥450
Power supply (V)	5±0.15
Power Consumption (W)	≤0.7

Interfaces

Mechanical Interface

The cylindrical surface serves as the installation surface, designed for clamp mounting.

Power Requirements

Parameter	Specification
Voltage	4.85V-5.15V
Ripple	20mV
Current	0.2A

Electrical Interface

The MFOG-091A connects electrically through bonding pads with differential analog voltage output (output impedance 1 kΩ).

Pin Number	Definition	Remark
1	5V
2	Out-	Differential Output
3	Out+
4	GND	Power ground
