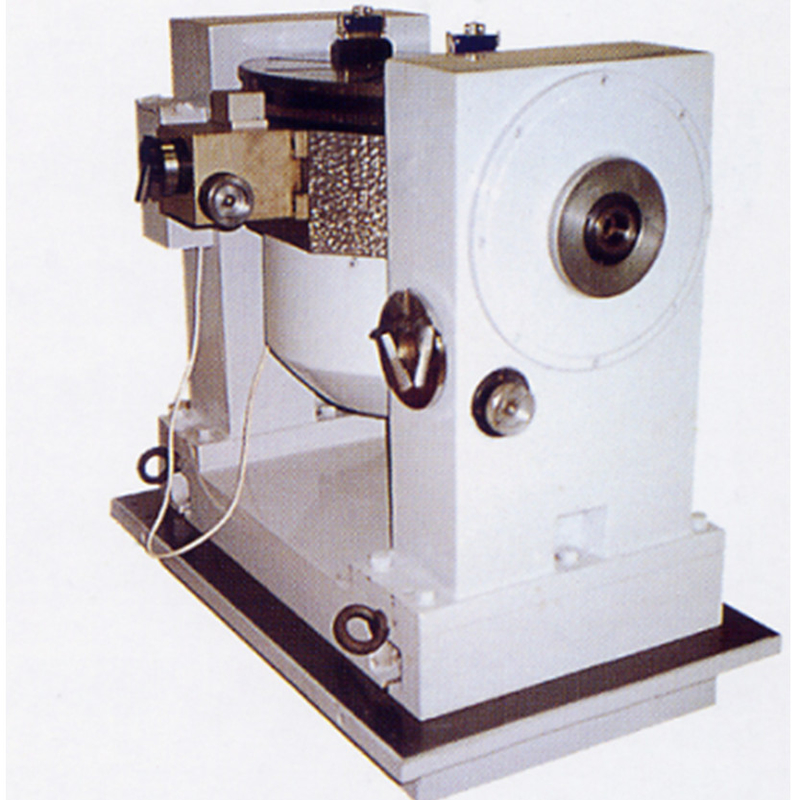

2ST-400, 2ST-460 is dual axis table facet type pilot wheel driving digital position turntable, it is mainly used for kinds of test for inertial system and device. Digital meter is equipped with angle digital display and standard serial port. It owns features of high accuracy, wide application, convenient usage, low cost, etc.
| items | 2ST-400 | 2ST-460 |
| Load capacity | 30kg | 40kg |
| Max tested object size | Ø360 x 200mm | Ø420 x 200mm |
| Table facet diameter | Ø400mm | Ø460mm |
| Table facet flatness | 0.01mm | |
| Table facet jerk value | 0.01mm~0.03mm | |
| Table facet material casting | casting | |
| wobble error | ±2’’ | |
| Axes perpendicularity | ±3’’ | |
| Rotary angle range |
Inner loop: ±15° Outer loop: ±45° |
Continuous infinite |
| Heading adjustment range | ±5’’ | |
| Working mode | position | position |
| Machine body weight | About 400kg | About 600kg |
| Outline size | Appr 500 x 450 x 600mm | Appr 800 x 600 x 850mm |
| Slip rings | 50 rings | |
| Computer port | RS232 | RS232 |
| Angular position measure accuracy(inner loop) | ±30’’ | ±3’’ |
| Angular position measure accuracy(outer loop) | ±1’’ | ±5’’ |
| Angular position measure resolution(inner loop) | 10’’ | 0.36’’ |
| Angular position measure resolution(outer loop) | 30’’ | 0.36’’ |
| Angular position measure repeatibility(inner loop) | ±1″ | |
| Angular position measure repeatibility(outer loop) |
±1.5″
|
