Car Navigation Electronics Micro-Nano Fiber Optic Gyro

Name: Car Navigation Electronics Micro-Nano Fiber Optic Gyro
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Price:	1217
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

350°/s

Scale Factor:

6±0.6mV/°/s

Zero Bias Stability:

≤1°/H, 10s, 1σ

Zero Bias Repeatability:

≤1°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

≤1w

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Precise Rate 1 Axis Positioner

1 Axis Positioner 30kg

1 Axis Positioner RS232

Product Description

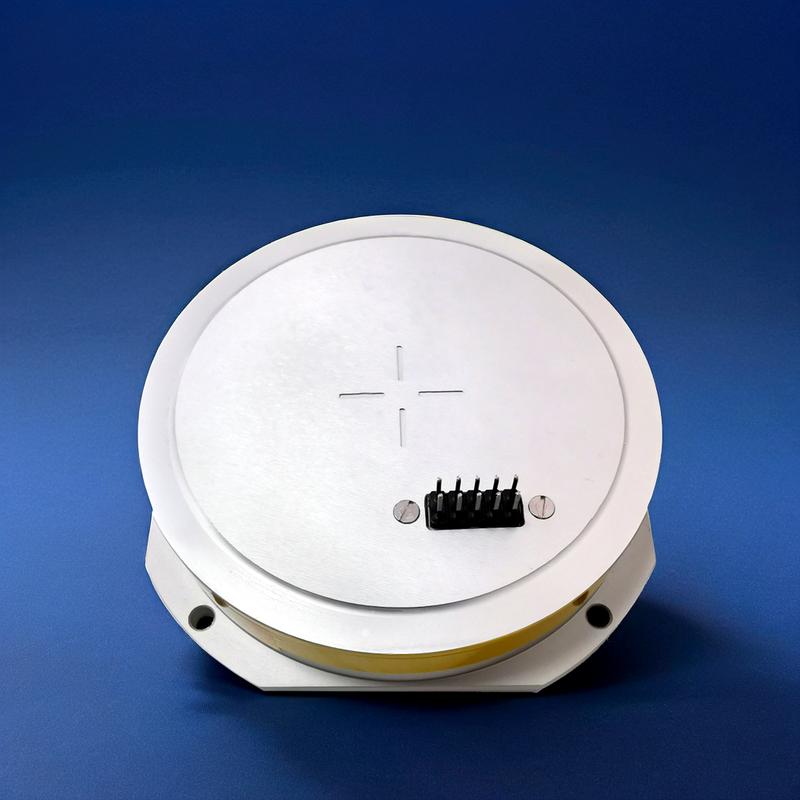

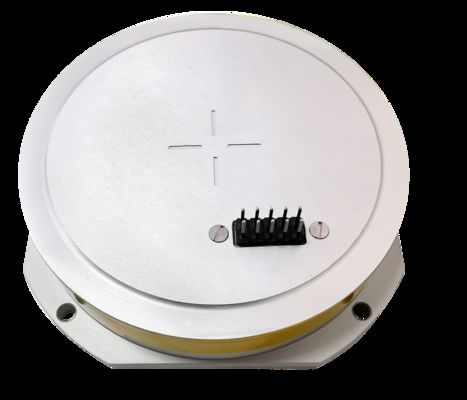

Car Navigation Electronics Micro-Nano Fiber Optic Gyro

Product Description

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by two counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features a simple structure with no moving or wear parts. It offers fast startup, compact size, lightweight design, and is suitable for attitude control and measurement applications in various carriers.

Technical Parameters

Project	Performance indicators
Range (°/s)	±350
Scale factor (mV/°/s)	6±0.6
Zero-bias stability (10s, 1σ, °/H)	≤1
Zero-bias repeatability (1σ, °/H)	≤1
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25
Power Consumption (W)	≤1
Impact (g)	≥1500
Acceleration (g)	≥70
Service Life (years) (calculated assessment)	≥15
MTBF (Calculated Assessment)	≥100000

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven company, Firepower possesses China's leading production capabilities for inertial navigation and communication products. Our self-developed array algorithm powers a series of proprietary inertial navigation products that provide critical position, attitude, and speed data for precise autonomous navigation in civilian vehicles and ships.

Company Advantage

Our Services

Package & Shipping

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: Quality is our priority with strict controls:

Production according to agreed technical requirements
Comprehensive testing per methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms convenient for you.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders: carton box with sponge. Batch orders: wooden box.

Q: What is final price?

A: Standard products as per price table. Customized products priced based on specifications and quantity.

Q: How to choose product?

A: We offer:

Standard products from our catalog
Customized versions of standard products
Fully custom solutions based on technical requirements
Application-specific recommendations
