Micro-Nano Fiber Optic Gyroscope for Angular Rate Measurement

Name: Micro-Nano Fiber Optic Gyroscope for Angular Rate Measurement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Price:	1217USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

350°/s

Scale Factor:

6±0.6mv/°/s

Zero Bias Stability:

≤1°/H, 10s, 1σ

Zero Bias Repeatability:

≤1°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

≤1W

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

Simulating 2 Axis Positioning Table

Precise 2 Axis Positioning Table

2 Axis Positioning Table 420 X 200mm

Product Description

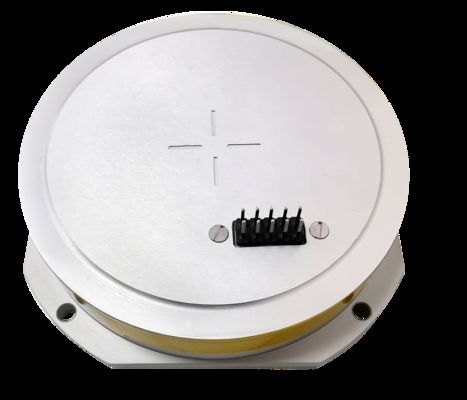

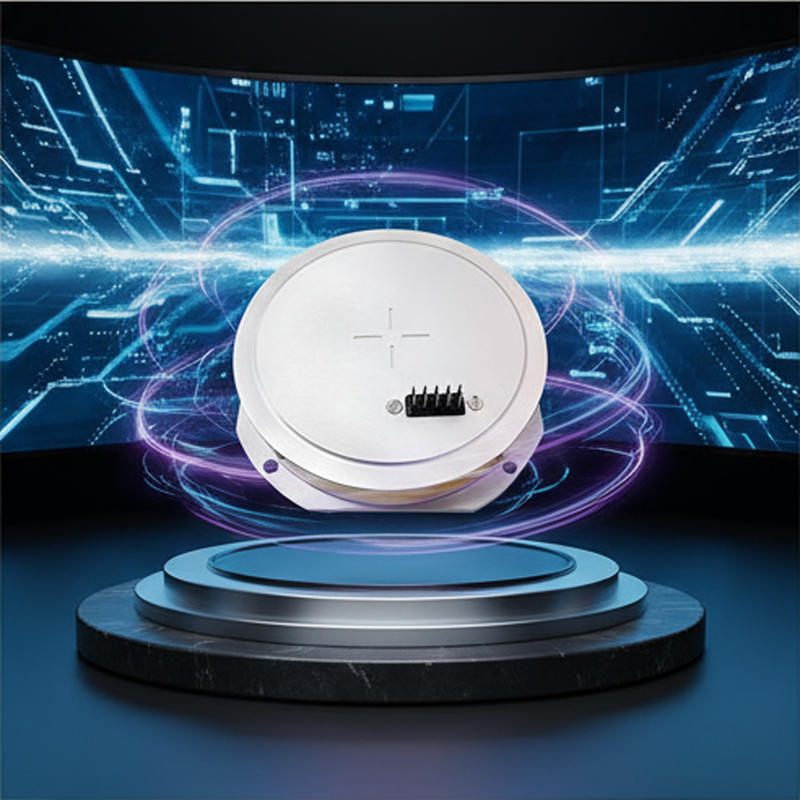

Micro-Nano Fiber Optic Gyroscope for Angular Rate Measurement

Product Description

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference between two counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features a simple design with no moving or wearing parts. It offers fast startup, compact size, and lightweight construction, making it ideal for attitude control and measurement applications in various carriers.

Key Features

Simple structure with no moving parts
Fast startup capability
Compact and lightweight design
High reliability with no wear components
Suitable for attitude control and measurement

Technical Parameters

Project	Performance indicators
Range (°/s)	±350
Scale factor (mV/°/s)	6±0.6
Zero-bias stability (10s, 1σ, °/H)	≤1
Zero-bias repeatability (1σ, °/H)	≤1
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25
Power Consumption (W)	≤1
Impact (g)	≥1500
Acceleration (g)	≥70
Service Life (years)	≥15
MTBF	≥100000
