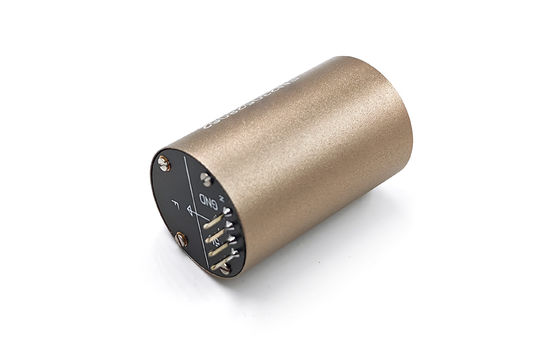

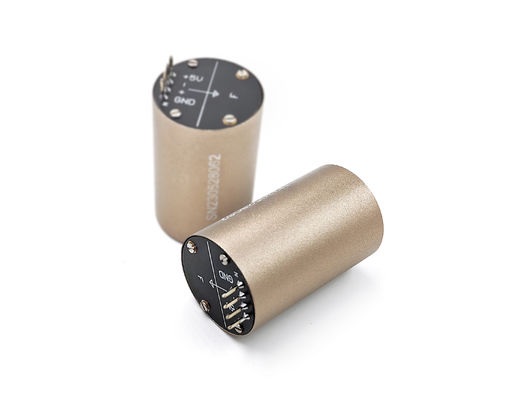

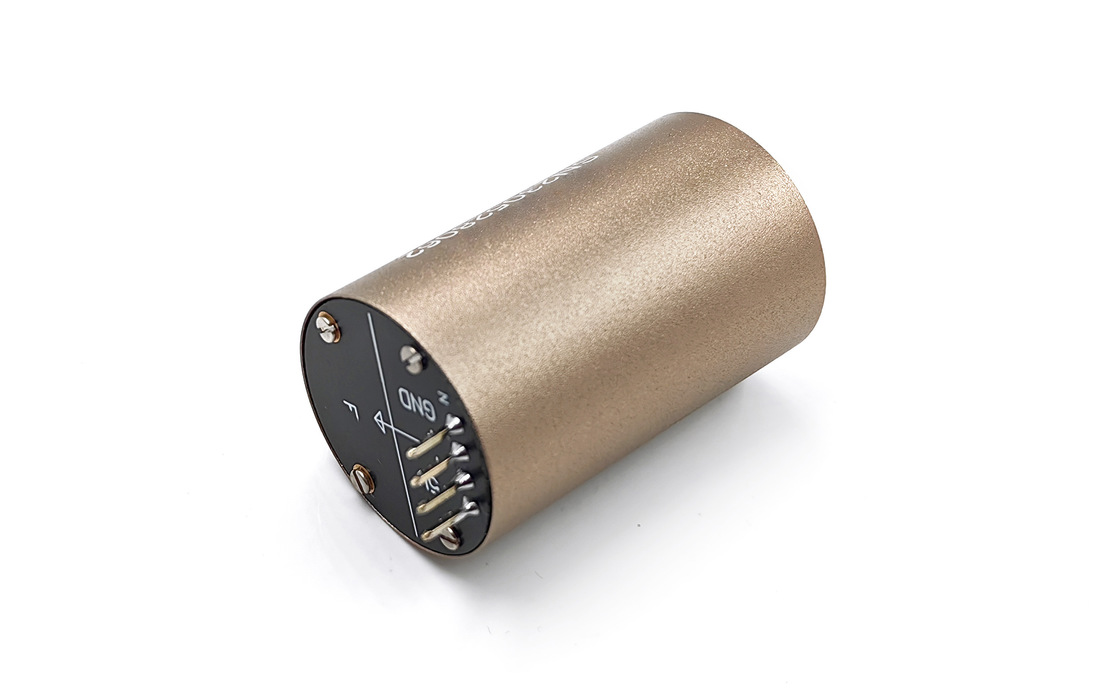

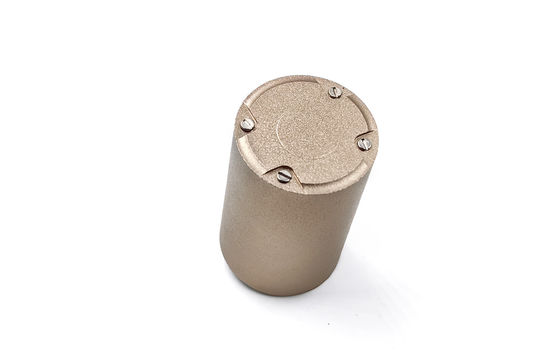

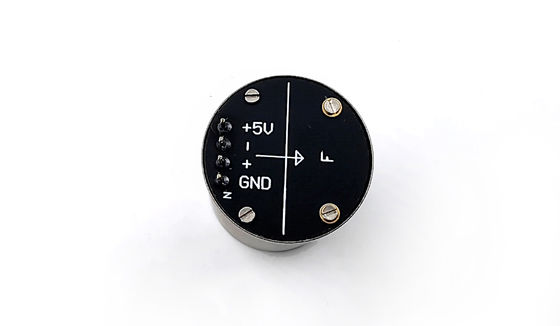

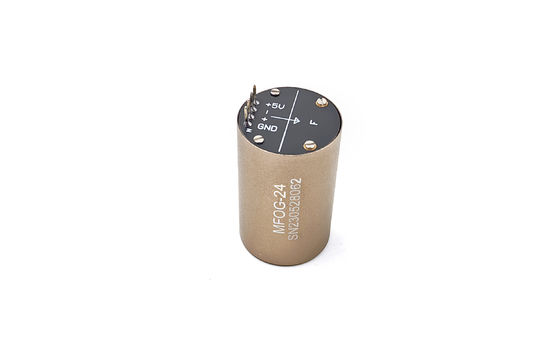

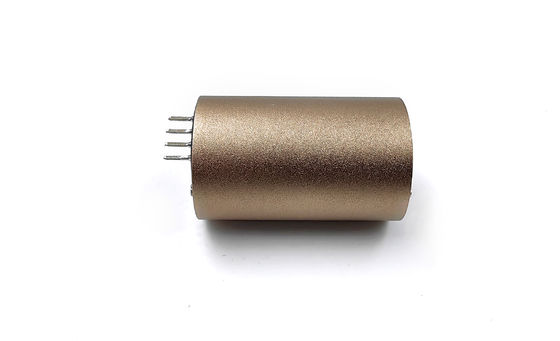

Silicon Photonic Chip Fiber Optic Gyroscope VG091A for Precision Navigation

Name: Silicon Photonic Chip Fiber Optic Gyroscope VG091A for Precision Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

±300°/s

Scale Factor:

7±0.7mv/o/s

Zero-bias Stability:

≤2 °/h

Zero-bias Repeatability:

≤2 °/h

Angular Random Walk:

≤0.04°/h

Dimension:

φ24X51.6mm

Packaging Details:

wooden carton

Supply Ability:

1000pcs

Highlight:

3'' Dual Axis Turntable

Inertial Test Dual Axis Turntable

Product Description

Silicon Photonic Chip Fiber Optic Gyroscope VG091A for Precision Navigation

Product Overview

The MFOG-091A micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it incorporates multiple micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

This precision instrument consists of optical path components, circuit components, and structural components. Key features include:

Simple, robust structure with no moving or wearing parts
Fast startup capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Product Composition

Optical path assembly
Detection and control signal circuit board
Fiber ring skeleton, housing, and structural components

Physical Specifications

Weight: ≤30g

Operating Temperature: -40℃ to +70℃

Storage Temperature: -55℃ to +85℃

Random Vibration: 20g (20Hz - 2000Hz)

Dimensions: φ24 * 51.6mm

Main Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale Factor	7±0.7mv/o/s
Scale Factor Nonlinearity (ppm)	≤1000
Zero-bias Stability (10s, 1σ, °/H)	≤2
Zero-bias Repeatability (1σ, °/H)	≤2
Angular Random Walk (°/H 1/2)	≤0.04
Zero Bias (°/s)	≤0.05
Bandwidth 3dB Band Width (Hz)	≥450
Power Supply (V)	5±0.15
Power Consumption (W)	≤0.7
