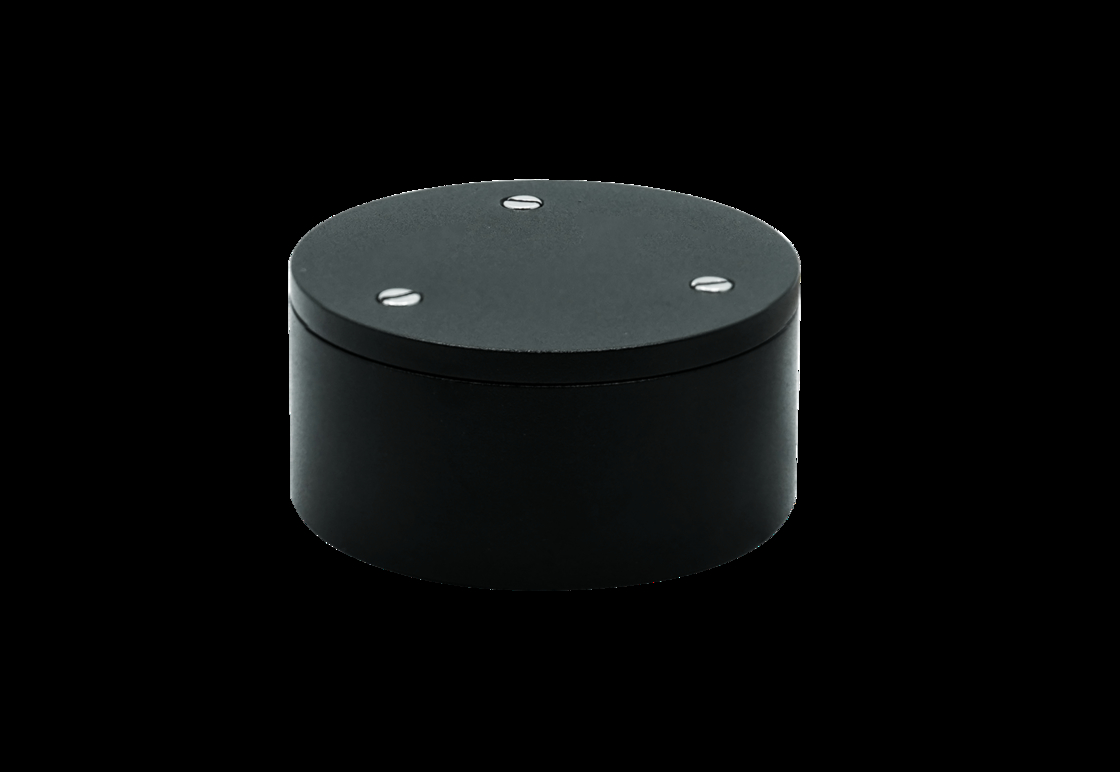

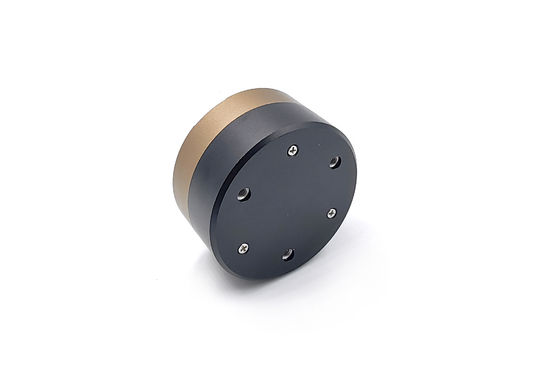

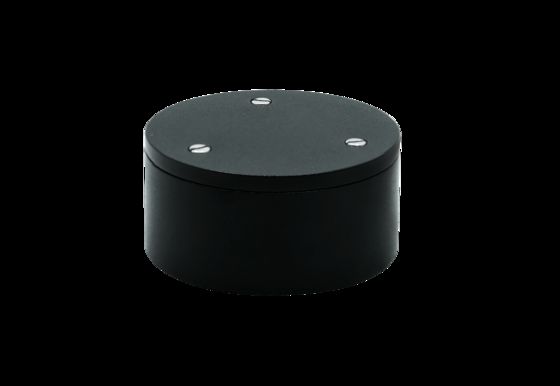

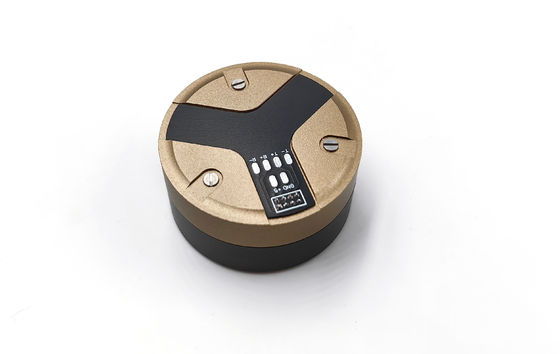

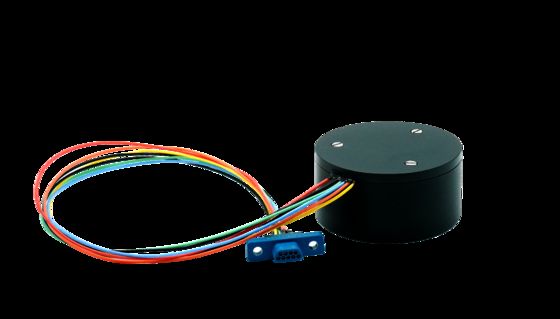

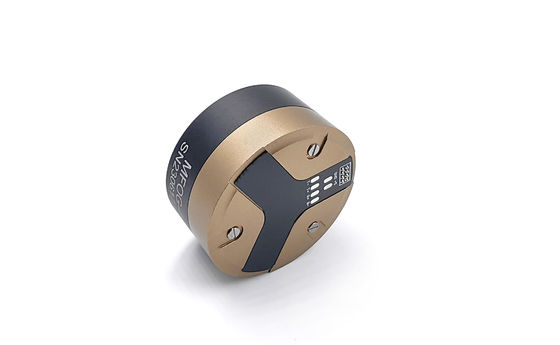

Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform

Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform

Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform

Brand Name:	Firepower
Model Number:	MFOG1703
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	10 pcs/5 months

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Bias Stability:

≤1°/h

Measuring Range:

±150°/s

Dimension:

φ40 × 20mm

Start Time:

3s

Output Drive Voltage:

≥5+0.25V

Connector:

J30J-15TJL/(Customizable)

Packaging Details:

wooden box

Supply Ability:

10 pcs/5 months

Highlight:

Rate Positioning 3 Axis Turntable

,

3 Axis Turntable 30kg

,

30kg Inertial System Test Table

Product Description

Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h^1/2)	≤0.02
6	Zero-bias temperature sensitivity (uV/°C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/°C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power supply (V)	5 ± 0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 × 20

Product Overview

The MFOG-1703 is a high-precision micro-nano fiber optic gyroscope based on the Sagnac effect. It integrates optical, mechanical, and electronic systems to provide accurate angular rate measurement.

Solid-state design with no moving or wearing parts ensures high reliability
Fast startup and excellent resistance to vibration and temperature changes
Compact, lightweight, and low-power design
Ideal for UAVs, vehicles, ships, and aerospace applications
Direct replacement for the Russian Fizoptika VG1703 with improved stability

Additional Specifications

Weight: ≤40g

Operating temperature: -40℃ to +70℃

Storage temperature: -55℃ to +85℃

Random vibration: 20g, frequency range: 20Hz to 2000Hz

Outline Drawing

Fizoptika VG1703 Low Drift Fiber Optic Gyroscope for Stabilization Platform 0
