high accuracy digital display turntable freedom degree turntable rate sway vibration turntable

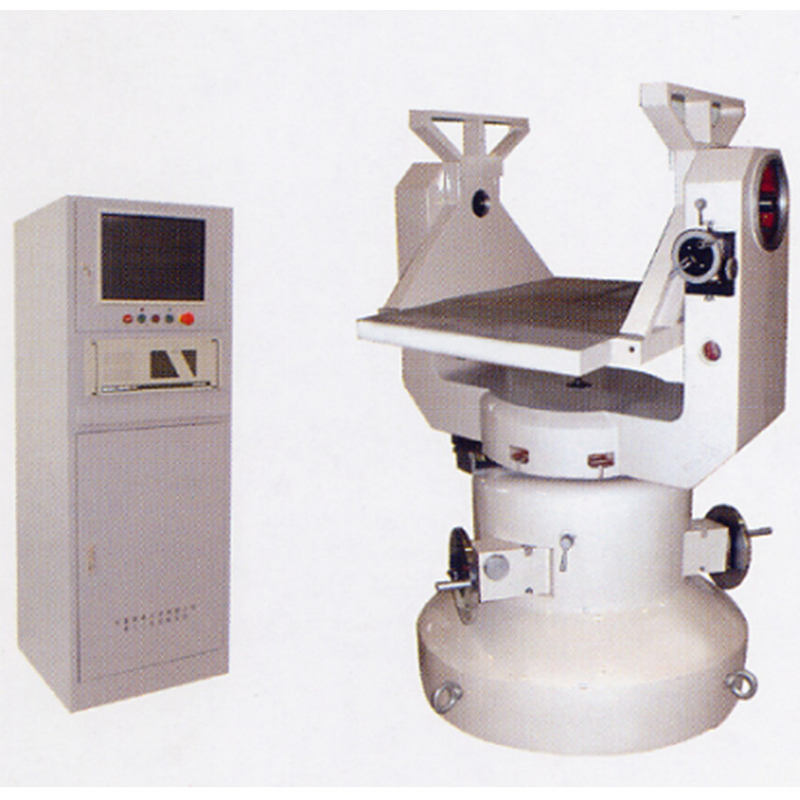

The turntable is a mechanical turntable composed by horizontal rotation and pitch sway freedom degree parts, control device and setting clamp etc. Pitch sway and horizontal rotation parts could work independently and in combination.
horizontal rotation part
| Table facet size | Ø320mm |
| Table facet jerk value | 0.004mm |
| Parallel error between horizontal axis and bottom side | ≤0.006mm |
| Center hole jerk value | 0.006mm/100mm |
| Rotary angle range | ±360° |
| Working mode | power-driven, manual operation |
| Angular rate | 0°/s~2°/s, max 8°/s |
Pitch sway part
| Load capability | 150kg |
| Parallel error between turntable top and bottom side | 0.006mm |
| Parallel error between pitch work platform and horizontal axis | ≤0.01mm |
| Distance between pitch work platform and horizontal axis | 285±1mm |
| Sway range | ±35°~-65° rotary |
| Working mode | manual |
Performance index
| Angular position measure accuracy | ≤±3’’ |
| Angular position measure resolution | ≤1’’ |
| Angular position lock accuracy | ≤2’’ |
