High-Frequency Data Output Inertial Navigation System with 0.1° Heading Accuracy

Name: High-Frequency Data Output Inertial Navigation System with 0.1° Heading Accuracy
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: INS100E
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	INS100E
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000

Detail Information

Product Description

Detail Information

Place of Origin:

China

Heading Accuracy:

0.1°

Heading Holding:

0.2°/min

Attitude Accuracy:

0.1°

Gyro Bias Stability:

4°/h

Acc Bias Stability:

0.2mg

Communication Interface:

RS232 RS422

Size:

80 Mm×53 Mm×23mm

Weight:

≤150g

Packaging Details:

wooden box

Supply Ability:

1000

Highlight:

Digital Display 3 Axis Motion Simulator

3 Axis Motion Simulator High Accuracy

3 Axis Motion Simulator Freedom Degree

Product Description

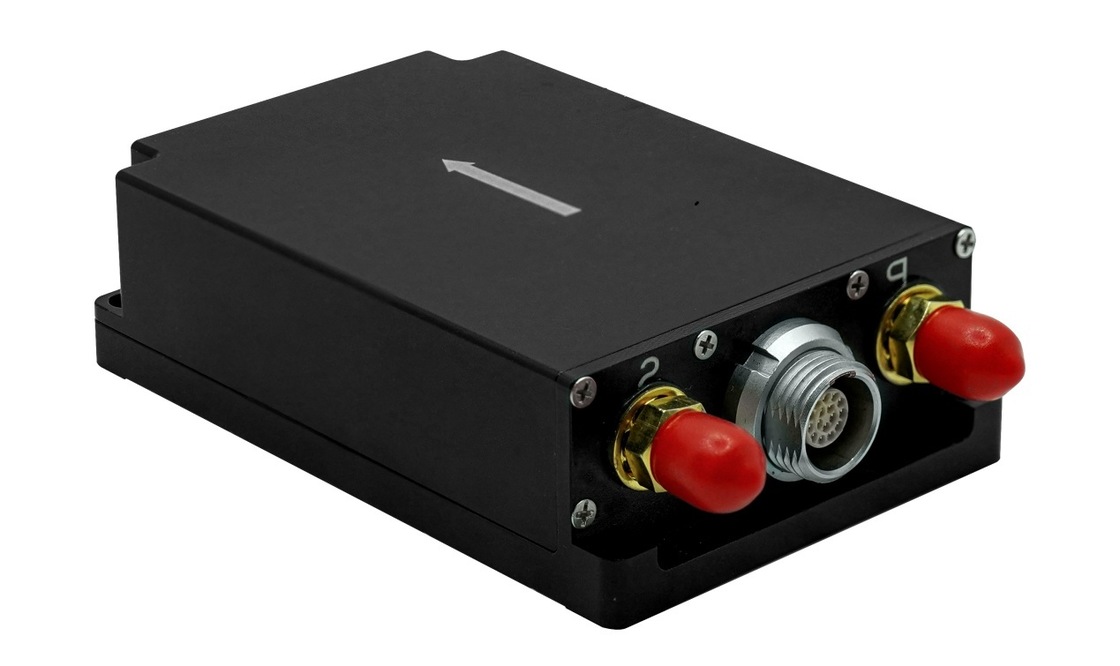

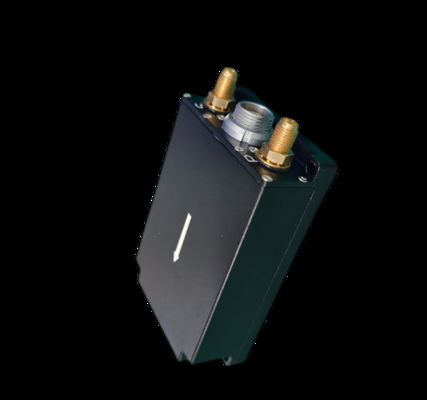

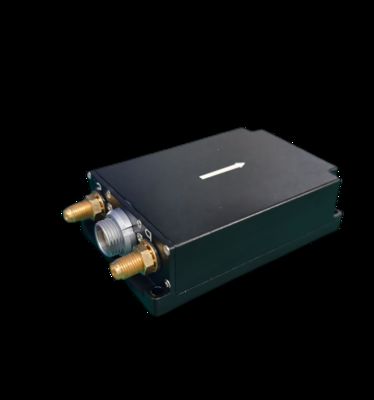

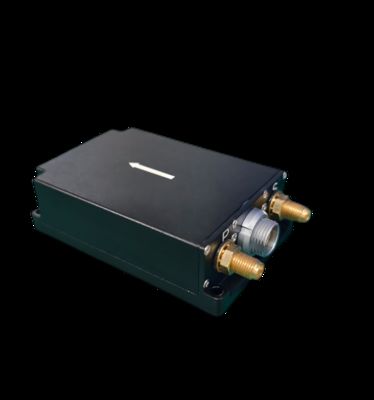

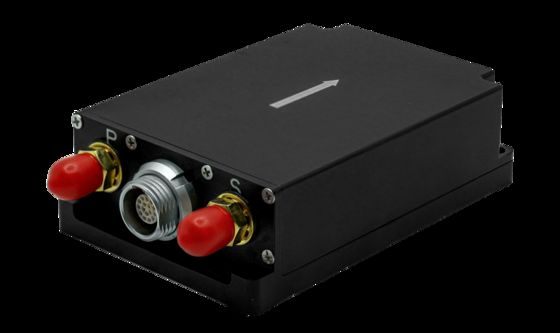

High-Frequency Data Output Inertial Navigation System with 0.1° Heading Accuracy

The INS100E integrated navigation system features built-in high-performance MEMS gyroscope and accelerometer technology. It processes internal GNSS data through advanced multi-sensor fusion and integrated navigation solution algorithms, maintaining short-term inertial navigation capability during GNSS signal loss.

Engineered for high reliability and exceptional environmental adaptability, this system supports diverse applications including industrial unmanned vehicles, marine vessels, communication in motion, mapping, and stabilization platforms through customizable software configurations.

Key Functions

Integrated navigation using internal satellite navigation data
Outputs pitch, roll, heading, position, velocity, and time data
Maintains inertial navigation output during GNSS signal loss
Short-term accuracy maintenance function

Performance Specifications

Parameter	Specification (RMS)	Notes
Heading accuracy	0.1°	GNSS valid
Heading holding	0.2°/min	GNSS failure
Attitude accuracy	0.1°	GNSS valid (L1/L2, RTK)
Attitude holding	0.2°/min	GNSS failure
Positioning accuracy (Horizontal)	1.5m; 1cm+1ppm	Single point L1/L2; Differential
Positioning accuracy (Elevation)	2.5m; 2cm+1ppm	Single point L1/L2; Differential
Position holding	20m	GNSS failure (60s)
Horizontal velocity accuracy	0.1m/s	GNSS valid (L1/L2, RTK)
Gyroscope range	±500°/s
Gyroscope zero bias stability	4°/h	Allan variance
Accelerometer range	±16g	Customizable to 200g
Accelerometer zero bias stability	0.2mg	Allan variance
Satellite cold start	<30 seconds	Open environment
Satellite hot start	5 seconds	Open environment

Technical Specifications

Category	Specification
Receiver Type	BDS B1I/B2I/B3I, GPS L1C/A/L2P(Y)/L2C/L5, GLONASS G1/G2, Galileo E1/E5a/E5b, QZSS L1/L2/L5
Communication Interfaces	2RS232, 1RS422
Voltage Input	9-36VDC
Power Consumption	≤3W

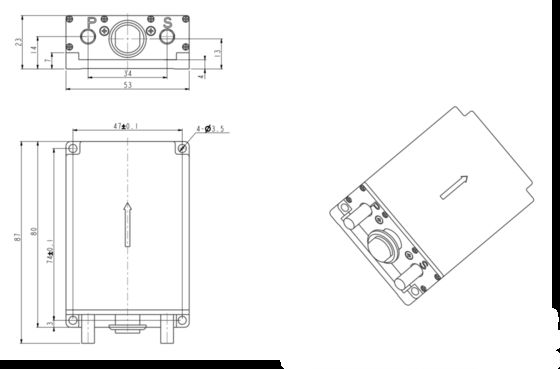

Dimensions	80mm * 53mm * 23mm
Weight	≤150g
Operating Temperature	-40℃ to +60℃
Storage Temperature	-45℃ to +65℃
Vibration Resistance	20-2000Hz, 6.06g
Impact Resistance	30g, 11ms
Protection Rating	IP65
MTBF	30,000 hours
Service Life	>15 years

Note: GNSS validity requires 2m baseline of dual antenna or dynamic alignment of single antenna.
