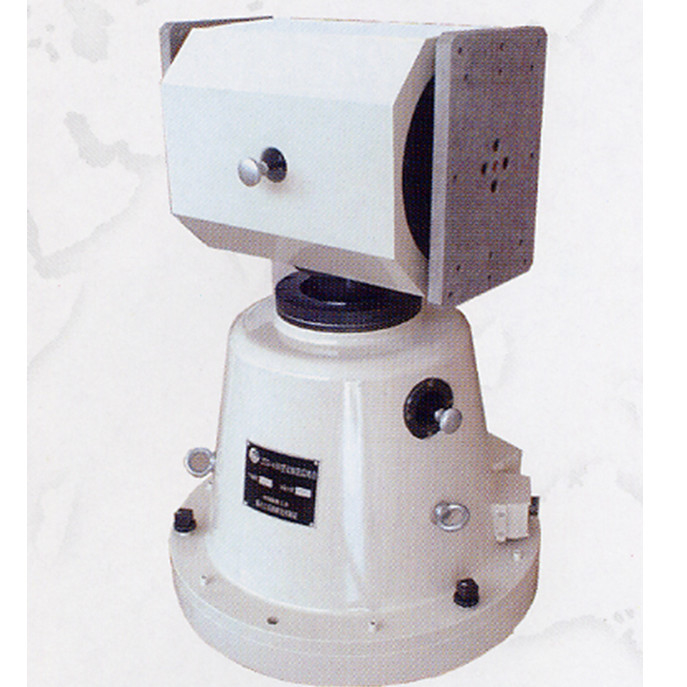

Dual axis servo tracking turntable positioning, rate and servo tracking camera servo tracking target test
Both two axis of it have the function of positioning, rate and servo tracking. It is applied to camera servo tracking target test. Both axis of the turntable have the mechanical locking device. It has function of over-rate, over-heat, power failure, position limitation protection, emergency brake.
General features
| Load capacity | 40kg |
| Rotary angle range |
Heading angle : continuous Pitch angle: +85°~-30° |
| Slip rings | 40 rings |
| Control ways | Close and remote control |
| Computer interface | RS232 |
Performance index
| Angular position measure accuracy | ±0.5’ |
| Angular position measure resolution | 0.3’ |
| Angular position measure repeatability | ±0.5’ |
| rate range | Both axis: 0.1°/s~±50°/s |
| rate accuracy and flatness | 50ppm (360° interval) |
| Max acceleration | 90°/s2 for both axis |
| Control system bandwidth | 4Hz |
