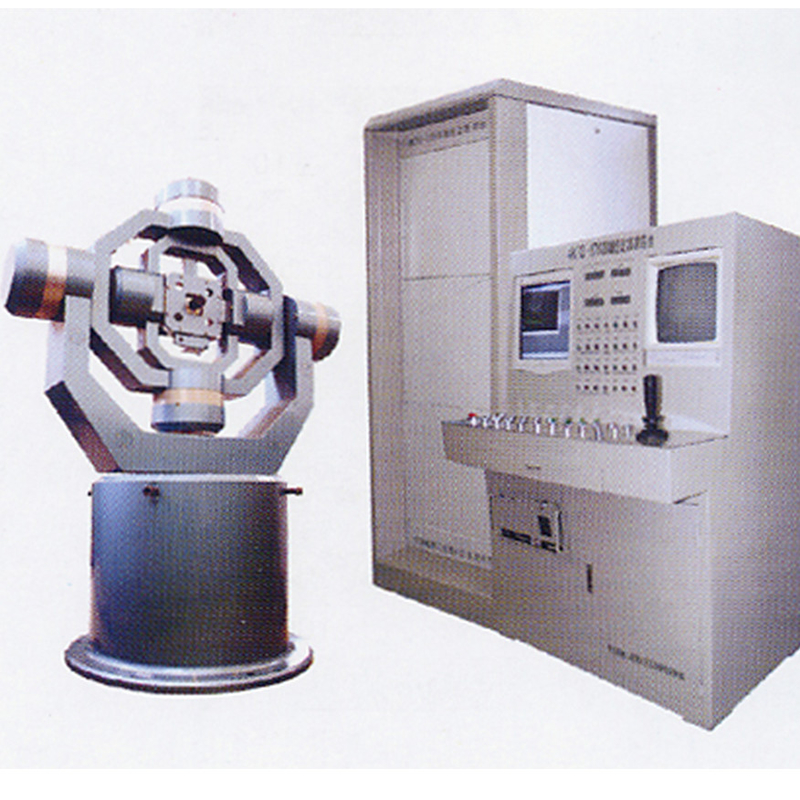

Four axis servo turntable
Main functions:
1, work mode: position, servo, tracking
2, control function: servo control system could realize automatically the stability of turntable and tracking function.
3, multiple control ways: PC control (remote control); control cabinet control.
4, communication function: by standard interface, it could realize the communication and data exchange between upper computer and control cabinet, and turntable control and working status monitor.
5, display function: display the angular position of four shafting in real time on control cabinet.
6, self-detect function: automatic tour-inspection of the working performance and status signal of changeable unit or module, mainly include secondary power source, tracker position, servo motor current, gyroscope status and so on.
|
item parameter parameter |
Technical index | ||
| heading | pitch | ||
| Angular speed(°/s) | Base frame | 50 | 50 |
| Load frame | 40 | 40 | |
| Angular acceleration(°/s2) | Base frame | 50 | 50 |
| Load frame | 40 | 40 | |
| Positioning accuracy(°) | Base frame | 0.05 | 0.05 |
| Load frame | 0.04 | 0.04 | |
| Rotary angle range(°) | Base frame | 0~360 | -20~+70 |
| Load frame | ±70 | -20~+70 | |
| load | 3kg | ||
| Process time | 0.03s | ||
| Max overshoot | 15% | ||
| Oscillation times | <1.5 times | ||
| Stable isolation accuracy | <0.2° | ||
