Industrial Grade Inertial Navigation System for Robotics

Name: Industrial Grade Inertial Navigation System for Robotics
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: INS100E
Price: 5,000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	INS100E
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Heading Accuracy:

0.1°

Attitude Accuracy:

0.1°

Positioning Accuracy:

1.5m；1cm+1ppm

Horizontal Velocity Accuracy:

0.1m/s

Gyroscope Range:

±500°/s

Zero Bias Stability:

4°/h

Accelerometer Range:

±16g

Communication Interface:

RS232/ RS422

Packaging Details:

wooden box

Supply Ability:

1000pcs

Highlight:

Four Axis 3 Axis Turntable

3 Axis Turntable High Precision

3 Axis Turntable Multiple Control

Product Description

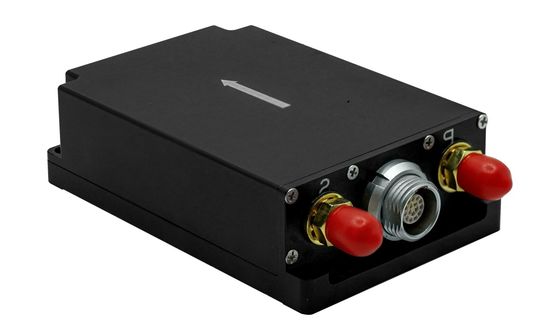

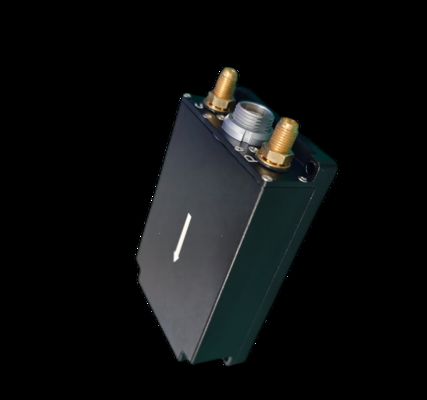

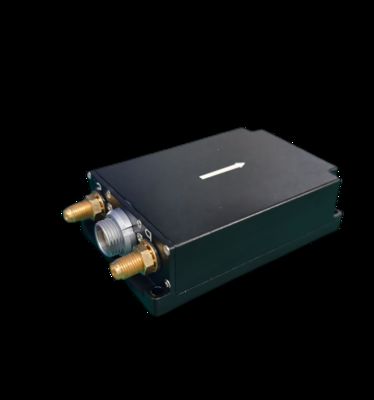

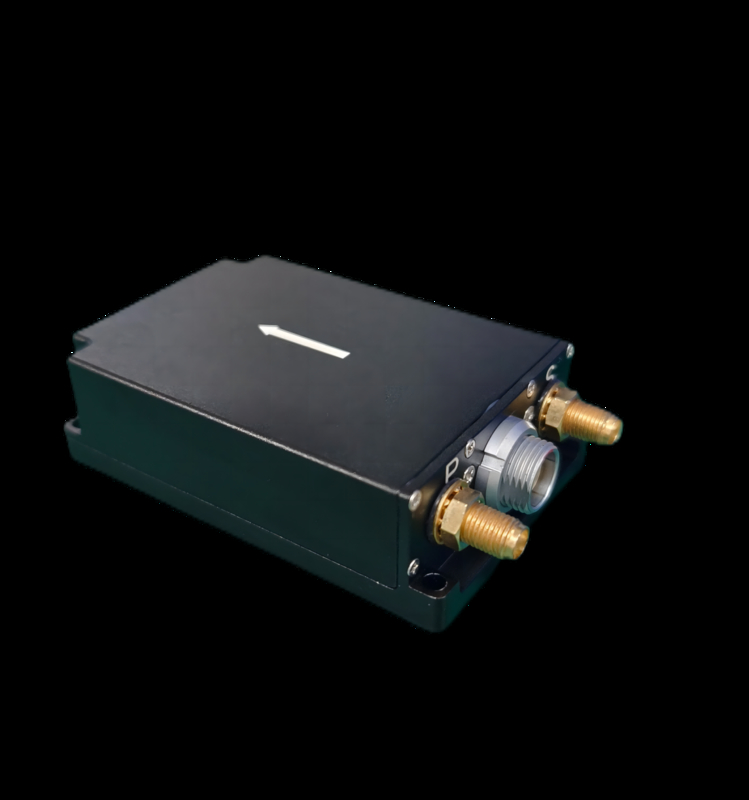

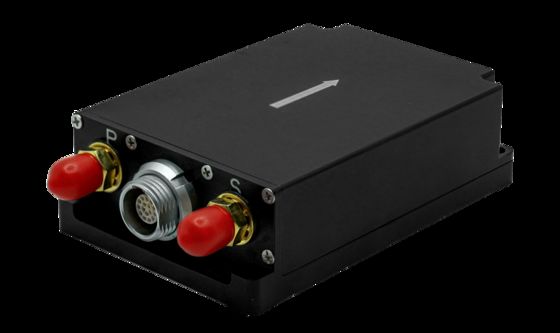

Industrial Grade Inertial Navigation System for Robotics

Overview

The INS100E integrated navigation system features a high-performance MEMS gyroscope and accelerometer, capable of receiving internal GNSS data for multi-sensor fusion and integrated navigation solutions. The system maintains short-term inertial navigation capability during GNSS outages.

With high reliability and strong environmental adaptability, this product can be configured with different software for various applications including industrial unmanned vehicles, drones, marine vessels, communication in motion, mapping, and stabilization platforms.

Main Functions

Performs integrated navigation using internal satellite navigation data
Outputs carrier pitch, roll, heading, position, velocity, and time information
Maintains inertial navigation output during satellite signal loss
Provides short-term navigation accuracy maintenance

Performance Specifications

Project	Metrics (RMS)	Remark
Heading accuracy	0.1°	GNSS valid
Heading holding	0.2°/min	GNSS failure
Attitude accuracy	0.1°	GNSS valid (Single-point L1/L2, RTK)
Attitude holding	0.2°/min	GNSS failure
Positioning accuracy (Horizontal)	1.5m; 1cm+1ppm	GNSS valid; RTK (Single point L1/L2; Differential)
Positioning accuracy (Elevation)	2.5m; 2cm+1ppm	GNSS valid; RTK (Single point L1/L2; Differential)
Position holding	20m	GNSS failure (Unlocked for 60s)
Horizontal velocity accuracy	0.1m/s	GNSS valid (Single-point L1/L2, RTK)
Gyroscope measuring range	±500°/s
Gyroscope zero bias stability	4°/h	Allan variance
Accelerometer measuring range	±16g	Customizable to 200g
Accelerometer zero bias stability	0.2mg	Allan variance
Satellite board cold start	<30 seconds	Open environment
Satellite board hot start	5 seconds	Open environment
Receiver types	BDS B1I/B2I/B3I, GPS L1C/A/L2P(Y)/L2C/L5, GLONASS G1/G2, Galileo E1/E5a/E5b, QZSS L1/L2/L5

Technical Specifications

Category	Specification
Communication interface	RS232 (2 routes), RS422 (1 route)
Voltage	9-36VDC
Power consumption	≤3W
Ripple	100 mV (P-P)

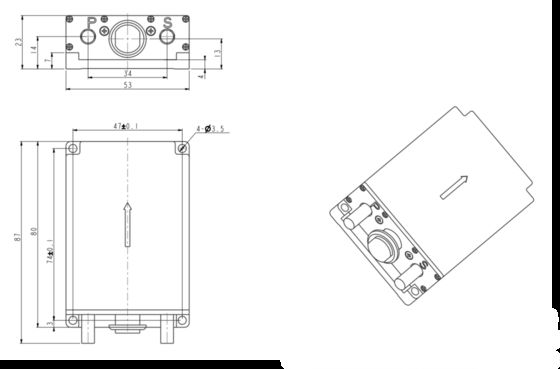

Dimensions	80mm × 53mm × 23mm
Weight	≤150g
Operating temperature	-40℃ to +60℃
Storage temperature	-45℃ to +65℃
Vibration resistance	20-2000Hz, 6.06g
Impact resistance	30g, 11ms
Protection rating	IP65
MTBF	30,000 hours
Service life	>15 years
Continuous operation	>24 hours

Note: Effective 2m baseline of dual antenna, or dynamic alignment of single antenna Industrial Grade Inertial Navigation System for Robotics 0
