7Hz Accelerometer Test Equipment Position Rate Angular Motion Simulator

1
MOQ

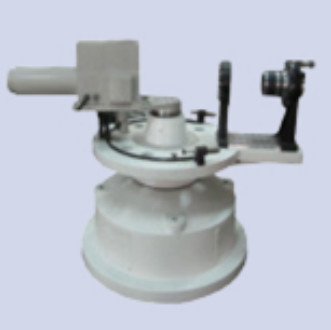

7Hz Accelerometer Test Equipment Position Rate Angular Motion Simulator
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Rate Position Angular Motion Simulator
Load Capacity: 60kg
Table Facet Size: 500 X 300 X 600mm
Position Resolution: ~0.36''
Bandwidth: 7Hz
Table Weight: 1100kg
Table Dimension: 1100 X 900mm
Highlight:

7Hz Accelerometer Test Equipment

,

Accelerometer Test Equipment Position Rate

,

Position Rate Angular Motion Simulator

Basic Infomation
Place of Origin: China
Brand Name: Firepower
Model Number: TEK2101
Payment & Shipping Terms
Packaging Details: wooden carton
Delivery Time: 5 months
Payment Terms: L/C, T/T
Supply Ability: 10/ 3months
Product Description

motion simulator precise angular position rate acceleration test equipment



Motion simulator is a kind of precise testing equipment, which can provide angular position, rate and acceleration in
more than two directions in order to simulate the motion of carriers or targets in more than two directions. The motion
simulator is widely used in the hardware in the loop simulation to test the performance of missiles and seekers. Seeker
testing turntable is suitable for the characterization and calibration of seekers by providing relative motion between the
seeker and the target simulators.
Control System: High performance control unit, High precision angular measurement system, PWM digital servo
amplifier, Direct drive servo motor, etc.
Key Components: Bearing, Driving motor, Power amplifier, Encoder, AD/DA card, etc. (Adopt high performance
series products).
Structure Type: Two-axis, Three-axis, Five-axis, etc.
Product category: Two-axis motion simulator, Two-axis target motion simulator, Spherical target motion simula-
tor, Three-axis flight motion simulator, Five-axis flight motion simulator.



Main technical parameters

function rate, position
max payload weight 60kg
position range 110deg

position accuracy

~30''
position resolution ~0.36''
rate range 0.01~200°/s
rate stability 1 x 10-2~1 x 10-4
rate resolution ~0.001°/s
