Fiber Optic Gyro Integrated with Inertial Measurement Unit for Gimbal

Name: Fiber Optic Gyro Integrated with Inertial Measurement Unit for Gimbal
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product:

Inertial Gyro Sensor

Bias Stability:

1°/h

Bias Repeatability:

1°/h

Angle Random Walk:

0.02°/√h

Maximum Angular Rate:

±350°/s

Dimension:

60 Mm × 60 Mm × 17 Mm

Packaging Details:

wooden carton

Supply Ability:

1000/month

Highlight:

7Hz Accelerometer Test Equipment

Accelerometer Test Equipment Position Rate

Position Rate Angular Motion Simulator

Product Description

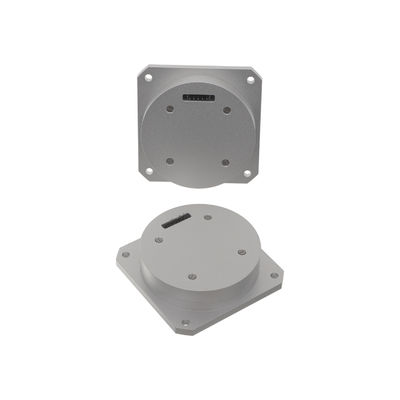

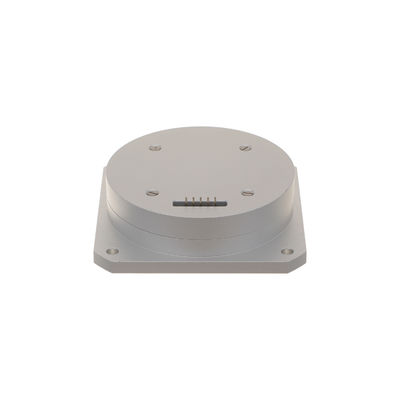

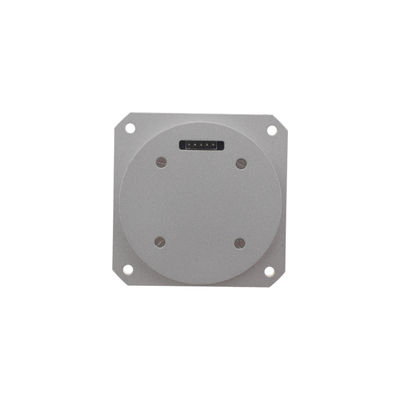

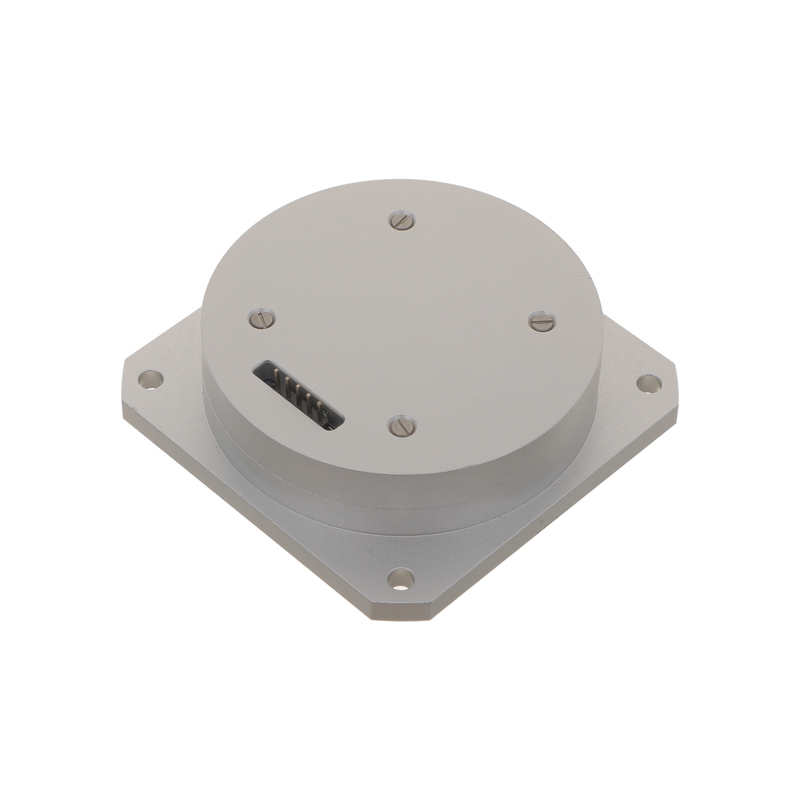

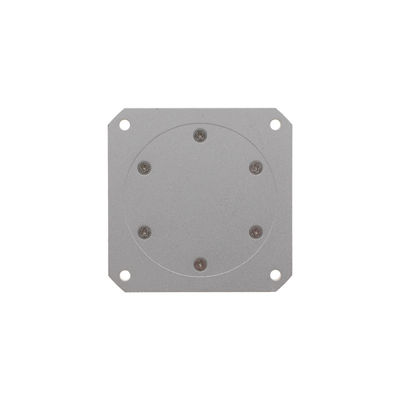

Fiber Optic Gyro Integrated with Inertial Measurement Unit for Gimbal

The MFOG-103 Fiber Optic Gyroscope utilizes the Sagnac effect to deliver precise rotation measurements. Its micro-nano fiber design ensures high stability, fast startup, and low noise performance.

Key Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/ o /s)	6±0.6
3	Zero-bias stability (10s, 1σ, o /H)	≤1
4	Zero-bias repeatability (1σ, o /H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Product Features

Compact and durable design (60×60×17mm, ≤80g)
Reliable performance across extreme temperatures (-40℃ to +70℃)
Resistant to 20g random vibration
Ideal for UAVs, vehicles, aerospace, and defense applications
Seamless replacement for Fizoptika VG103 in advanced navigation systems

Installation Surface
