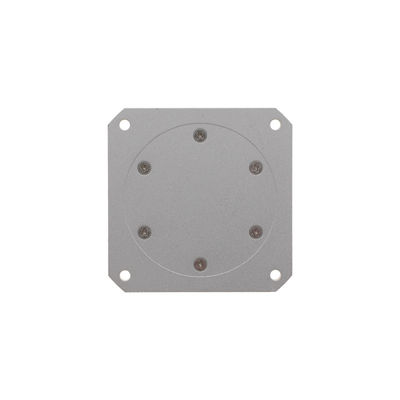

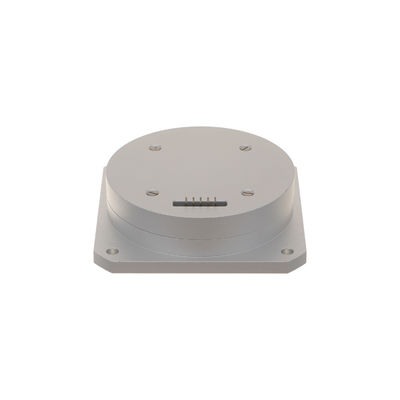

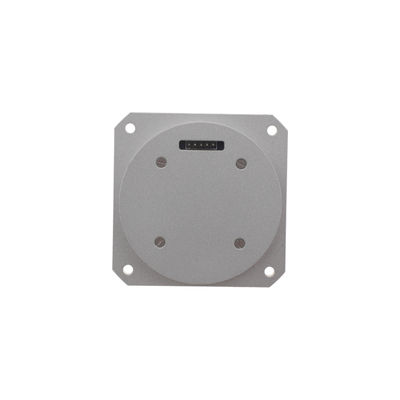

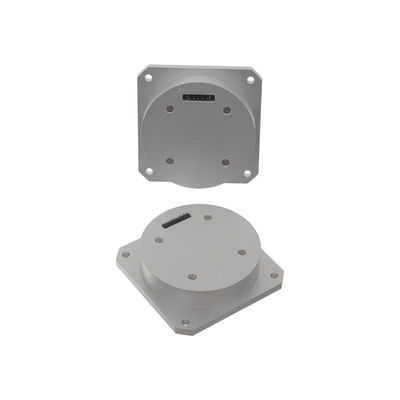

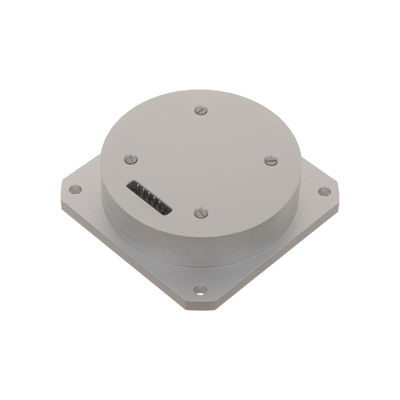

High Performance Fiber Optic Gyro Fast Shipping for True North Seeking

High Performance Fiber Optic Gyro Fast Shipping for True North Seeking

High Performance Fiber Optic Gyro Fast Shipping for True North Seeking

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Range:

±350 °/s

Bias Repeatability:

≤1°/h

Bias Stability:

≤1°/h

Random Walk:

≤0.02°/h

Supply Voltage:

+5V

Work Temp:

-40~+60℃

Connector:

Soldering Pin/ Pad

Overall Dimensions:

60 Mm × 60 Mm × 17 Mm

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

30kg Load Dual Axis Turntable

,

Dual Axis Turntable RS232

,

RS232 Angular Rate Motion Simulator

Product Description

High Performance Fiber Optic Gyro Fast Shipping for True North Seeking

Product Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/ o /s)	6±0.6
3	Zero-bias stability (10s, 1σ, o /H)	≤1
4	Zero-bias repeatability (1σ, o /H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Product Overview

FizoptikaVG103 Micro-Nano Fiber Optic Gyroscope - A reliable angular rate sensor with strong environmental adaptability. This integrated solution combines optics, mechanics, and electronics, utilizing the Sagnac effect for precise measurements.

Key Features

Compact dimensions: 60mm*60mm*17mm (with flange, without plug)
Lightweight design: ≤80g
Wide operating temperature range: -40℃ to +70℃
Extended storage temperature: -55℃ to +85℃
Robust vibration resistance: 20g (20Hz~2000Hz)
No moving parts for enhanced reliability
Fast start-up time
Ideal for carrier attitude measurement applications

Installation

High Performance Fiber Optic Gyro Fast Shipping for True North Seeking 0
