Manual Accelerometer Test Equipment Position Two Axis Turntable

1
MOQ
Manual Accelerometer Test Equipment Position Two Axis Turntable
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Dual Axis Position Turntable
Load Capacity: 50kg
Tested Object Size: Ø80 X 240mm
Table Facet Flatness: 0.01mm
Table Facet Jerk Value: 0.03mm
Wobble Error: Inner Loop: ±2’’ Outer Loop: ±3’’
High Light:

Manual Accelerometer Test Equipment

,

Accelerometer Test Equipment Two Axis

,

Position Two Axis Turntable

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 2ST-520
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 5 month
Payment Terms: T/T, L/C
Supply Ability: 10 set/6 months
Product Description

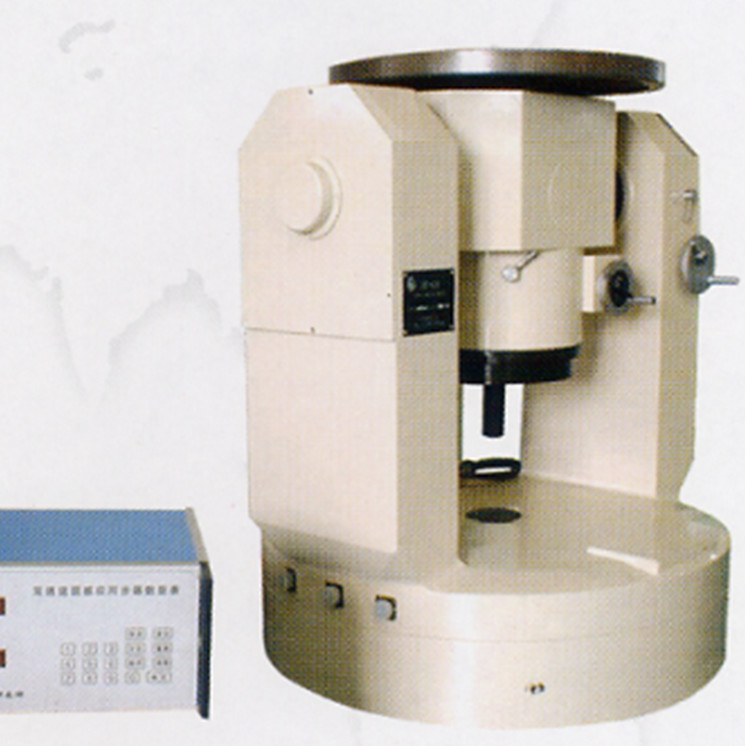

Dual axis manual position turntable, pilot wheel driving test equipment, test and calibration of GPS positioning system



2ST-520 is dual axis facet type pilot driving digital display positioning turntable. It adopts new mechanical structure to facilitate the position micro-adjustment, it is of high accuracy, wide application, convenient usage, low cost, etc. It is suitable for the test and calibration of inertial navigation system and device.



Specifications



items 2ST-520 Dual axis manual operation
Load capacity 50kg 40kg
Max tested object size Ø80 x 240mm Ø420 x 200mm
Table facet diameter Ø520mm Ø460mm
Table facet flatness 0.01mm 0.01mm
Table facet jerk value 0.03mm 0.03mm
Table facet material 1cr18Ni9Ti casting
wobble error

Inner loop: ±2’’

Outer loop: ±3’’

±2’’
Axes perpendicularity ±3’’ ±3’’
Rotary angle range

Inner loop: continuous

Outer loop: ±90°

Inner loop: continuous

Outer loop: ±90°

Heading adjustment range ±2’’
Working mode position position
Machine body weight About 700kg
Outline size Appr 850 x 650 x 900mm
Slip rings 40 rings 8 rings x 2A
Computer port RS232 RS232
Angular position measure accuracy(inner loop) ±4’’ ±3’’
Angular position measure accuracy(outer loop) ±5’’ ±5’’
Angular position measure resolution(inner loop) 0.36’’ 0.36’’
Angular position measure resolution(outer loop) 0.36’’ 0.36’’
Angular position measure repeatibility(inner loop) ±2″
Angular position measure repeatibility(outer loop) ±3″
