Fiber Optic Gyro FOG IMU for Navigation and Orientation

Name: Fiber Optic Gyro FOG IMU for Navigation and Orientation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Range:

±350°/s

Zero-bias Stability:

≤1°/h

Zero-bias Repeatability:

≤1°/h

3dB Bandwidth:

≥1000Hz

Random Walk:

≤0.02°/h

Impact:

≥1500g

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Manual Accelerometer Test Equipment

Accelerometer Test Equipment Two Axis

Position Two Axis Turntable

Product Description

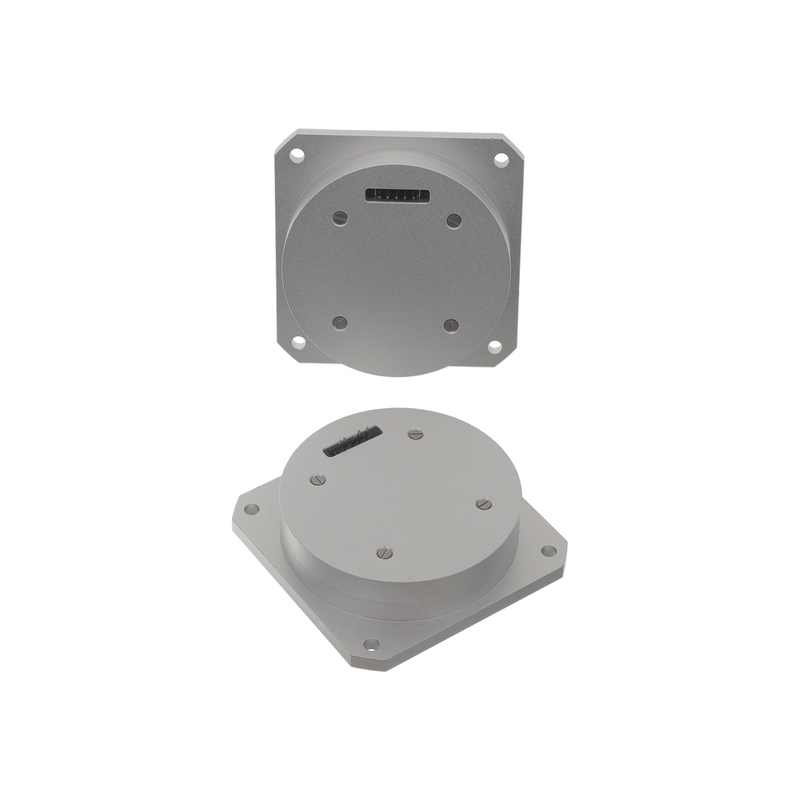

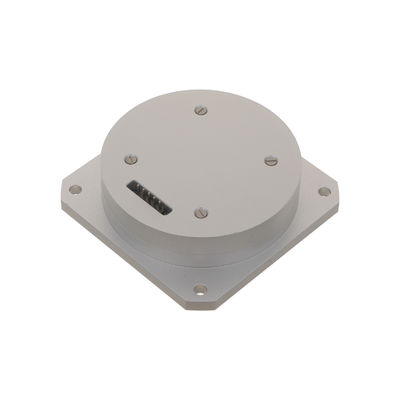

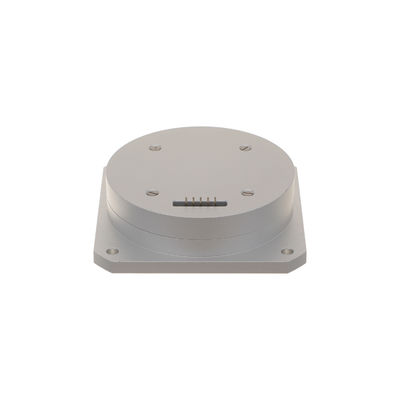

Fiber Optic Gyro FOG IMU for Navigation and Orientation

The MFOG-103 Fiber Optic Gyroscope delivers high accuracy and long-term reliability for motion sensing and attitude control. Utilizing the Sagnac effect and advanced micro-nano optical components, it ensures low drift, fast response, and zero mechanical wear.

Technical Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/ o /s)	6±0.6
3	Zero-bias stability (10s, 1σ, o /H)	≤1
4	Zero-bias repeatability (1σ, o /H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Key Features

Compact FOG sensor (60*60*17mm, ≤80g)
Operating temperature range: -40℃ to +70℃
Tolerates 20g random vibration
Ideal for UAVs, aerospace, and defense navigation systems
Cost-effective high-performance replacement for Fizoptika VG103

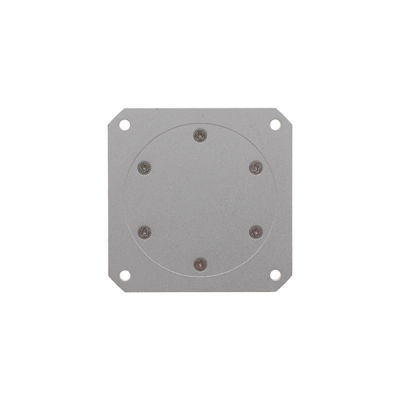

Installation Surface
