Micro-Nano Fiber Optic Gyroscope Rate Sensor for Rail Transportation

Brand Name:	Firepower
MOQ:	1
Payment Terms:	L/C,T/T
Supply Ability:	1000pcs

Detail Information

Product Description

Detail Information

Place of Origin:

China

Random Walk Cefficient:

≤0.02°/√h

Zero Bias Stability:

≤ 1º/h

Range:

±150 °/s

Output Mode:

Analog Voltage

Power Supply:

Reliability:

High

Band Width:

450Hz

Dimension:

φ40 × 20mm

Packaging Details:

wooden box

Supply Ability:

1000pcs

Highlight:

Tilting Type 2 Axis Turntable

2 Axis Turntable Facet Type

2 Axis Turntable Stainless Steel

Product Description

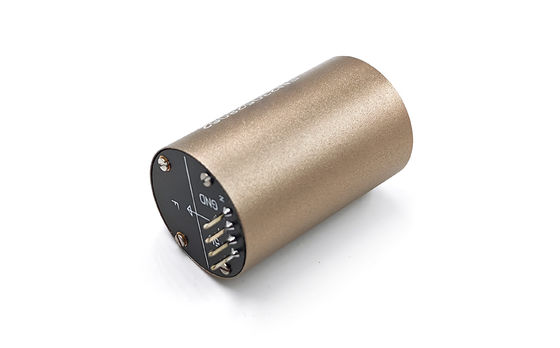

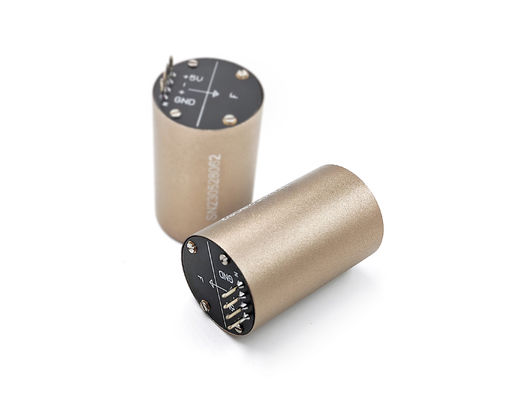

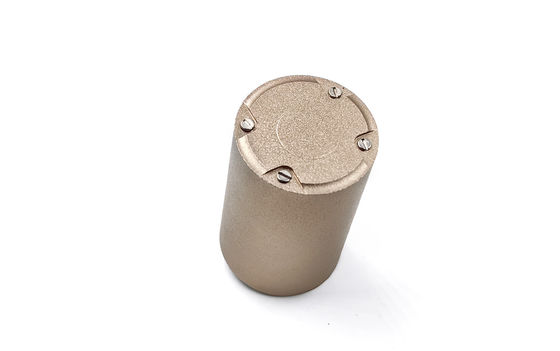

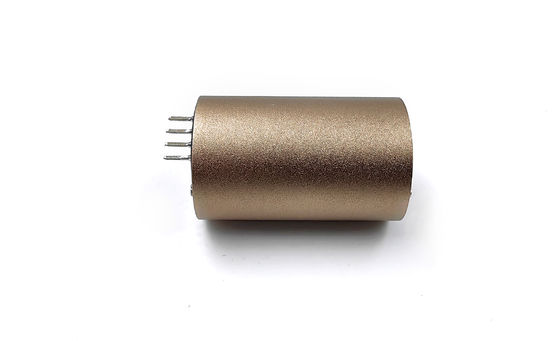

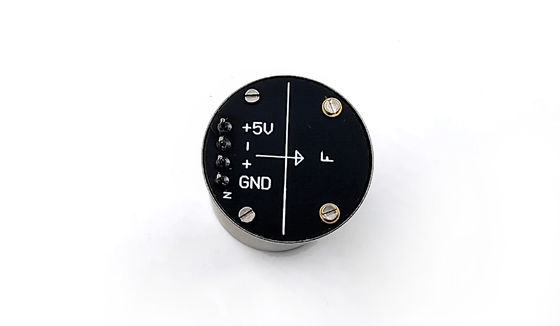

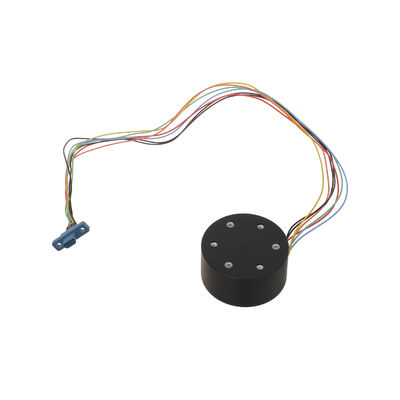

Micro-Nano Fiber Optic Gyroscope Rate Sensor for Rail Transportation

The Fizoptika1703 Micro-Nano Fiber Optic Gyro is an advanced angular rate sensor integrating optics, mechanics, and electronics. Utilizing the Sagnac effect, it precisely detects, processes, and feeds back phase differences of counter-propagating light. Core components include optical path assembly, detection & control signal circuit board, and structural parts. Key features: simple structure, no moving/wear parts, fast startup, compact size, and lightweight design. Ideal for carrier attitude control and measurement applications.

Key Specifications

Weight: ≤40g
Operating Temperature: -40℃ to +70℃
Storage Temperature: -55℃ to +85℃
Random Vibration: 20g, frequency range: 20Hz to 2000Hz

Performance Parameters

Serial Number	Project	Performance Indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h^1/2)	≤0.02
6	Zero-bias temperature sensitivity (uV/°C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/°C)	≤300
8	3dB Bandwidth (Hz)	≥450
9	Impact (g)	1200, 1ms, half sine
10	Power supply (V)	5 ±0.25
11	Power Consumption (W)	≤1
12	Dimension (mm)	φ40 × 20

Dimensions
