Angular Rate Sensor Large Fork-Lift

Name: Angular Rate Sensor Large Fork-Lift
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Price:	1217 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±350°/S

Scale Factor:

6±0.6mv/°/S

Zero-Bias Stability:

≤1°/H, 10s, 1σ

Zero Bias Repeatability:

≤1°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

≤1W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

Rate Positioning Turntable Dual Axis

Rate Positioning Turntable 3''

Product Description

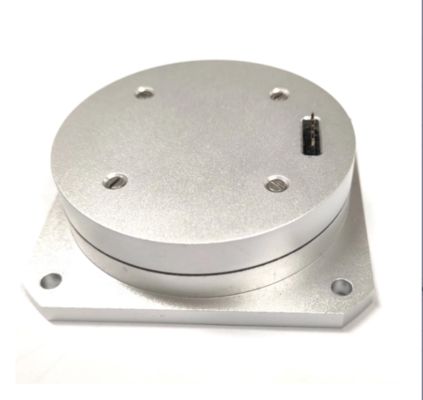

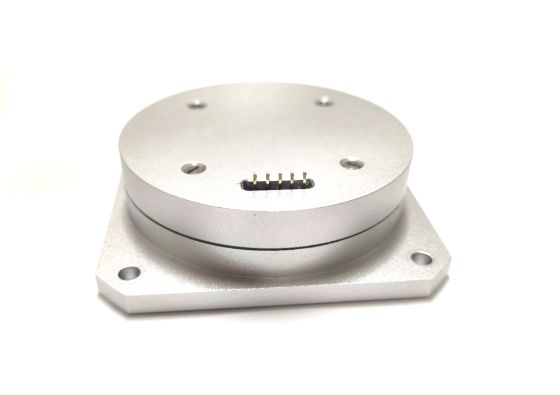

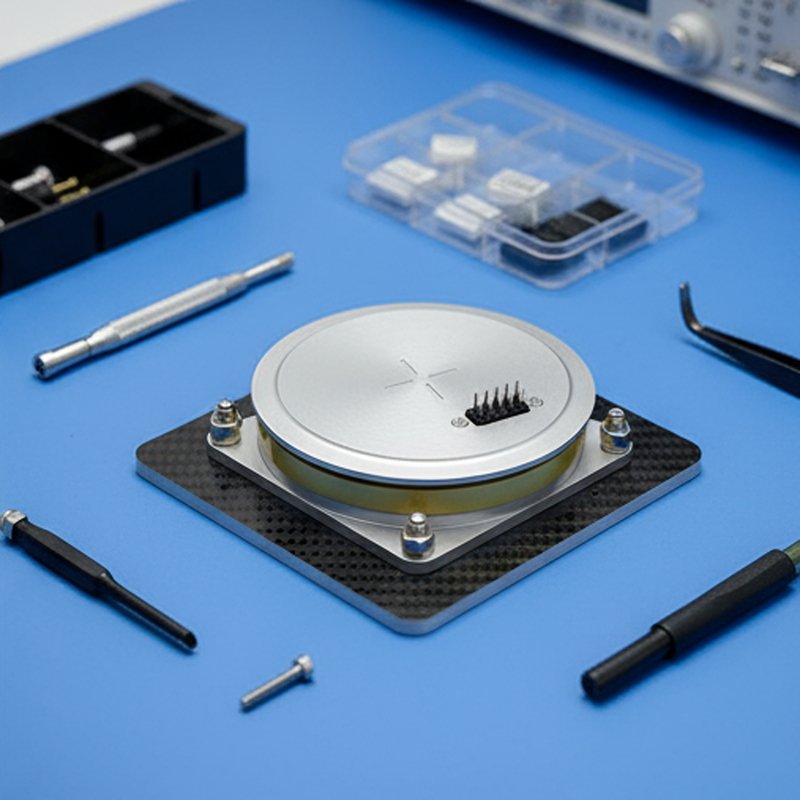

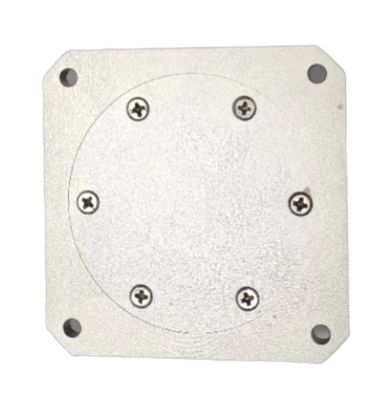

Angular Rate Sensor Large Fork-Lift

Product Description

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences generated by counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features a simple structure with no moving or wear parts. It offers fast startup, compact size, and lightweight design, making it ideal for attitude control and measurement applications in various carriers.

Technical Parameters

Project	Performance indicators
Range (°/s)	±350
Scale factor (mV/°/s)	6±0.6
Zero-bias stability (10s, 1σ, °/H)	≤1
Zero-bias repeatability (1σ, °/H)	≤1
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25
Power Consumption (W)	≤1
Impact (g)	≥1500
Acceleration (g)	≥70
Service Life (years) (calculated assessment)	≥15
MTBF (Calculated Assessment)	≥100000

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven company, Firepower possesses China's leading production capabilities for inertial navigation and communication products. Our core array algorithm technology enables development of autonomous navigation products with independent intellectual property rights, widely applied in civilian vehicle and ship navigation systems.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control: 1) Production according to technical requirements; 2) Comprehensive testing; 3) Professional QA/QC team oversight.

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer requirements.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other delivery terms for your convenience.

Q: What is the payment way?

A: We accept TT, L/C, Pay later, West Union, and Online Bank Payment.

Q: What is warranty?

A: Standard warranty is 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge; batch orders use wooden boxes.

Q: What is final price?

A: Standard products follow price table; customized products require quotation based on specifications and quantity.

Q: How to choose product?

A: Options: 1) Select from standard products; 2) Modify standard specifications; 3) Provide complete technical requirements; 4) Describe application for product recommendation.
