dual axis rate positioning turntable high dynamic motion simulators

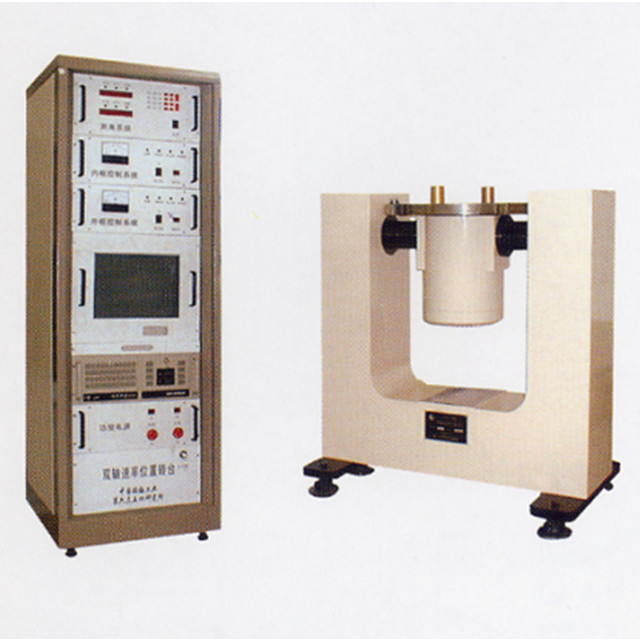

2ST-550T dual axis rate positioning turntable is dual axis table facet type mechanical shaft test equipment, it could calibrate and test all kinds of 2D inertial components and parts. Computer could control, gather data, process, display, print...automatic control and test are realized.
General features
| Load capacity | 25kg |
| Table facet diameter | Ø550mm |
| Rotary accuracy | ±3’’ |
| wobble error |
Main axis: continuous Pitch axis: ±150° |
| Axes perpendicularity | 3’’ |
| Working mode | Automatic |
| Computer interface port | RS232/RS422 |
Specifications
| Angular position measure accuracy | ±3’’ |
| Angular position measure resolution | 0.36’’ |
| Angular position control accuracy | 2’’ |
| Control resolution | 0.0001° |
| rate range | ±0.001°/s~±200°/s |
| rate accuracy and smoothness | 1x10-4(360° interval) |
| rate resolution | 0.0001°/s |
| Max dual axis linkage rate | 60°/s |
| Sway frequency(dual axis) | 5Hz(5kg load) |
| Sway amplitude(dual axis) | 0.5° |
| Waveform distortion | 3% |
