Medium Accuracy Micro-Nano Fiber Optic Gyro with Shock Resistance

Name: Medium Accuracy Micro-Nano Fiber Optic Gyro with Shock Resistance
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-1703
Price: 1317 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Price:	1317 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±300°/S

Scale Factor:

3600lsb/°/S

Scale Factor Nonlinearity:

≤500ppm

Zero-Bias Stability:

≤1°/H, 10s, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

1'' 2 Axis Turntable

Simulating Rate 2 Axis Turntable

Product Description

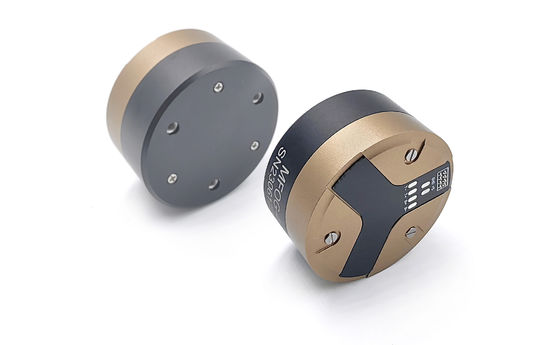

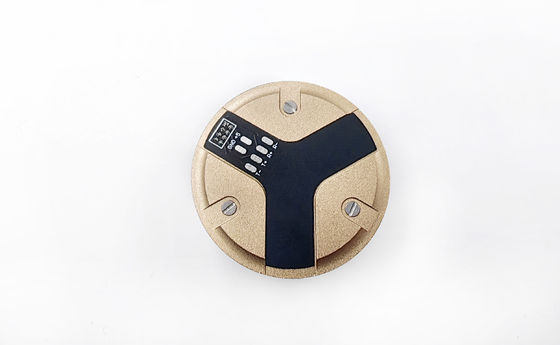

Medium Accuracy Micro-Nano Fiber Optic Gyro with Shock Resistance

Product Description

The MFOG-1703 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference generated by counter-propagating light beams.

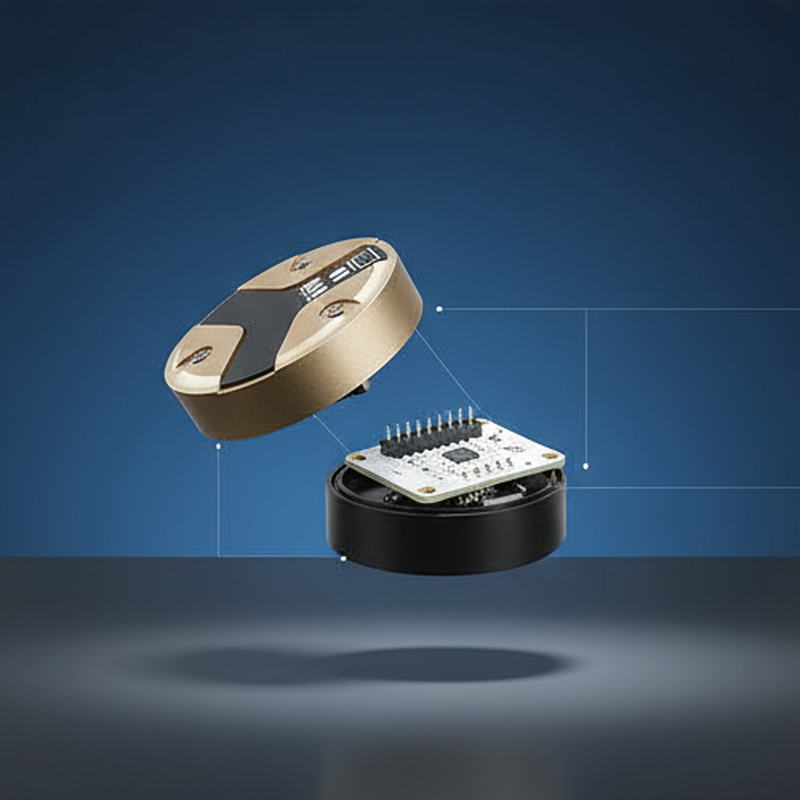

This product consists of optical path components, circuit components, and structural components. It features a simple design with no moving or wear parts, fast startup, compact size, and lightweight construction. Ideal for attitude control and measurement applications in various carriers.

Technical Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/ o /s)	12±1.2
3	Zero-bias stability (10s, 1σ, °/h)	≤1
4	Zero-bias repeatability (1σ, °/h)	≤1
5	Angular random walk (°/h 1/2 )	≤0.02
6	Zero-bias temperature sensitivity (uV/° C)	≤1
7	Scale Factor Temperature Sensitivity (ppm/° C)	≤300
8	3dB Bandwidth (Hz)	≥450

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We prioritize quality control throughout production: strict adherence to technical requirements, comprehensive testing, and professional QA/QC oversight.

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other standard delivery terms.

Q: What is the payment way?

A: We accept TT, L/C, Pay later, West Union, and Online Bank Payment.

Q: What is warranty?

A: Standard warranty is 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge; batch orders use wooden boxes.

Q: How to choose product?

A: We offer standard products or customized solutions. Customers can select from our catalog, specify technical requirements, or consult our sales team for application-specific recommendations.
