Micro-nano Fiber Optic Gyro for High-precision Pan-tilt Head

Name: Micro-nano Fiber Optic Gyro for High-precision Pan-tilt Head
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Price:	1217
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

350°/s

Scale Factor:

6±0.6mV/°/s

Zero Bias Stability:

≤1°/H, 10s, 1σ

Zero Bias Repeatability:

≤1°/H, 1σ

Power Supply:

5±0.25V

Power Consumption:

≤1W

Packaging Details:

Sponge&Box

Supply Ability:

100pcs

Highlight:

360 Degree 1 Axis Turntable

1 Axis Turntable 40 Rings

Product Description

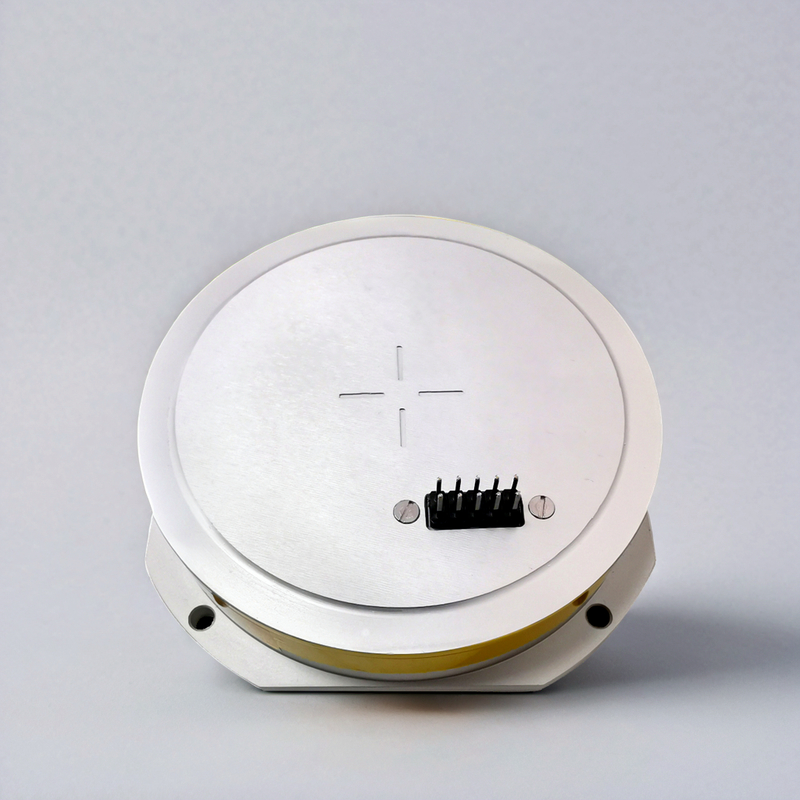

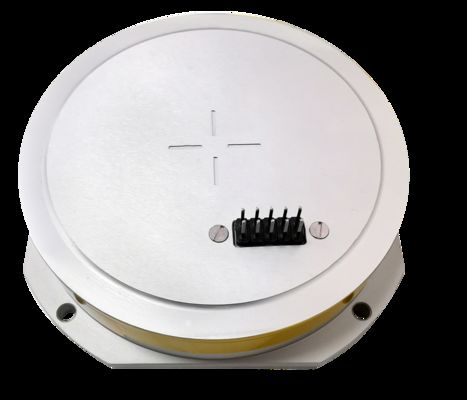

Micro-nano Fiber Optic Gyro for High-precision Pan-tilt Head

Product Description

The MFOG-103 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features a simple design with no moving or wear parts. It offers fast startup, compact size, and lightweight construction, making it ideal for carrier attitude control and measurement applications.

Technical Parameters

Project	Performance indicators
Range (°/s)	±350
Scale factor (mV/°/s)	6±0.6
Zero-bias stability (10s, 1σ, °/H)	≤1
Zero-bias repeatability (1σ, °/H)	≤1
3dB Bandwidth (Hz)	≥1000
Random walk (°/√H)	≤0.02
Power supply (V)	5+0.25
Power Consumption (W)	≤1
Impact (g)	≥1500
Acceleration (g)	≥70
Service Life (years)	≥15
MTBF	≥100000

Company Profile

Established in 2013, Shenzhen Firepower Control Technology Co., Ltd is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, we manufacture MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven company, Firepower possesses China's leading production capabilities for inertial navigation and communication products. Our proprietary array algorithm powers a series of inertial navigation products that provide critical positioning, attitude, and speed data for precise autonomous navigation in civilian vehicles and ships.

Company Advantage

Our Services

Package & Shipping

Frequently Asked Questions

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: Quality is our priority. We implement strict quality control:

Production according to agreed technical requirements
Comprehensive testing per methodology
Professional QA/QC team oversight

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms convenient for you.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge; batch orders use wooden boxes.

Q: What is final price?

A: Standard products as per price table; customized products priced based on specifications and quantity.

Q: How to choose product?

A: Selection options:

Choose from our standard product catalog
Request modifications to standard products
Provide specific technical requirements for evaluation
Describe application for suitable product recommendations
