Lightweight Micro-nano Fiber Optic Gyroscope with Exceptional Accuracy and Stability

Name: Lightweight Micro-nano Fiber Optic Gyroscope with Exceptional Accuracy and Stability
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40A
Price: 1350 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40A
MOQ:	1
Price:	1350 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Zero-Bias Stability:

≤1°/H (10s, 1σ)

Bandwidth:

300Hz

Scale Factor Nolinearity:

500ppm

Power:

5±0.15V

Start Time:

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

Mechanical Rate 1 Axis Turntable

1 Axis Turntable Facet Type

Inertial System 1 Axis Turntable

Product Description

Lightweight Micro-nano Fiber Optic Gyroscope with Exceptional Accuracy and Stability

Product Description

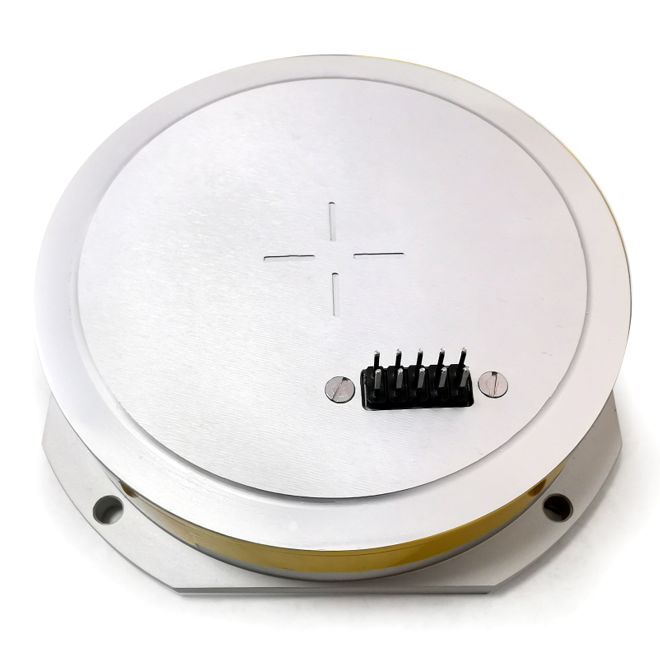

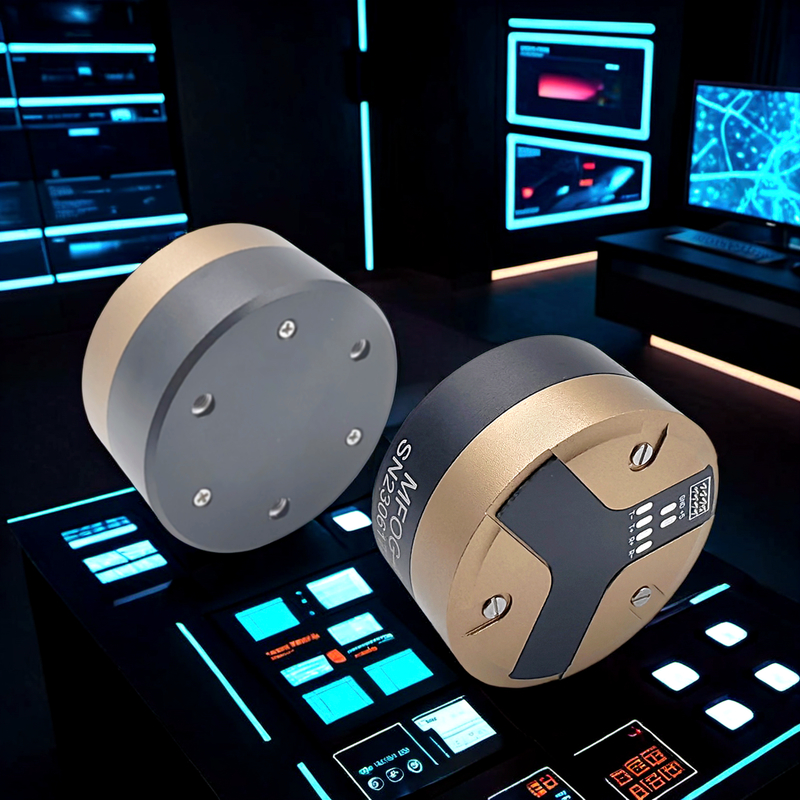

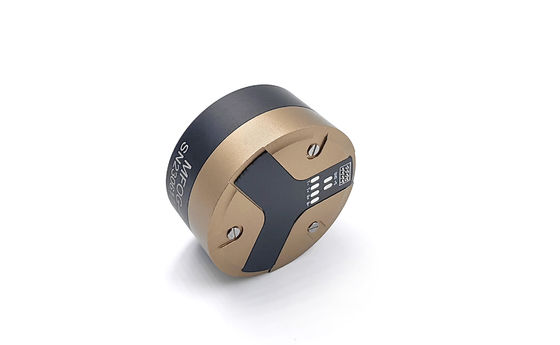

The MFOG-40A micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features:

Simple structure with no moving or wear parts
Fast startup capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Technical Specifications

Serial No.	Parameter	Specification
1	Range (°/s)	±500
2	Scale factor nonlinearity (ppm)	500
3	Scale factor repeatability (ppm)	300
4	Zero-bias stability (10s, 1σ, °/h)	≤1
5	Zero-bias repeatability (1σ, °/h)	≤2
6	Random walk coefficient (°/√h)	0.02
7	Start time (s)	≤2
8	Bandwidth (Hz)	300
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤1.5
11	Dimensions (mm)	φ40*20

Company Profile

Company Advantages

Our Services

Packaging & Shipping

Frequently Asked Questions

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Please contact us for specific lead time based on your order quantities.

Q: How does your factory handle quality control?

A: We maintain strict quality control throughout production:

Manufacture according to agreed technical specifications
Conduct comprehensive testing per established methodologies
Dedicated QA/QC team ensures final product quality

Q: Do you accept OEM or ODM orders?

A: Yes, we offer both OEM and ODM services tailored to customer requirements.

Q: What are your delivery terms?

A: We support EXW, FOB, CIF, and other standard terms based on customer preference.

Q: What payment methods do you accept?

A: TT, L/C, Pay Later, West Union, and Online Bank Payment.

Q: What is your product warranty?

A: Standard 12-month warranty, negotiable for extended periods.

Q: How do you package products?

A: Sample orders use carton boxes with protective foam, while batch orders ship in wooden crates.

Q: How do I select the right product?

A: We offer multiple selection methods:

Choose from our standard product catalog
Modify standard products to meet specific requirements
Provide complete technical specifications for evaluation
Describe your application for expert product recommendations
