RS232 Dual Axis Turntable Power Driven Automatic Positioning

1
MOQ
RS232 Dual Axis Turntable Power Driven Automatic Positioning
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Dual Axis Power-driven Turntable
Load Capacity: 20kg
Table Facet Diameter: Ø360mm
Table Facet Flatness: 0.01mm
Wobble Error: Inner Loop: ±2’’ Outer Loop: ±3’’
Working Mode: Position, Rate, Vibration
Slip Rings: 40 Rings X 3A
Computer Port: RS232
High Light:

RS232 Dual Axis Turntable

,

Dual Axis Turntable Power Driven

,

Dual Axis Turntable Automatic Positioning

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 2TD-450
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T
Supply Ability: 1000/month
Product Description

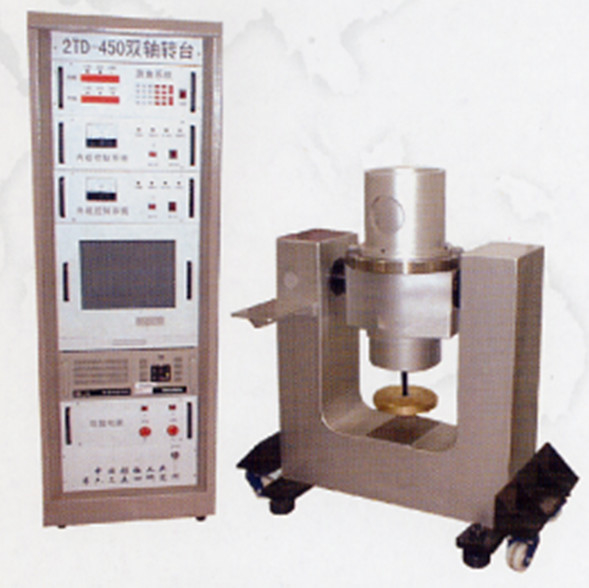

dual axis power-driven turntable, automatic positioning, rate and sway motion simulator



2TD-360A, 2TD-450 are dual axis power-driven turntable which has functions of automatic positioning, rate and sway, etc. It could be applied to the test and accuracy check of flexible gyro, also it has over-rate and urgent outage protection function.



Specifications



items 2TD-360A 2TD-450
Load capacity 15kg 20kg
tested unit size Ø320mm x 250mm Ø300mm x 300mm
Table facet diameter Ø360mm Ø450mm
Table facet flatness 0.01mm 0.01mm
Table facet jerk value 0.01mm 0.01mm
wobble error

Inner: ±2’’

Outer: ±3’’

<3’’
Axes perpendicularity ≤±2’’ ≤±2’’
Rotary angle range continuous infinite continuous infinite
Working mode positioning, rate, sway positioning, rate, sway
Control method Ground Proximity/remote site control Ground Proximity/remote site control
Slip rings   40 rings
