Ultra-Miniaturized Micro-Nano Fog

Name: Ultra-Miniaturized Micro-Nano Fog
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 1317 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	1317 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±300°/S

Scale Factor:

3600lsb/°/S

Scale Factor Nolinearity:

≤500ppm

Zero-Bias Stability:

≤0.5°/H, 10s, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

RS232 Dual Axis Turntable

Dual Axis Turntable Power Driven

Dual Axis Turntable Automatic Positioning

Product Description

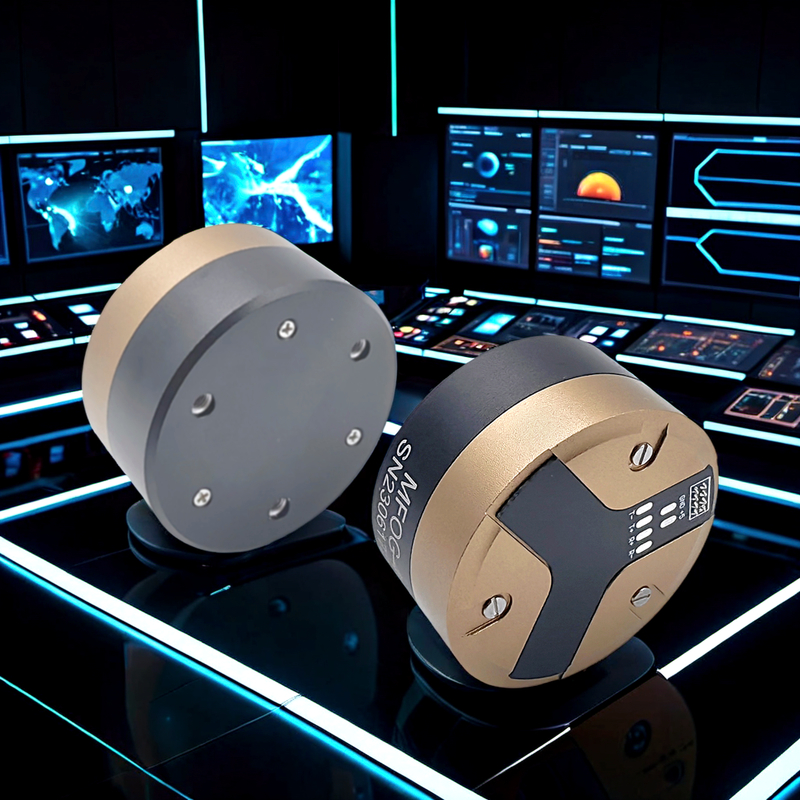

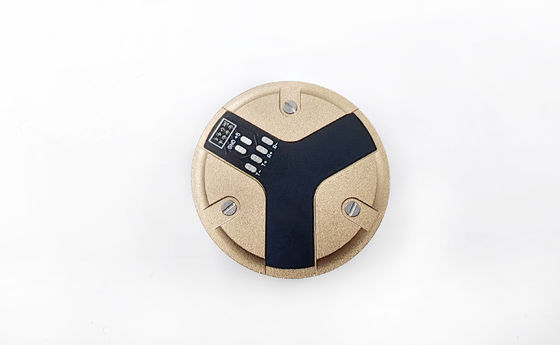

Ultra-Miniaturized Micro-Nano Fog

Product Description

The MFOG-40 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback the phase difference between two counter-propagating light beams. Comprising optical path components, circuit components, and structural components, this product features a simple structure with no moving or wear parts, offering fast startup, compact size, and lightweight design. It is ideal for attitude control and measurement applications in various carriers.

Technical Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±500
2	Scale Factor (LSB/o/s)	3600
3	Scale factor nonlinearity (ppm)	≤300
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H1/2)	≤0.05
7	Zero-bias stability at full temperature (10s, 1σ, -40 ºC ~ + 65 ºC, °/H)	≤5
8	3dB Bandwidth (Hz)	≥400
9	Power supply (V)	5+0.15
10	Power Consumption (W)	≤1.5
11	Dimension (mm)	φ40X20.5

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, the company manufactures MEMS gyros, inertial navigation systems, vibration sensors, and communication products. As an innovation-driven enterprise, Firepower develops autonomous navigation products with proprietary technology, providing critical positioning and attitude data for civilian vehicle and ship navigation systems.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control: 1) Production according to technical requirements, 2) Full testing, 3) Professional QA/QC team oversight.

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other standard delivery terms.

Q: What is warranty?

A: Standard 12-month warranty, negotiable for longer periods.

Q: How to choose product?

A: We offer standard products or custom solutions: 1) Select from our catalog, 2) Modify standard specifications, 3) Provide technical requirements, 4) Describe application for recommendations.
