Inertial Low Drift Fiber Optic Gyro Navigation 1 Axis Gyroscope

Name: Inertial Low Drift Fiber Optic Gyro Navigation 1 Axis Gyroscope
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Product Name:

Fiber Optic Gyroscope

Measuring Range:

±300°/s

Bias Stability:

≤1°/h

Zero Bias Repeatability:

≤1°/h

Supply Voltage:

Application:

Navigation, Robotics, Aerospace

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

Inertial Fiber Optic Gyro

Low Drift Fiber Optic Gyro

Navigation 1 Axis Gyroscope

Product Description

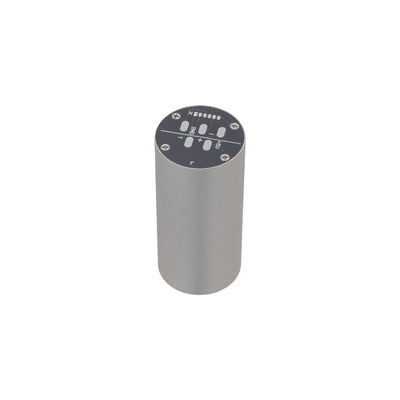

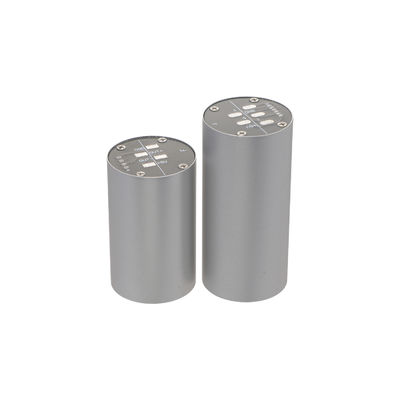

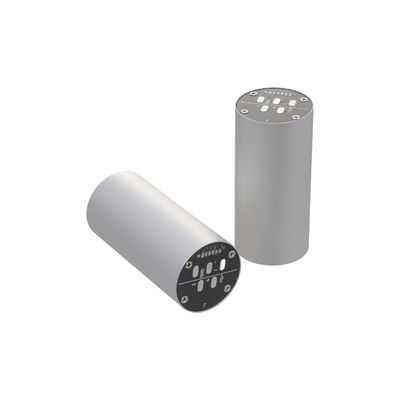

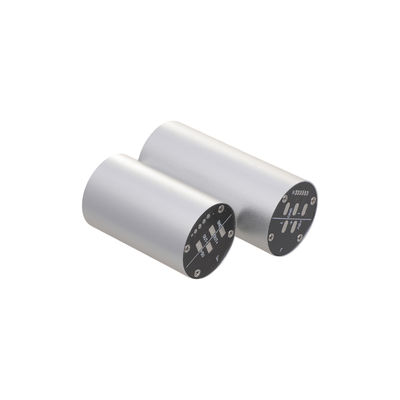

MFOG-091A Micro-Nano Fiber Optic Gyroscope

A compact, lightweight, high-precision angular rate sensor based on the Sagnac effect, fully compatible with Fizoptika VG091. With φ24×51.6mm size, ≤30g weight, low bias (≤2°/h), and ARW ≤0.04°/√h, it provides excellent stability, fast startup, and wide operating range (-40°C to +70°C). Ideal for UAVs, inertial navigation systems, robotic control, and stabilization platforms.

Product Composition

Optical path assembly
Detection and control signal circuit board
Optical fiber ring skeleton, shell and other structural parts

Physical Specifications

Dimensions: φ24mm × 51.6mm (cylindrical)
Weight: ≤30g
Operating Temperature: -40°C to +70°C
Storage Temperature: -55°C to +85°C
Random Vibration: 20g, 20Hz-2000Hz

Main Performance Parameters

Parameter	Specification
Range (°/s)	±300
Scale factor	7±0.7mv/o/s
Scale factor nonlinearity (ppm)	≤1000
Zero-bias stability (10s, 1σ, °/H)	≤2
Zero-bias repeatability (1σ, °/H)	≤2
Angular random walk (°/H 1/2)	≤0.04
Zero bias (°/s)	≤0.05
Bandwidth 3dB Band Width (Hz)	≥450
Power supply (V)	5±0.15
Power Consumption (W)	≤0.7

Mechanical and Electrical Interfaces

The cylindrical surface serves as the installation surface, using clamps for mounting.

Power Requirements

Parameter	Specification
Voltage	4.85V-5.15V
Ripple	20mV
Current	0.2A

Electrical Interface

The MFOG-091A connects electrically through bonding pads with differential analog voltage output (output impedance 1kΩ).

Pin Number	Definition	Remarks
1	5V	Power supply
2	Out-	Differential output
3	Out+	Differential output
4	GND	Power ground
