Fiber Optic Gyro

Navigation Fiber Optic Gyro High Performance Angular Rate Sensor

Name: Navigation Fiber Optic Gyro High Performance Angular Rate Sensor
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: F120A
Price: 10000.00 USD
Availability: InStock

Brand Name:	avic
Model Number:	F120A
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Measuring Range:

-500~+500º/s

Zero Bias Stability:

≤ 0.003º/h

Zero Bias Repeatability:

≤ 0.003º/h

Scale FactorNonlinear:

≤5ppm

Power Supply:

-5,+5v

Power:

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

Navigation Fiber Optic Gyro

Fiber Optic Gyro High Performance

High Performance Angular Rate Sensor

Product Description

navigation angular rate sensor, inertial angular speed meter, high performance angular gyro meter

Application areas:

high-precision inertial navigation systems,

positioning and orientation systems,

attitude measurement systems,

servo stabilization systems

Features

● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.

● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.

● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.

● QuichLaunch technology -minium activation time with no external calibration required.

● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.

● Noise isolation and compression -significantly reduces the angle random walk.

● SelfTrack technology -improves the gyro dynamic range

Dimensions

Navigation Fiber Optic Gyro High Performance Angular Rate Sensor 0

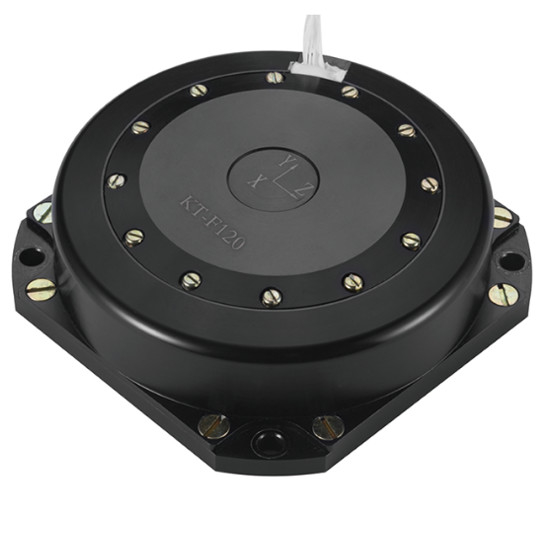

F120 single-axis fiber optic gyroscope is an all-solid-state high-precision angular rate inertial sensor device integrating optics, mechanics and electricity. The product has the characteristics of high precision and high reliability.

Performance Characteristics

Project	unit	F120A	F120B	F120C	F120D
Measuring range	º/s	-500~+500	-500~+500	-500~+500	-500~+500
Zero offset stability	º/h	≤ 0.003	≤ 0.008	≤ 0.01	≤ 0.03
Zero bias repeatability	º/h	≤0.003	≤ 0.008	≤0.01	≤0.03
Random walk coefficient	º/√h	≤0.0004	≤0.0008	≤0.001	≤0.003
Scale factorNonlinear	ppm	≤5	≤10	≤20	≤ 30
Scale factorRepeatability	ppm	≤ 5	≤10	≤20	≤ 30
Scale factorAsymmetry	ppm	≤5	≤10	≤20	≤30
Start Time	s	≤1
bandwidth	Hz	＞100
power supply	V	-5,+5
power	W	≤6
Operating temperature	℃	-40~+65
storage temperature	℃	-45~+85
vibration	Hz,g2/Hz	20～2000,0.06
Shock	g,ms	30,11
Data refresh rate	Hz	200~500
Baud rate	bps	115200~921600
outputmethod	/	Broadcast (default) / triggered (custom)
Interface level	/	RS-422
Connector	/	J30J-15TJL
shape size	mm	Φ120×39.5
