Fiber Optic Gyro
Created with Pixso.

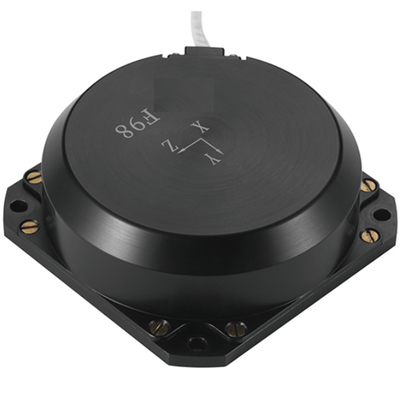

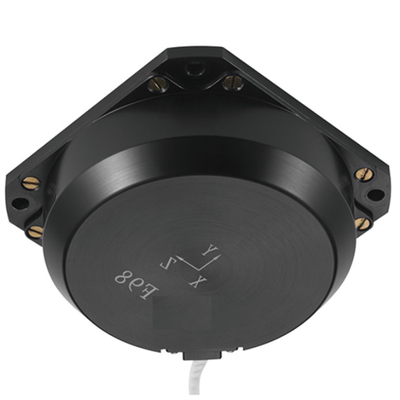

Long Lifespan Fiber Optic Gyro For IMU High Stability Angle Rate Sensor

Long Lifespan Fiber Optic Gyro For IMU High Stability Angle Rate Sensor

Long Lifespan Fiber Optic Gyro For IMU High Stability Angle Rate Sensor

Brand Name: avic
Model Number: F98A
MOQ: 1
Payment Terms: T/T
Supply Ability: 50/month
Detail Information
Product Description
Detail Information
Place of Origin:
china
Product Name:
Fiber Gyro For IMU
Operating Temperature:
-40~+65
Power:
<6W
Power Supply:
-5,+5V
Bandwidth:
>200Hz
Start Time:
<1s
Packaging Details:
sponge+ box
Supply Ability:
50/month
Highlight:

long lifespan Fiber Optic Gyro

,

IMU Fiber Optic Gyro

,

High Stability Angle Rate Sensor

Product Description

F98 1 axis FOG single axis fiber gyro sensor low b...

New fiber gyros for IMU, biaxial fiber optic gyros, angle rate sensor price



Application areas: applications in high-precision inertial navigation systems, positioning and orientation systems, attitude measurement systems, servo stabilization systems, etc.



Features

● All-fiber design -long lifespan, small package size, high stability and more resistance to interference.

● Integrated fiber polarizer -minimum insertion loss and high extinction ratio, offering more resistance to temperature and mechanical shock, as well as intense vibration.

● Reliable compact package -operationally robust for all kinds of environments, ideal for a wide of applications in both civilian and military areas.

● QuichLaunch technology -minium activation time with no external calibration required.

● Optimal wavelength -improves the sensibility by 50% with the same structure, size and cost.

● Noise isolation and compression -significantly reduces the angle random walk.

● SelfTrack technology -improves the gyro dynamic range



Performance Characteristics



Project unit F98A F98B F98C F98D
Measuring range º/s -500~+500 -500~+500 -500~+500 -500~+500
Zero offset stability º/h ≤ 0.008 ≤ 0.02 ≤ 0.05 ≤ 0.08
Zero bias repeatability º/h ≤0.008 ≤ 0.02 ≤0.05 ≤0.08
Random walk coefficient º/√h ≤0.0008 ≤0.002 ≤0.005 ≤0.008
Scale factorNonlinear ppm ≤ 20 ≤ 30 ≤ 40 ≤ 50
Scale factorRepeatability ppm ≤ 20 ≤ 30 ≤ 40 ≤ 50
Scale factorAsymmetry ppm ≤ 20 ≤ 30 ≤ 40 ≤ 50
Start Time s ≤1
bandwidth Hz ＞200
power supply V -5,+5
power W ≤6
Operating temperature ℃ -40~+65
storage temperature ℃ -45~+85
vibration Hz,g2/Hz 20～2000,0.06
Shock g,ms 30,11
Data refresh rate Hz 200~500
Baud rate bps 115200~921600
outputmethod / Broadcast (default) / triggered (custom)
Interface level / RS-422
Connector / J30J-15TJL
shape size mm Φ98×38





F98 single-axis fiber optic gyroscope is an all-solid-state high-precision angular rate inertial sensor device integrating light, machine and electricity. The product has the characteristics of high precision and high reliability.


The product has zero bias stability less than or equal to 0.03°/h (10s smooth), response frequency bandwidth, ±5V DC power supply, power less than 5W, and adopts RS422 digital communication mode, which is convenient for users to use, and is an ideal inertial device to replace traditional mechanical gyroscopes.





Dimensions

Long Lifespan Fiber Optic Gyro For IMU High Stability Angle Rate Sensor 0
