Miniature Single-Axis Fiber Optic Gyro with 1°/h Precision

Name: Miniature Single-Axis Fiber Optic Gyro with 1°/h Precision
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Payment Terms:	T/T
Supply Ability:	50/month

Detail Information

Product Description

Detail Information

Place of Origin:

China

Range:

350deg/s

Zero-bias Repeatability:

≤1°/h

Zero-bias Stability:

≤1°/h

Random Walk Cefficient:

≤0.02°/√h

Connector:

Soldering Pin/ Pad

Consumption:

≤1w

Dimensions:

60mm X60mm X 17mm

Packaging Details:

sponge+ box

Supply Ability:

50/month

Highlight:

Integrated Fog Gyroscope

3 Axis Fog Gyroscope

Angular Rate Gyro Meter Sensor

Product Description

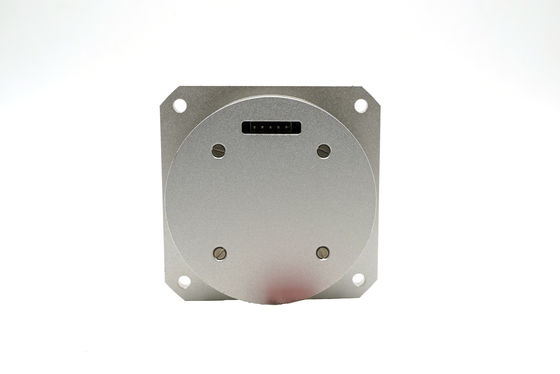

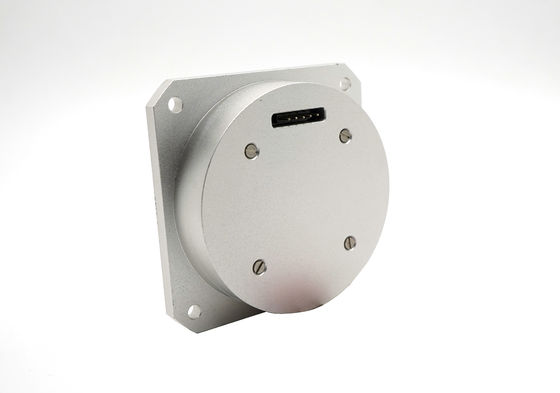

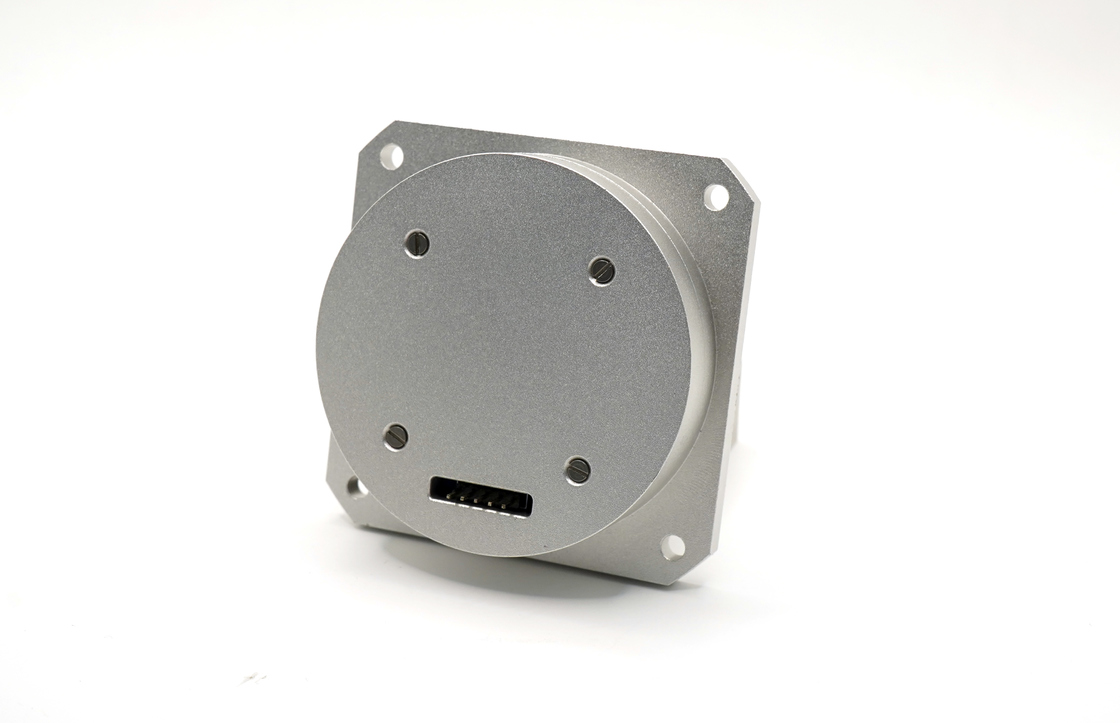

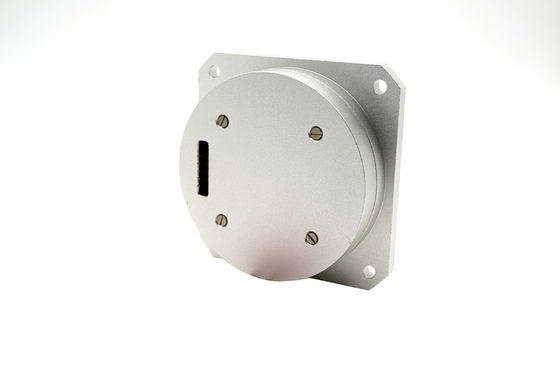

Miniature Single-Axis Fiber Optic Gyro with 1°/h Precision

MFOG-103 is a compact, energy-efficient fiber optic gyroscope designed for space- and power-constrained systems. It delivers high precision, fast response, and low noise performance with power consumption below 1W.

The design supports bias stability ≤1°/h, ARW ≤0.02°/√h, and lifetime exceeding 15 years. Fully interchangeable with Fizoptika VG103, it fits UAVs, small robots, and inertial navigation modules.

Product Components

Optical path assembly
Detection and control signal circuit board
Optical fiber coil skeleton, shell and other structural parts

Appearance and Dimensions

Dimensions: 60 mm * 60 mm * 17 mm (including flange, excluding plug)

Weight

≤80g

Operating Temperature

-40℃ to +70℃

Storage Temperature

-55℃ to +85℃

Random Vibration

Random vibration level: 20g, frequency range: 20Hz to 2000Hz

Main Performance Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years)	≥15
13	MTBF	≥100000

Mechanical and Electrical Interfaces

The bottom surface of the product is the installation surface.
