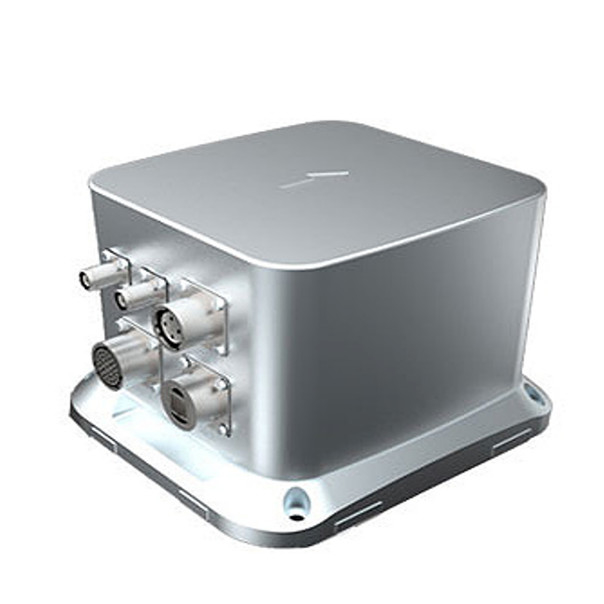

6 Axis Inertial Navigation System MEMS Precise Navigation Sensor

6 Axis Inertial Navigation System MEMS Precise Navigation Sensor
Features Gallery Product Description Request A Quote
Product Name: MEMS Inertial Navigation Sensor
Heading Range: 0-360°
Elevation Range: ±90°
Rolling Range: ±180°
Acceleration Range: ± 5g~ ±30g
High Light:

6 Axis Inertial Navigation System


Inertial Navigation System MEMS


MEMS Precise Navigation Sensor

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: CHA-9E
Payment & Shipping Terms
Packaging Details: sponge+box
Delivery Time: 15 days for sample
Payment Terms: T/T
Supply Ability: 100/MONTH
Product Description

6 axis attitude sensor, precise navigation sensor with GPS, inertial navigation GPS sensor


Field of application

Unmanned aerial vehicles, guided bombs, missiles, rockets, platform stabilization.


This product adopts highly integrated MEMS gyroscope and accelerometer IMUs GPS-OEM board, barometric altimeter, magnetometer and other multi-purpose sensors, uses Kalman filtering technology to fuse SINS and GPS information, and outputs stable and reliable navigation parameters such as heading, attitude, speed and position. Gyroscopes mainly include MEMS gyroscopes and fiber optic gyroscopes.


Main technical indicators
Accuracy of course angle 1.0° 〜2.0.(1 σ)
Pitch accuracy   0.5° -1.0° (1 σ)
Roll accuracy   0.5° -1.0° (1σ)
Speed accuracy   0.3m/s
Positioning accuracy 10m (CEP)
500m (5min after no Beidou signal)
Preparation time   <2min
Heading measurement range 0-360°
Elevation measurement range ±90°
Rolling measurement range ±180°
Range of angular velocity measurement ±100° /s~ ±400° Zs
Acceleration measurement range ± 5g~ ±30g
Physical dimensions and electrical characteristics
Overall dimensions 96mm x 60mm x48mm
Weight <300g
Power supply DC24±3V
Power consumption W5W


Product features

Small size

light weight

low cost

strong environmental adaptability


suitable for harsh use environment

High accuracy and large measurement range
