Super Small Size Micro-Nano Fiber Optic Gyro for Lightweight Use

Name: Super Small Size Micro-Nano Fiber Optic Gyro for Lightweight Use
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-40
Price: 1317 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-40
MOQ:	1
Price:	1317
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±300°/S

Scale Factor:

3600lsb/°/S

Scale Factor Nolinearity:

≤500ppm

Zero-Bias Stability:

≤0.5°/H, 10s, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤1.5W

Packaging Details:

Sponge&Box

Supply Ability:

100

Highlight:

Swing Control 1 Axis Turntable

Position Control 1 Axis Turntable

30Kg 1 Axis Turntable

Product Description

Super Small Size Micro-Nano Fiber Optic Gyro for Lightweight Use

Product Description

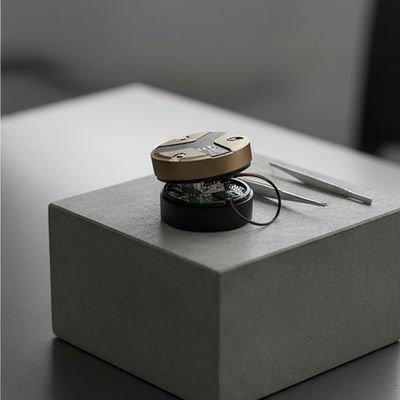

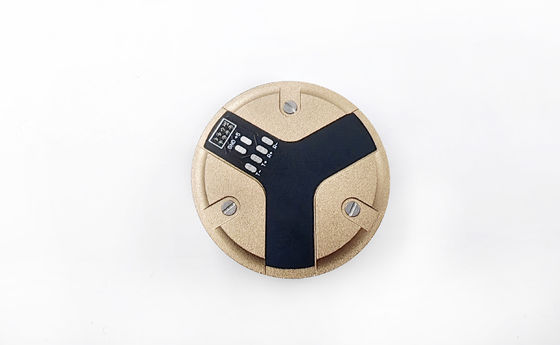

The MFOG-40 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences created by counter-propagating light beams.

This product consists of optical path components, circuit components, and structural components. Key features include:

Simple structure with no moving or wear parts
Fast startup capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Technical Parameters

Project	Performance indicators
Range (°/s)	±300
Scale Factor (LSB/ o /s)	3600
Scale factor nonlinearity (ppm)	≤500
Zero-bias stability (10s, 1σ, °/H)	≤0.5
Zero-bias repeatability (1σ, °/H)	≤0.5
Angular random walk (°/H 1/2	≤0.02
Zero-bias stability at full temperature (10s, 1σ, -40 ℃ ~ + 65 ℃, °/H)	≤1.5
3dB Bandwidth (Hz)	≥300
Power supply (V)	5+0.15
Power Consumption (W)	≤1.5
Dimension (mm)	φ40X20

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of:

Vibration acceleration sensors
MEMS gyros and IMU/INS systems
Angle testing equipment

The company operates multiple automated production lines across Xi'an, Shenzhen, and Zhuhai, covering MEMS gyro manufacturing, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven enterprise, Firepower possesses China's leading production capabilities for inertial navigation and communication products. The company focuses on developing autonomous navigation solutions with proprietary technology, particularly for civilian vehicle and ship applications.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead times based on order quantities.

Q: How does your factory do regarding quality control?

A: We maintain strict quality control throughout production:

Manufacture according to agreed technical specifications
Conduct comprehensive testing per methodology
Professional QA/QC team ensures final product quality

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer requirements.

Q: What are the terms of delivery?

A: Available options include EXW, FOB, CIF, and other standard terms.

Q: What is the payment way?

A: We accept TT, L/C, Pay later, West Union, and Online Bank Payment.

Q: What is warranty?

A: Standard 12-month warranty, negotiable for extended periods.

Q: What is the packing quality?

A: Sample orders use carton boxes with sponge protection; batch orders use wooden cases.

Q: What is final price?

A: Standard products follow published pricing; customized solutions require quotation based on specifications.

Q: How to choose product?

A: Selection options:

Choose from standard catalog products
Modify standard products to meet specific requirements
Provide complete specifications for evaluation
Describe application for suitable product recommendations
