FOG Sensor for Autonomous Vehicle Navigation

Name: FOG Sensor for Autonomous Vehicle Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-095
Price: 1317 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Price:	1317 USD
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±150°/S

Scale Factor:

≥10mv/°/S

Zero-Bias Stability:

≤2°/H, 10s, 1σ

Zero Bias Repeatability:

≤2°/H, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤0.7W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

3'' 1 Axis Turntable

Temperature Chamber 1 Axis Turntable

Product Description

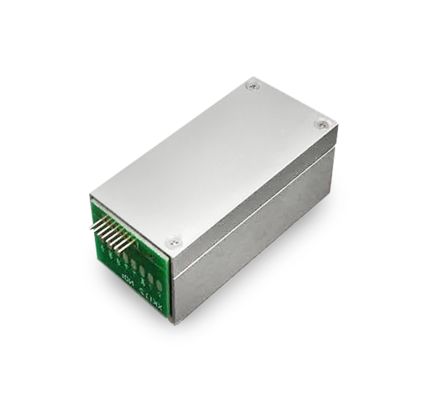

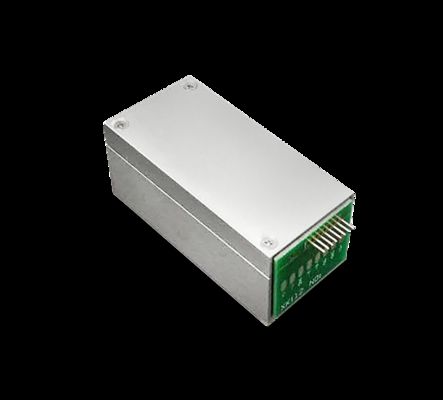

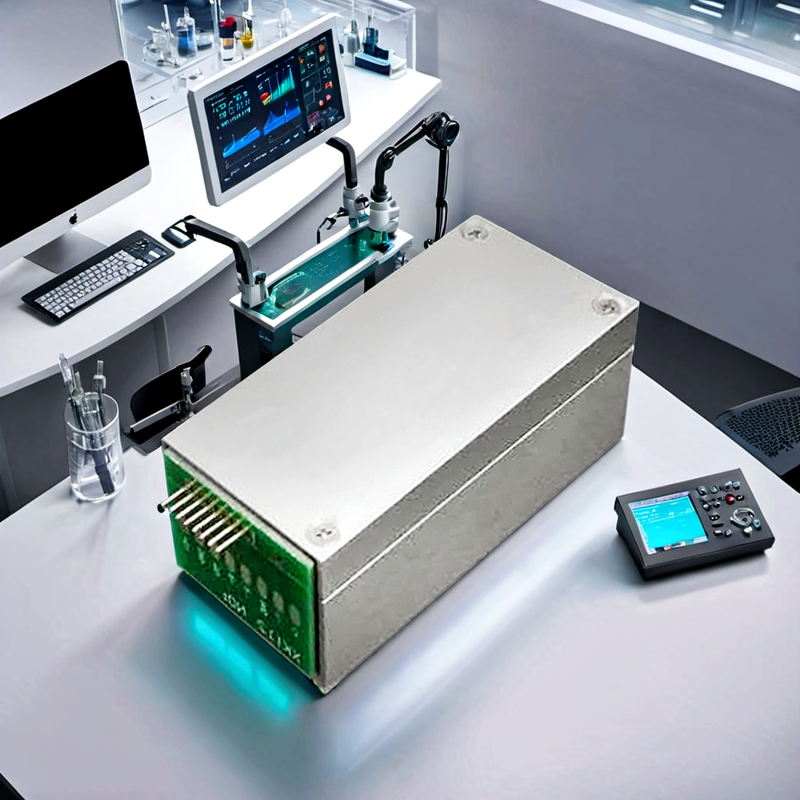

FOG Sensor for Autonomous Vehicle Navigation

Product Description

The MFOG-095 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it incorporates various micro-nano fiber devices to detect, process, and feedback the phase difference generated by two counter-propagating light beams.

Comprising optical path components, circuit components, and structural components, this product features:

Simple structure with no moving or wear parts
Fast start-up capability
Compact size and lightweight design
Ideal for carrier attitude control and measurement applications

Technical Parameters

Serial number	Project	Performance indicators
1	Range (°/s)	±150
2	Scale factor (mV/°/s)	≥10
3	Zero-bias stability (10s, 1σ, °/H)	≤2
4	Zero-bias repeatability (1σ, °/H)	≤2
5	Zero bias (°/s)	≤0.05
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Start-up Time (s)	≤1
9	Power supply (V)	5±0.15
10	Power Consumption (W)	≤0.7

Company Profile

Shenzhen Firepower Control Technology Co., Ltd, established in 2013, is a high-tech enterprise specializing in R&D and production of vibration acceleration sensors, MEMS gyros, IMUs, INS, and angle testing equipment. With automated production lines in Xi'an, Shenzhen, and Zhuhai, the company manufactures MEMS gyros, inertial navigation systems, vibration sensors, and communication products.

As an innovation-driven enterprise, Firepower possesses China's leading production capabilities for inertial navigation and communication products. The company focuses on developing autonomous navigation products with independent intellectual property rights, widely applied in civilian vehicle and ship navigation systems. Their proprietary array algorithm enables inertial navigation products to provide precise position, three-dimensional attitude, and speed information for autonomous navigation control.

Company Advantage

Our Services

FAQ

Q: What is your lead time?

A: Stock: 5-15 days in general. No stock: 15-30 days after samples confirmed. Contact us for specific lead time based on your order quantities.

Q: How does your factory do regarding quality control?

A: We implement strict quality control: 1) Production according to technical requirements; 2) Full testing per methodology; 3) Professional QA/QC team oversight.

Q: Do you accept OEM or ODM order?

A: Yes, we provide both OEM and ODM services tailored to customer needs.

Q: What are the terms of delivery?

A: We accept EXW, FOB, CIF, and other terms for your convenience.

Q: What is the payment way?

A: TT, L/C, Pay later, West Union, Online Bank Payment.

Q: What is warranty?

A: Standard 12 months, negotiable for longer periods.

Q: What is the packing quality?

A: Sample orders use carton box with sponge; batch orders use wooden box.

Q: What is final price?

A: Standard products as per price table; customized products priced based on requirements and quantity.

Q: How to choose product?

A: We offer: 1) Standard products; 2) Customized versions of standard products; 3) Fully custom solutions based on technical requirements; 4) Application-specific recommendations.
