products details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
1 Axis Turntable
Created with Pixso.

Fiber Optic Gyro for Oilfield Drilling Direction Measurement

Fiber Optic Gyro for Oilfield Drilling Direction Measurement

Fiber Optic Gyro for Oilfield Drilling Direction Measurement

Brand Name: Firepower
Model Number: MFOG-095
MOQ: 1
Price: 1217 USD
Payment Terms: L/C,T/T,Western Union
Supply Ability: 100 pcs
Detail Information
Product Description
Detail Information
Place of Origin:
CHINA
Certification:
CE
Measuring Range:
±150°/S
Scale Factor:
≥10mv/°/S
Zero-Bias Stability:
≤2°/H, 10s, 1σ
Zero Bias Repeatability:
≤2°/H, 1σ
Power Supply:
5±0.15V
Power Consumption:
≤0.7W
Packaging Details:
Sponge&Box
Supply Ability:
100 pcs
Highlight:

Inertial Navigation Single Axis Turntable

,

Thermal Chamber​ Single Axis Turntable

,

Single Axis Turntable 10kg

Product Description

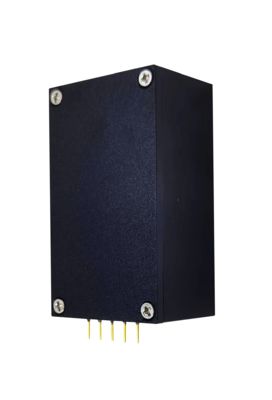

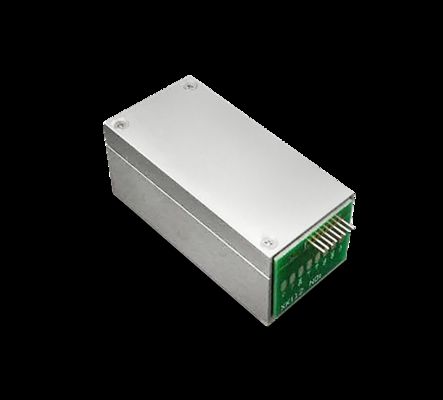

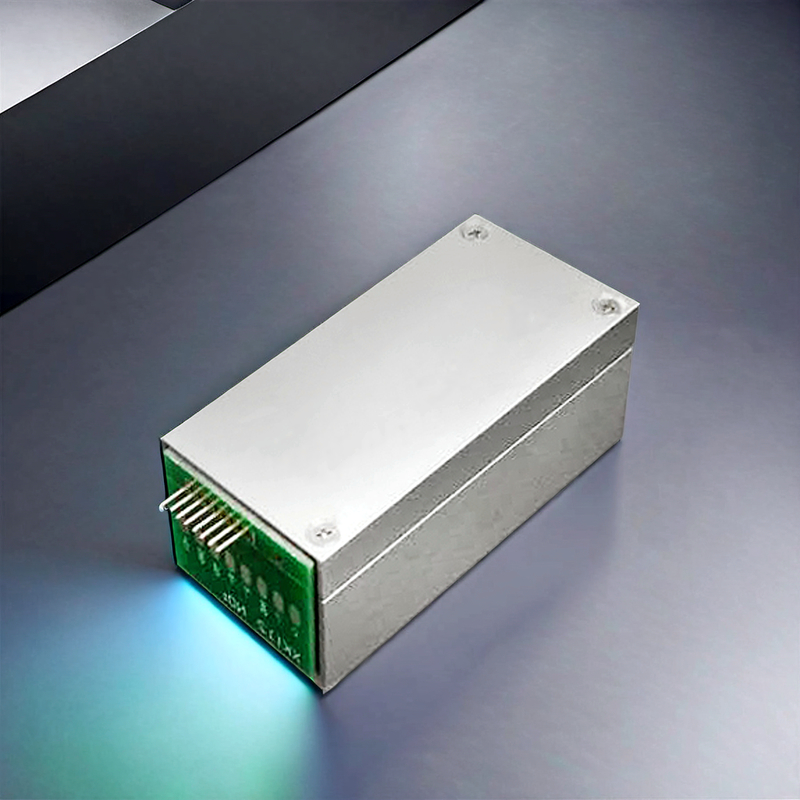

MFOG-095 Micro-Nano Fiber Optic Gyroscope
Product Description

The MFOG-095 micro-nano fiber optic gyroscope is an advanced angular rate sensor that integrates optical, mechanical, and electronic components. Based on the Sagnac effect, it utilizes micro-nano fiber devices to detect, process, and feedback phase differences between counter-propagating light beams.

Key product components include optical path elements, circuit modules, and structural parts. This gyroscope offers exceptional performance characteristics:

  • Simple, durable design with no moving or wearing parts
  • Rapid startup capability
  • Compact size and lightweight construction
  • Ideal for carrier attitude control and measurement applications
Technical Specifications
Parameter Specification
Range (°/s) ±150
Scale factor (mV/°/s) ≥10
Zero-bias stability (10s, 1σ, °/H) ≤2
Zero-bias repeatability (1σ, °/H) ≤2
Zero bias (°/s) ≤0.05
3dB Bandwidth (Hz) ≥1000
Random walk (°/√H) ≤0.02
Start-up Time (s) ≤1
Power supply (V) 5±0.15
Power Consumption (W) ≤0.7
Manufacturer Profile

Shenzhen Firepower Control Technology Co., Ltd. is a high-tech enterprise established in 2013, specializing in the R&D and production of:

  • Vibration acceleration sensors
  • MEMS gyros and IMU/INS systems
  • Angle testing equipment

With automated production facilities in Xi'an, Shenzhen, and Zhuhai, Firepower maintains China's leading inertial navigation production capabilities. The company focuses on independent innovation, developing proprietary navigation solutions for civilian vehicle and marine applications.

Company Advantages
Fiber Optic Gyro for Oilfield Drilling Direction Measurement 0
Our Services
Fiber Optic Gyro for Oilfield Drilling Direction Measurement 1
Frequently Asked Questions
Q: What is your lead time?
A: Stock items ship in 5-15 days. Custom orders require 15-30 days after sample confirmation. Contact us for exact lead times based on order quantity.
Q: How does your factory handle quality control?
A: Our rigorous quality process includes: strict adherence to technical specifications, comprehensive product testing, and dedicated QA/QC oversight.
Q: Do you accept OEM or ODM orders?
A: Yes, we provide both OEM and ODM services tailored to customer requirements.
Q: What are your delivery terms?
A: We support EXW, FOB, CIF, and other standard terms.
Q: What payment methods do you accept?
A: TT, L/C, Pay Later, Western Union, and Online Bank Payment.
Q: What is your product warranty?
A: Standard 12-month warranty, extendable through negotiation.
Q: How are products packaged?
A: Samples ship in carton boxes with protective foam. Bulk orders use wooden crates.
Q: How do I select the right product?
A: Choose from our standard catalog, provide custom specifications, or consult our sales team for application-specific recommendations.
