High Accuracy Fiber Optic Gyroscope for Underground Pipeline Surveying

Name: High Accuracy Fiber Optic Gyroscope for Underground Pipeline Surveying
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero Bias Repeatability:

≤2°/h

Zero-bias Stability:

≤2°/h

Random Walk:

0.04 °/√hr

Range:

300°/s

Scale Factor Nonlinearity:

≤1000ppm

Measuring Range:

±300º/s

Storage Temperature:

-55~+85°C

Vibration Resistance:

20 G

Operating Temperature Range:

-40°C To +70°C

Connector:

Soldering Pin/ Pad

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Navigation Sensor Turntable Dual Axis

Turntable Dual Axis 2″

Product Description

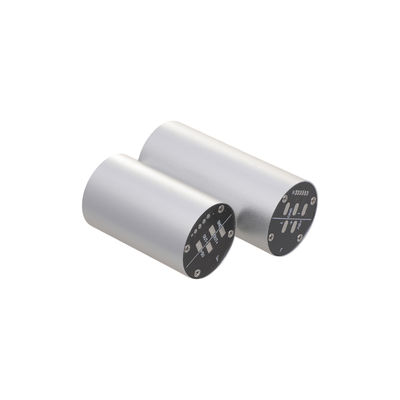

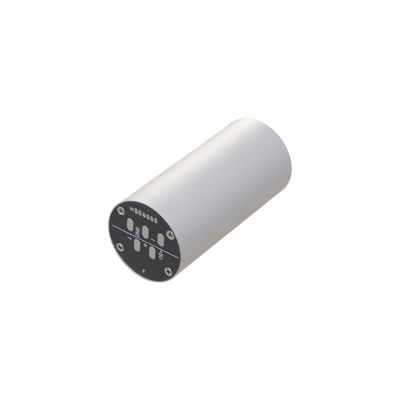

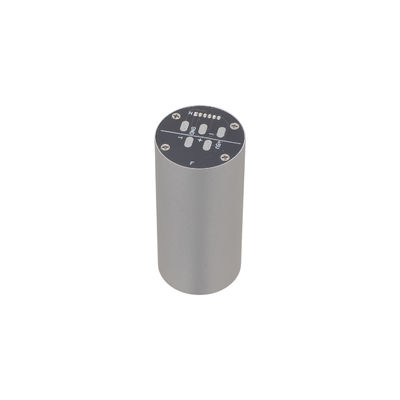

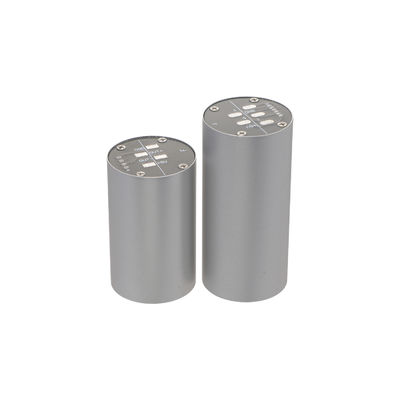

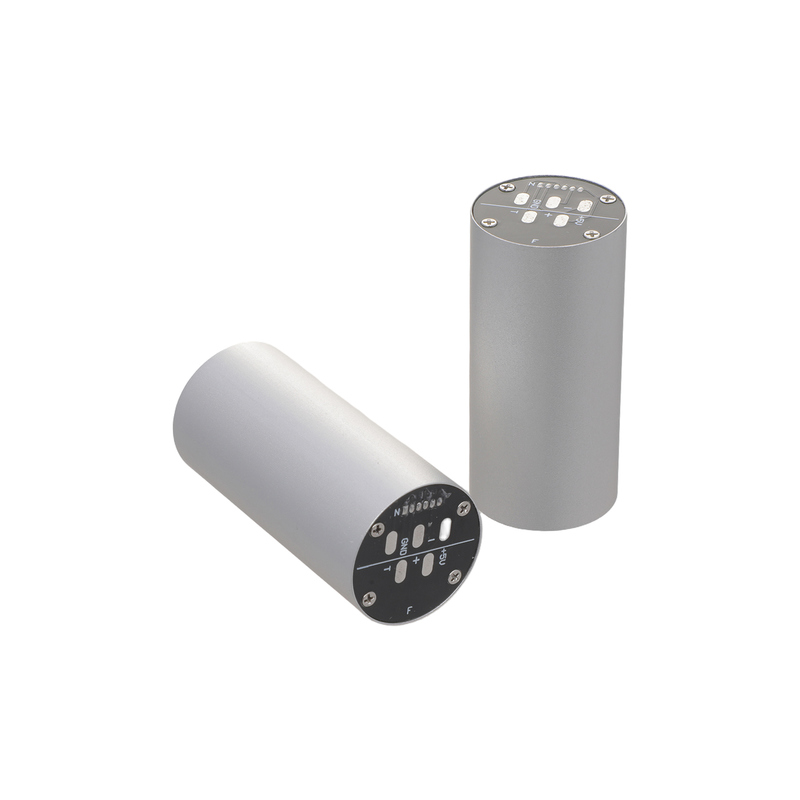

High Accuracy Fiber Optic Gyroscope for Underground Pipeline Surveying

The FizoptikaVG091A is a high-integration angular rate sensor combining optics, mechanics, and electronics based on the Sagnac effect. It utilizes micro-nano fiber devices to detect angular rate through phase difference analysis of counter-propagating light beams.

Key Features

Simple structure with no moving or wear parts
Fast startup capability
Compact dimensions: φ24mm × 51.6mm (cylindrical)
Lightweight design: ≤30g
Wide temperature range: -40℃ to +70℃ operating, -55℃ to +85℃ storage
Robust construction withstands 20g random vibration (20Hz~2000Hz)
Ideal for carrier attitude control and measurement applications

Performance Specifications

Serial Number	Project	Performance Indicators
1	Range (°/s)	±300
2	Scale factor	7±0.7mv/°/s
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H 1/2)	≤0.04
7	Zero bias (°/s)	≤0.05
8	Bandwidth 3dB Band Width (Hz)	≥450
9	Power supply (V)	5 _+_ 0.15
10	Power Consumption (W)	≤0.7
11	Dimension (mm)	φ24X51.6

External Power Supply Requirements

+5V	Specification
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

MFOG-091A Node Definition

Number	Definition	Remark
1	5V
2	Out-	Differential Output
3	Out+
4	GND	Power ground
