High Dynamic Fiber Optic Gyroscope FizoptikaVG091A for Racing Drone Motion Sensing

Name: High Dynamic Fiber Optic Gyroscope FizoptikaVG091A for Racing Drone Motion Sensing
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Production Name:

Navigation Gyro

Zero-bias Repeatability:

≤2°/h

Zero Bias Stability:

≤2°/h (10s Smoothing)

Angular Random Walk:

≤0.04°/h

3dB Band Width:

≥450Hz

Working Temperature:

-40~+70℃

Weight:

30 G

Sensing Element:

Fiber Optic Coil

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Table Type 2 Axis Turntable

Inertial Device 2 Axis Turntable

Inertial Sensors 2 Axis Turntable

Product Description

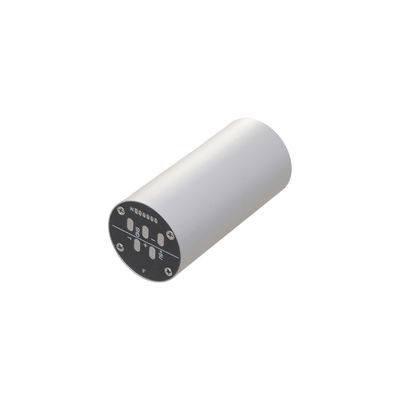

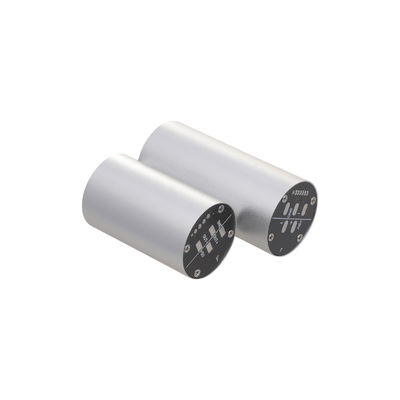

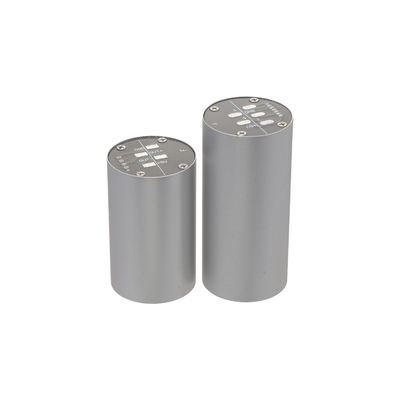

High Dynamic Fiber Optic Gyroscope FizoptikaVG091A for Racing Drone Motion Sensing

The MFOG-091A Fiber Optic Gyroscope is a solid-state FOG sensor designed for navigation, attitude control, and stabilization applications. Utilizing micro-nano fiber technology and the Sagnac effect, it delivers precise, low-drift angular rate measurements.

Featuring a lightweight design (≤30g) and compact dimensions (φ24mm * 51.6mm), this gyroscope offers fast startup and robust performance in extreme temperatures and high-vibration environments (20g, 20Hz-2000Hz). As a direct replacement for Fizoptika VG091A, it's ideal for aerospace, UAV, and defense applications.

Performance Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale factor	7±0.7mv/o/s
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H 1/2)	≤0.04
7	Zero bias (°/s)	≤0.05
8	Bandwidth 3dB Band Width (Hz)	≥450
9	Power supply (V)	5 _+_ 0.15
10	Power Consumption (W)	≤0.7
11	Dimension (mm)	φ24X51.6

External Power Supply Requirements

+5V
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

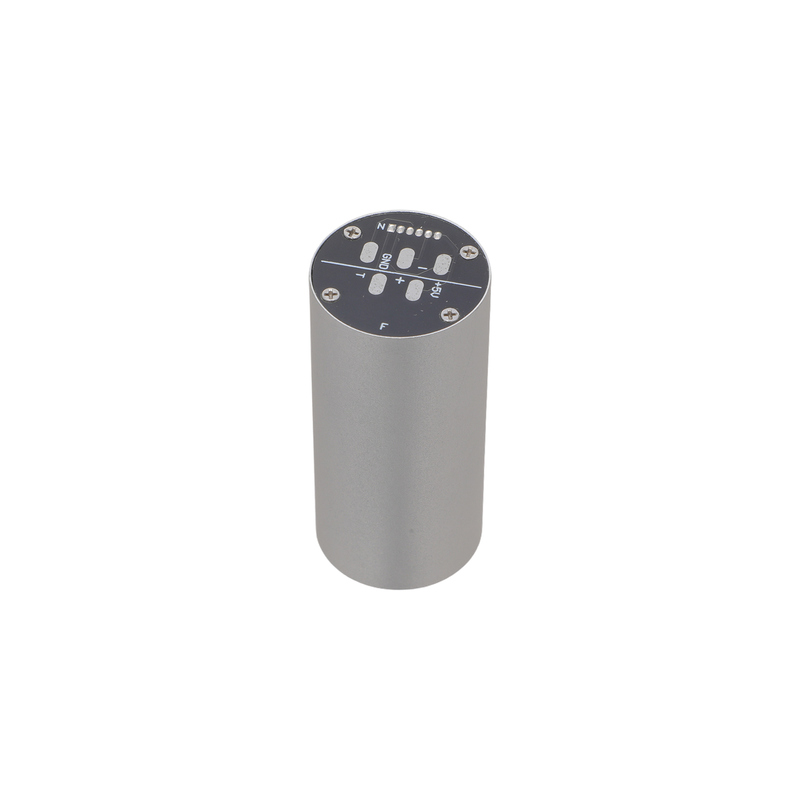

MFOG-091A Node Definition

Number	Definition	Remark
1	5V
2	Out-	Differential Output
3	Out+
4	GND	Power ground
