dual axis turntable test and calibrate for inertial device and sensors

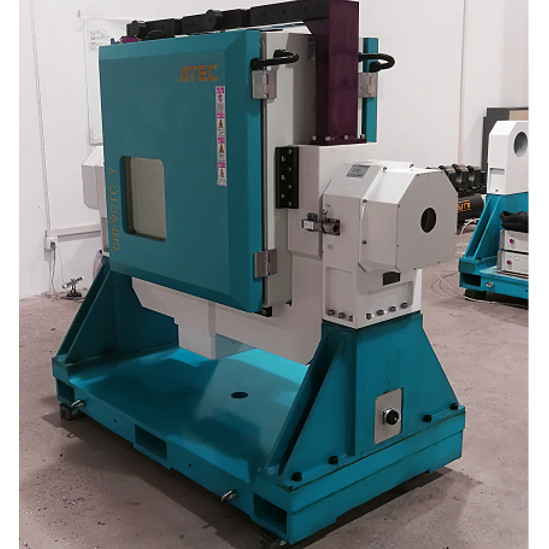

The turntable is a table-type structure test equipment produced by our company, which can be used for the detection and test of inertial measurement unit, and can also be used for the calibration and measurement of two-dimensional rotation angle of other instruments.
Technical specifications of equipment
| № | Name of the parameter | Value of the parameter | |
| 1 | Maximum payload with the armature | 50 kg. | |
| 2 | Table top diameter | 550 mm | |
| 3 | Number of axis | Two | |
| 4 | The height of the system from down to the table top | 550mm | |
| 5 | Load attachment points on the table top | By the needs of the customer | |
| 6 | Orientation of axis | Vertical and horizontal | |
| Inner Axis | Outer Axis | ||
| 7 | Angular freedom | ±360o | ±360o |
| 8 | Accuracy | ≤1arc sec RSS | ≤2 arc sec RSS |
| 9 | Stability -over 360° | 0.005% | 0.005% |
| 10 | Angular speed resolution | 0,001 deg/sec | 0,001 deg/sec |
| 11 | Minimal acceleration | 0,001 deg/sec2 | 0,001 deg/sec2 |
| 12 | Maximal accleraion | 600 deg/sec2 | 200 deg/sec2 |
| 13 | Range |
Not less than ±1000 deg/sec |
Not less than ±350 deg/sec |
| 14 | Controller |
|
|
| 15 | Bandwidth (no load) | 50 Hz at -3dB | 20 Hz at -3dB |
| 16 | Power supply 50 Hz | 230 ±10% | 230 ± 10% |
| 17 | Slip rings :80 lines |
1.Rings: 16 lines, 2А 2.Rings: 44 lines, 3А 2.Rings: 20 lines ,5А |
|
| Main parameter of the temperature chamber: | |||
| 18 | Temperature Range: | -60—+100 | °C |
| 19 | Heating Rate: | 4 | °C/min |
| 20 | Cooling Rate: | 2 | °C/min |
| 21 | Stability: | ±1 | °C |
| 22 | The inner volume of the temperature chamber (LхWхH) | 560mm х 560mm х 630 mm | |
| 23 | Corrosion resistance in the chamber for the long time usage with high humidity | Up to 98% | |
| 24 | Cooling type | Freon condenser with air cooling | |
| 25 | External dimensions with the temperature chamber, ± 10%, | 2292mm, 1050mm, 2075mm | |
