Industrial Grade High Reliability Fiber Optic Gyroscope FizoptikaVG091A Replacement

Name: Industrial Grade High Reliability Fiber Optic Gyroscope FizoptikaVG091A Replacement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Bias Instability:

≤2°/h

Zero Bias Repatability:

≤2°/h

Angle Random Walk:

0.04°/√h

Axis:

Output Drive Voltage:

≥5Vpp

Working Temperature:

-45~+70℃

Vibration:

20~2000Hz

Band Width:

>450Hz

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

550mm Turntable 2 Axis

Sensors Turntable 2 Axis

Product Description

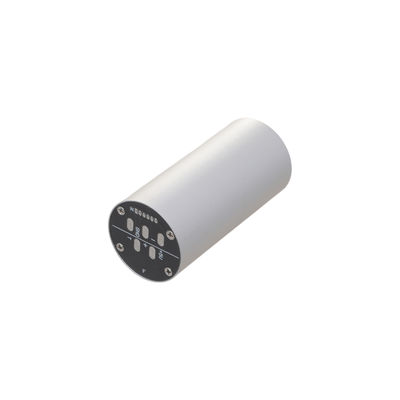

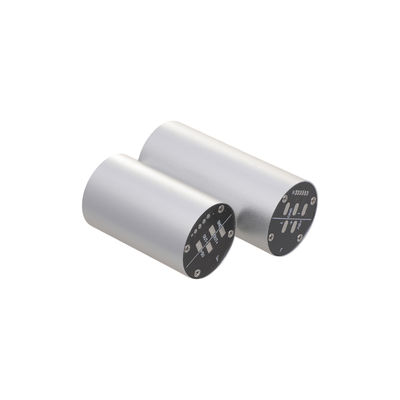

Industrial Grade High Reliability Fiber Optic Gyroscope FizoptikaVG091A Replacement

The FizoptikaVG091A is a micro-nano fiber optic gyroscope (FOG) designed as a high-precision angular rate sensor. Utilizing the Sagnac effect and advanced micro-nano fiber technology, it accurately detects phase differences of counter-propagating light for superior measurement performance.

Key Features

No moving or wear parts for exceptional reliability
Fast startup capability

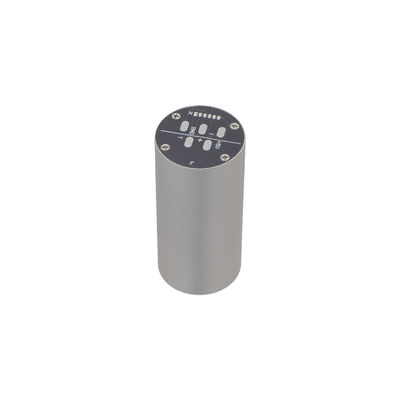

Compact cylindrical design (φ24mm * 51.6mm)
Lightweight construction (≤30g)
Wide operating temperature range (-40℃ to +70℃)
Extended storage temperature tolerance (-55℃ to +85℃)
Withstands 20g random vibration (20Hz~2000Hz)
Ideal for carrier attitude measurement and control systems

Technical Specifications

Serial Number	Project	Performance Indicators
1	Range (°/s)	±300
2	Scale factor	7±0.7mv/o/s
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H 1/2)	≤0.04
7	Zero bias (°/s)	≤0.05
8	Bandwidth 3dB Band Width (Hz)	≥450
9	Power supply (V)	5 ±0.15
10	Power Consumption (W)	≤0.7
11	Dimension (mm)	φ24*51.6

External Power Supply Requirements

+5V
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

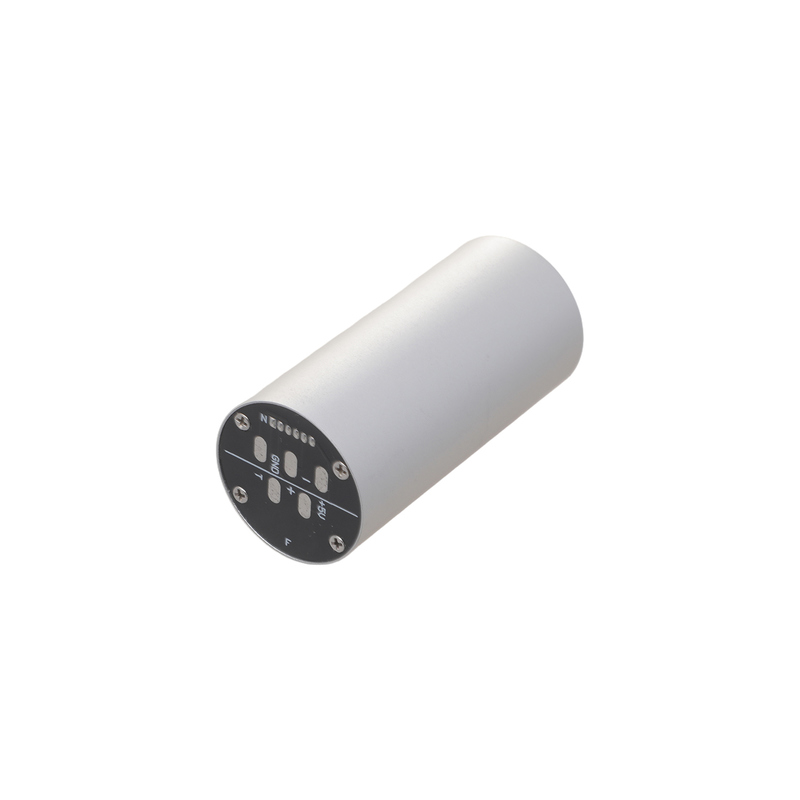

MFOG-091A Node Definition

Number	Definition	Remark
1	5V
2	Out-	Differential Output
3	Out+
4	GND	Power ground
