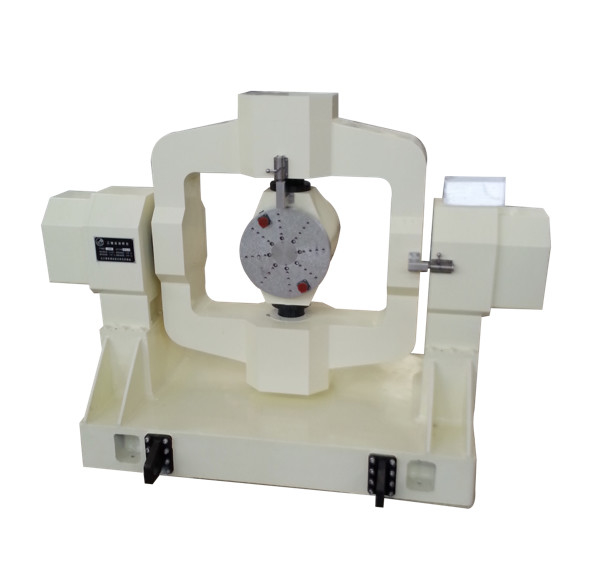

INS IMU Rate Position 2 Axis Turntable With Thermal Chamber

INS IMU Rate Position 2 Axis Turntable With Thermal Chamber
Features Gallery Product Description Request A Quote
Payload: 50 Kg
Table Top Diameter: 550 Mm
Number Of Axis: Two
Angular Freedom: ±360
High Light:

INS 2 Axis Turntable


IMU 2 Axis Turntable


IMU Turntable With Thermal Chamber

Basic Infomation
Place of Origin: CHINA
Brand Name: AVIC
Model Number: 2ST-320
Payment & Shipping Terms
Packaging Details: carton with sponge
Delivery Time: 10 days for sample
Payment Terms: T/T, L/C
Supply Ability: 1000/month
Product Description

INS IMU Rate Position Simulator, 2 Axis Rate Turntable with Control PC​


Main functions:

Position control, speed control and swing control functions;

It has the functions of computer automatic state control, data acquisition, processing and display.

It can be used for local operation and remote control of the upper computer. Serial communication (RS232 or RS422) and parallel communication interface are used for remote control, which can transmit the working status of the turntable to the upper computer, including the position and rate information of the turntable. The communication frequency of serial communication data is not less than 50HZ, and that of parallel communication data is not less than 1KHZ.

The upper computer control software can run normally on WIN98, WINXP or WIN2000 platform.


Technical specifications of equipment

Name of the parameter Value of the parameter
1 Maximum payload with the armature 50 kg.
2 Table top diameter 550 mm
3 Number of axis Two
4 The height of the system from down to the table top 550mm
5 Load attachment points on the table top By the needs of the customer
6 Orientation of axis Vertical and horizontal
    Inner Axis Outer Axis
7 Angular freedom ±360o ±360o
8 Accuracy ≤1arc sec RSS ≤2 arc sec RSS
9 Stability -over 360° 0.005% 0.005%
10 Angular speed resolution 0,001 deg/sec 0,001 deg/sec
11 Minimal acceleration 0,001 deg/sec2 0,001 deg/sec2
12 Maximal accleraion 600 deg/sec2 200 deg/sec2
13 Range

Not less than

±1000 deg/sec

Not less than

±350 deg/sec

14 Controller
  1. With the built in computer
  2. With the external computer. Connect by RS-422 or Ethernet
15 Bandwidth (no load) 50 Hz at -3dB 20 Hz at -3dB
16 Power supply 50 Hz 230 ±10% 230 ± 10%
17 Slip rings :80 lines

1.Rings: 16 lines, 2А 2.Rings: 44 lines, 3А

2.Rings: 20 lines ,5А

  Main parameter of the temperature chamber:
18 Temperature Range: -60—+100 °C
19 Heating Rate: 4 °C/min
20 Cooling Rate: 2 °C/min
21 Stability: ±1 °C
22 The inner volume of the temperature chamber (LхWхH) 560mm х 560mm х 630 mm
23 Corrosion resistance in the chamber for the long time usage with high humidity Up to 98%
24 Cooling type Freon condenser with air cooling
25 External dimensions with the temperature chamber, ± 10%, 2292mm, 1050mm, 2075mm
