Single Axis Fiber Optic Gyroscope with Compact Size for Robotics

Brand Name:	Firepower
Model Number:	MFOG-1703
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Zero Bias Repeatability:

≤ 1º/h

Type:

Fiber Optic Vertical Gyro

Accuracy:

≤1°/h

Angular Random Walk:

≤0.02°/h

Measuring Range:

±150°/s

Power Consumption:

≤1.5W

Random Vibration:

6.06g，20~2000Hz

Output Drive Voltage:

≥5Vpp

Power:

≤1W

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

INS 2 Axis Turntable

IMU 2 Axis Turntable

IMU Turntable With Thermal Chamber

Product Description

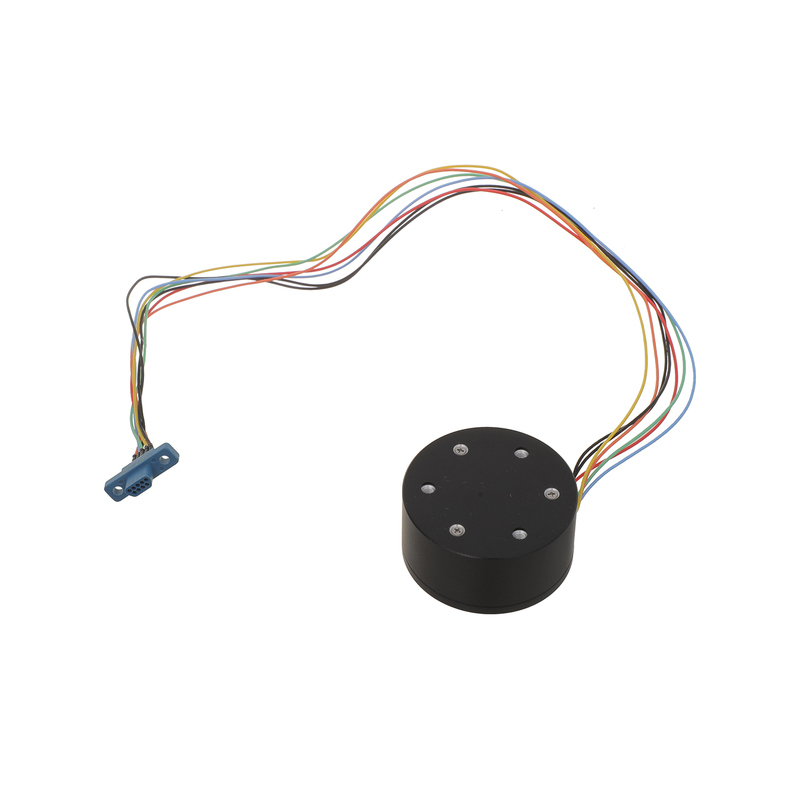

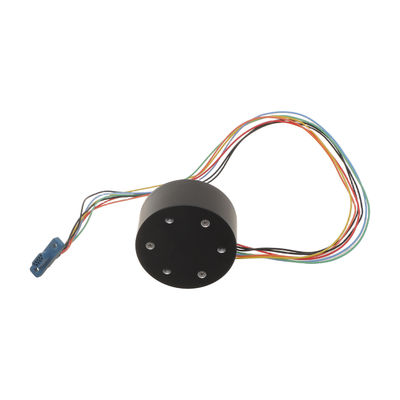

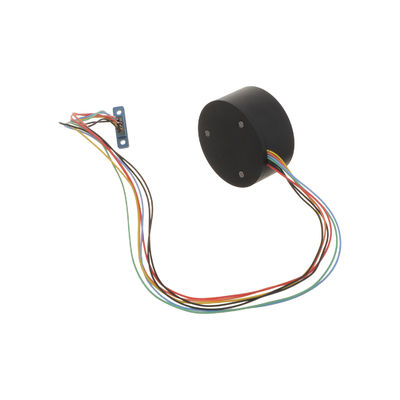

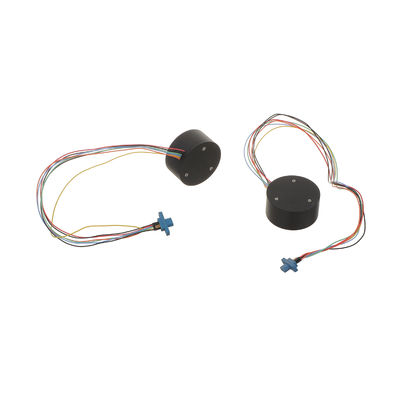

Single Axis Fiber Optic Gyroscope with Compact Size for Robotics

Fizoptika1703 Micro-Nano Fiber Optic Gyroscope - Reliable angular rate sensor for carrier tasks. Integrates optics, mechanics and electronics, uses Sagnac effect to process counter-propagating light phase differences. Composed of: optical path assembly, detection & control signal circuit board, structural parts.

Key Benefits

Simple design with no wear/moving parts
Fast startup capability
Compact size and light weight
Excellent for attitude control & measurement applications

Technical Specifications

Parameter	Value
Range (°/s)	±150
Scale factor (mV/°/s)	12±1.2
Zero-bias stability (10s, 1σ, °/h)	≤1
Zero-bias repeatability (1σ, °/h)	≤1
Angular random walk (°/h^1/2)	≤0.02
Zero-bias temperature sensitivity (uV/°C)	≤1
Scale Factor Temperature Sensitivity (ppm/°C)	≤300
3dB Bandwidth (Hz)	≥450
Impact (g)	1200, 1ms, half sine
Power supply (V)	5 ±0.25
Power Consumption (W)	≤1

Physical Characteristics

Dimension (mm)

φ40 * 20

Weight

≤40g

Environmental Specifications

Operating temperature

-40℃ to +70℃

Storage temperature

-55℃ to +85℃

Random vibration

20g, frequency range: 20Hz to 2000Hz

Mechanical and Electrical Interface
