Ultra Compact Fiber Optic Gyroscope with Analog Output for Drone Navigation

Name: Ultra Compact Fiber Optic Gyroscope with Analog Output for Drone Navigation
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-091A
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-091A
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Fiber Optic Gyroscope

Measuring Range:

±300°/s

Bias Stability:

≤2 °/h

Angular Random Walk:

≤0.04°/h

Bias Repeatability:

≤2 °/h

Overall Dimesions:

φ24mm × 51.6mm

Scale Factornonlinear:

≤1000ppm

Application:

Angular Speed Measure

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

Remote Position Rate Turntable

INS Position Rate Turntable

IMU Position Rate Turntable

Product Description

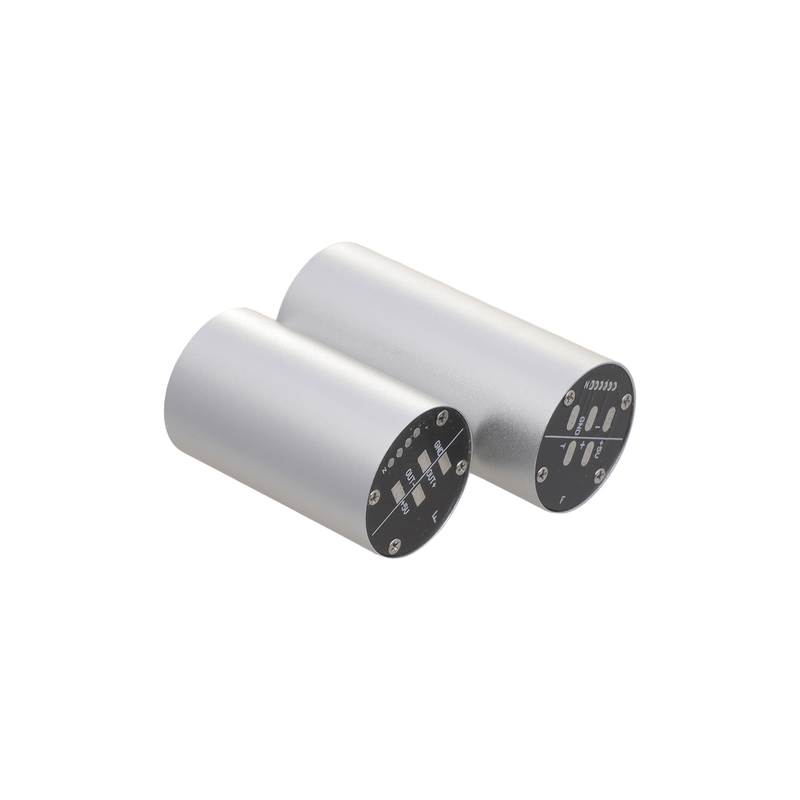

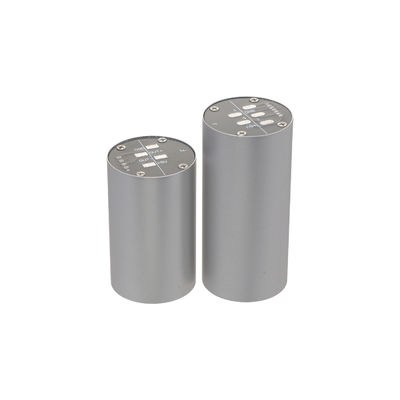

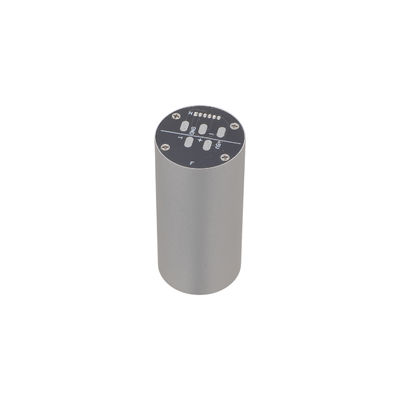

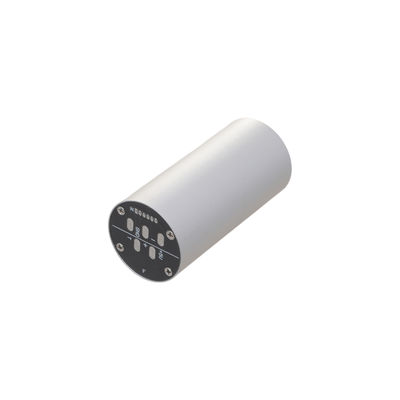

Ultra Compact Fiber Optic Gyroscope with Analog Output for Drone Navigation

The MFOG-091A Micro-Nano FOG Sensor provides stable and precise angular rate measurement for navigation and attitude control systems. Its solid-state design ensures fast startup, reliability, and low drift under harsh conditions.

Lightweight (≤30g) and compact (φ24mm × 51.6mm)
Operates from -40℃ to +70℃
Survives random vibration up to 20g
Ideal for UAVs, vehicles, and aerospace platforms
Direct Fizoptika VG091A replacement

Performance Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±300
2	Scale factor	7±0.7mv/o/s
3	Scale factor nonlinearity (ppm)	≤1000
4	Zero-bias stability (10s, 1σ, °/H)	≤2
5	Zero-bias repeatability (1σ, °/H)	≤2
6	Angular random walk (°/H 1/2)	≤0.04
7	Zero bias (°/s)	≤0.05
8	Bandwidth 3dB Band Width (Hz)	≥450
9	Power supply (V)	5 _+_ 0.15
10	Power Consumption (W)	≤0.7
11	Dimension (mm)	φ24X51.6

External Power Supply Requirements

+5V
Voltage	4.85V~5.15V
Ripple	20mV
Electric current	0.2A

MFOG-091A Node Definition

Number	Definition	Remark
1	5V
2	Out-	Differential Output
3	Out+
4	GND	Power ground
