high performance centrifuge calibration and acceleration stress screening tests for accelerometer
The centrifuge is composed of a mechanical platform, a measurement and control cabinet, and an industrial computer. It is mainly used for calibration and acceleration stress screening tests, and has smooth speed control capabilities.
The equipment adopts a box type, the box cover is made into a half-open (flip type) state, and the box cover is closed when the centrifuge is working. To ensure safety, a tact switch is provided at the cover of the box. When the cover is not covered, the device cannot be powered on.
| Item | Index | Remark |
| Table top | Disk | |
| Table diameter size | ≥900mm | |
| Total size | Ф1.2m x 0.8m | |
| Weight | 850Kg | |
| Payload weight | 10kg | |
| Payload size | φ300×300 | |
| Payload height | ≤300mm | |
| power | 380V±10％；50Hz±5Hz 20KW | |
| Centrifugal acceleration range | 0g～60 g | |
| Centrifugal acceleration accuracy | Better than 30ppm in full range | |
| Time to reach full acceleration | 70s | |
| Rotary rate accuracy (Any point test) | ≤ ± 20 ppm | |
| Rotary rate repeatability (Any point test) | ≤ ± 20 ppm | |
| Test payload quantity | 4 | |
| Slipring number | 30 rings | |
| Slipring current nominal value | 3A/ring | |
| Dynamic resistance change value | 10mΩ |
working conditions
Power supply 380V±10%; 50Hz±5Hz
Environment temperature 20℃±5℃
Relative humidity ≤85%
Mechanical structure

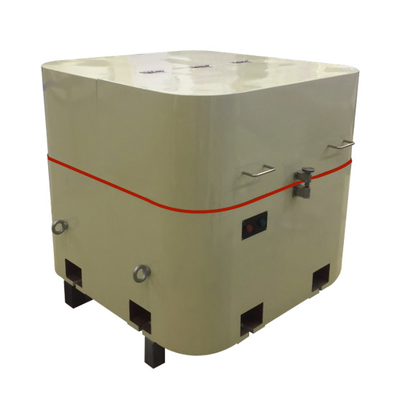

The centrifuge adopts a box-type flip cover design, and a travel switch is set at the box cover to ensure that the equipment cannot be powered on when the box cover is not tightly closed, which improves the safety protection of the operator. The appearance of the centrifuge is shown in Figure 2.
