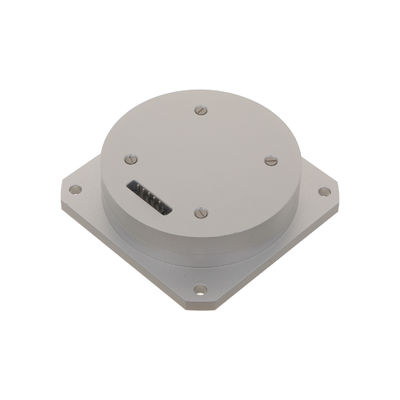

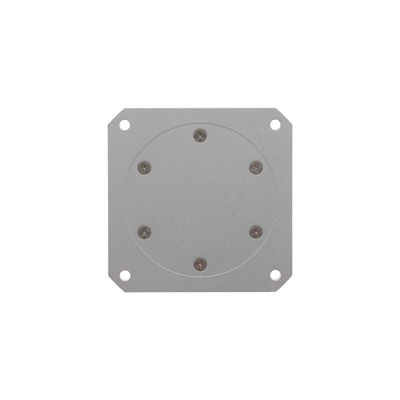

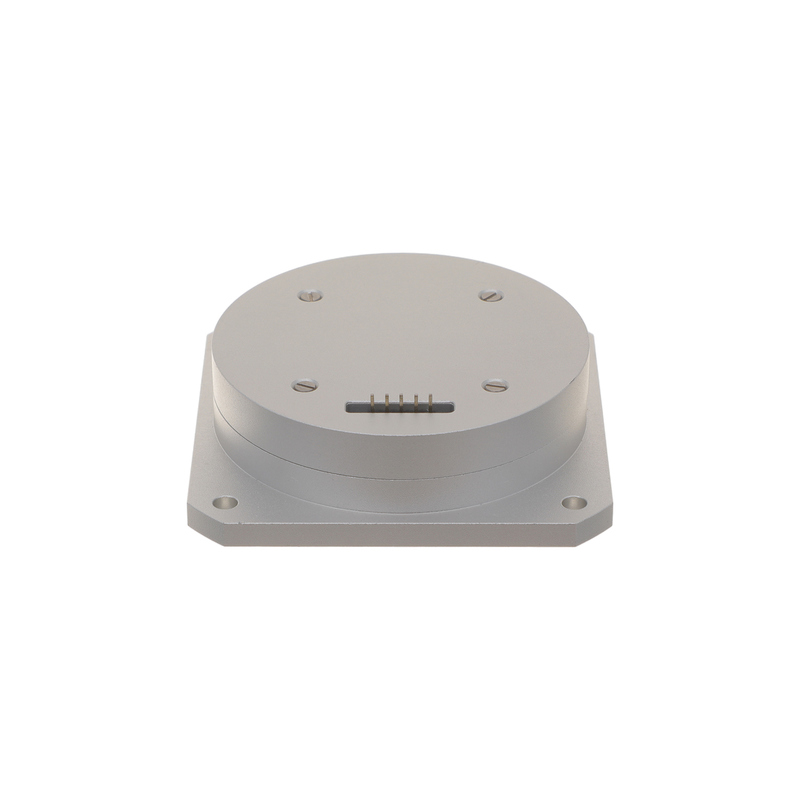

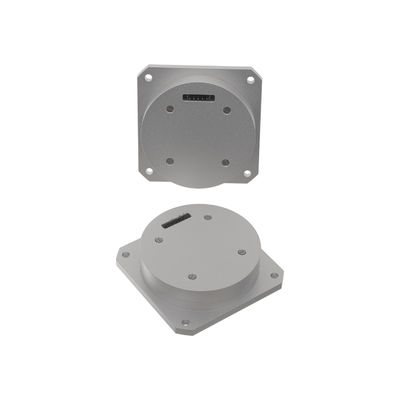

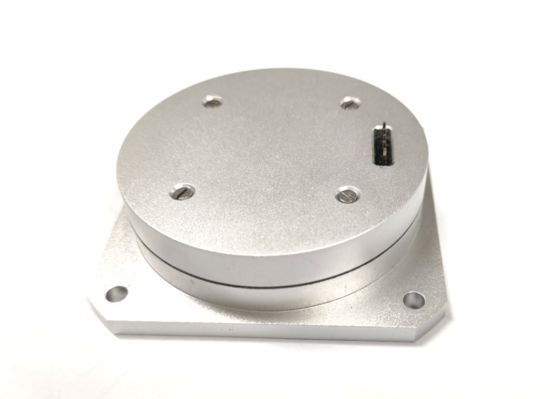

Aerospace Grade Fiber Optic Gyroscope IMU for Flight Control

Name: Aerospace Grade Fiber Optic Gyroscope IMU for Flight Control
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/monthAerospace Grade Fiber Optic Gyroscope for Flight Control

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Sensor Name:

Low Bias Gyro

Bias Repeatability:

≤1°/h

Zero-bias Stability:

≤1°/h

Random Walk:

≤0.02°/√h(1σ)

Shock Resistance:

2000 G

Overall Dimensions:

60mm*60mm*17mm

Packaging Details:

carton with sponge

Supply Ability:

1000/monthAerospace Grade Fiber Optic Gyroscope for Flight Control

Highlight:

380V Accelerometer Test Equipment

50Hz Accelerometer Test Equipment

Product Description

Aerospace Grade Fiber Optic Gyroscope IMU for Flight Control

The MFOG-103 Micro-Nano Fiber Optic Gyro is a precision angular rate sensor built on the Sagnac effect principle. It integrates optical, electronic, and structural components into a solid-state, maintenance-free design.

Key Features

Fast startup with compact size (60*60*17mm) and light weight (≤80g)
Operates in extreme temperatures (-40℃ to +70℃)
Withstands up to 20g random vibration
Ideal for attitude control, navigation, and stabilization systems
Excellent Fizoptika VG103 alternative for aerospace and industrial applications

Technical Specifications

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/°/s)	6±0.6
3	Zero-bias stability (10s, 1σ, °/H)	≤1
4	Zero-bias repeatability (1σ, °/H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk (°/√H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Installation
