Tactical Grade FOG Sensor for Accurate Angular Rate Measurement

Name: Tactical Grade FOG Sensor for Accurate Angular Rate Measurement
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-103
Price: 10000.00 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-103
MOQ:	1
Payment Terms:	T/T,L/C
Supply Ability:	1000/month

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Product Name:

Fiber Optic Gyroscope

Dynamic Range:

±350°/s

Zero-bias Stability:

≤1º/h

Scale Factor:

6±0.6mV/°/s

Start Time:

Weight:

≤80g

Bandwidth:

≥1000Hz

Output Type:

Analog

Vibration:

20~2000Hz

Applications:

Ship-Borne And Vehicle Borne Navigation

Packaging Details:

carton with sponge

Supply Ability:

1000/month

Highlight:

380V Disc Type Centrifuge

50Hz Disc Type Centrifuge

Disc Type Centrifuge Calibration Tests

Product Description

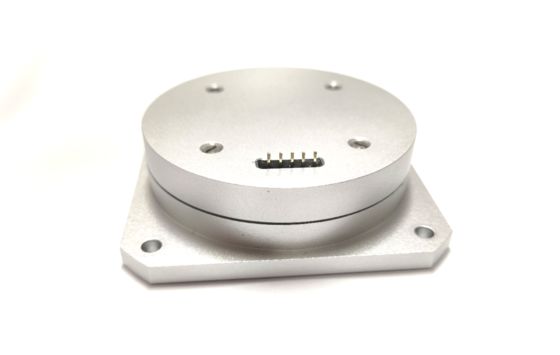

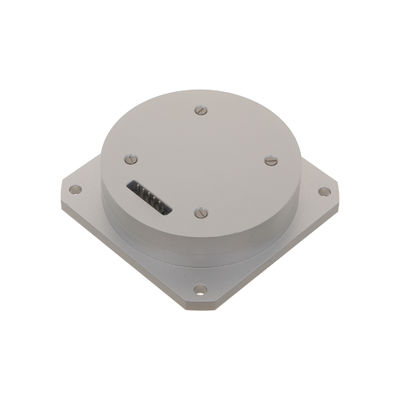

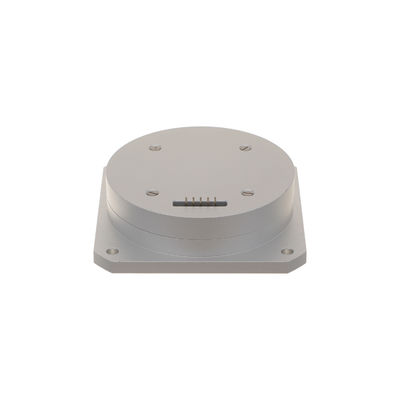

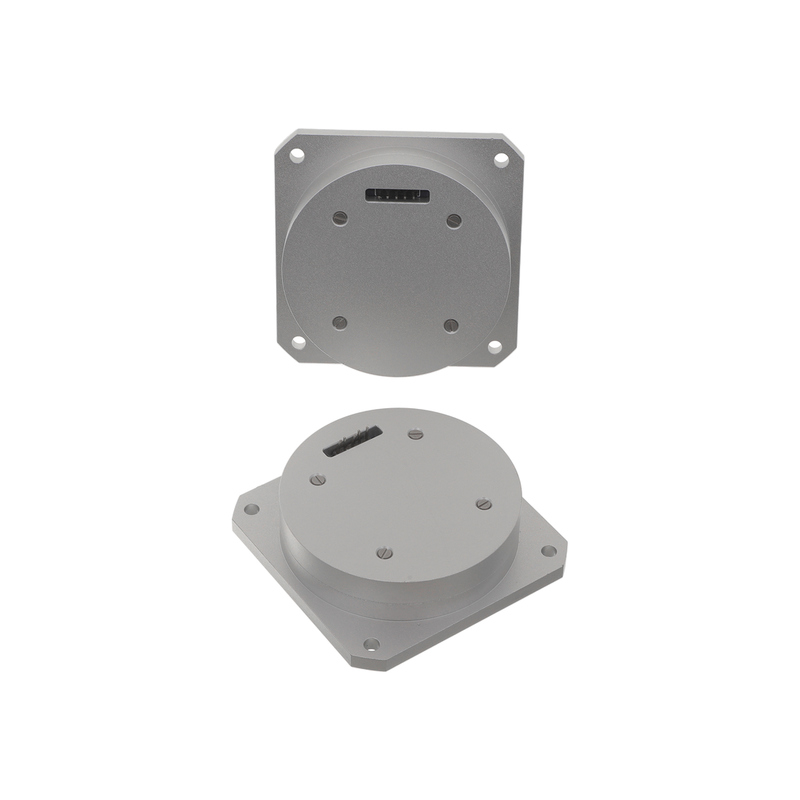

Tactical Grade FOG Sensor for Accurate Angular Rate Measurement

The MFOG-103 Micro-Nano Fiber Optic Gyroscope is a high-precision angular rate sensor that integrates optics, mechanics, and electronics. Based on the Sagnac effect, it detects rotation through the phase difference between two counter-propagating light beams in a micro-nano fiber coil.

Serial number	Project	Performance indicators
1	Range (°/s)	±350
2	Scale factor (mV/ o /s)	6±0.6
3	Zero-bias stability (10s, 1σ, o /H)	≤1
4	Zero-bias repeatability (1σ, o /H)	≤1
6	3dB Bandwidth (Hz)	≥1000
7	Random walk ( o /√ H)	≤0.02
8	Power supply (V)	5+0.25
9	Power Consumption (W)	≤1
10	Impact (g)	≥1500
11	Acceleration (g)	≥70
12	Service Life (years) (calculated assessment)	≥15
13	MTBF (Calculated Assessment)	≥100000

Key Features

Solid-state design with no moving parts
Fast startup and excellent stability
Compact and lightweight (60*60*17mm, ≤80g)
Operates in extreme temperatures from -40℃ to +70℃
Withstands vibration up to 20g
Direct replacement for Fizoptika VG103

Applications

Ideal for inertial navigation, attitude control, and stabilization systems.

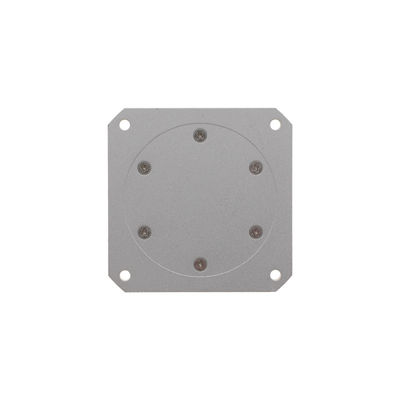

Installation Surface
