Micro-Nano Fiber Optic Gyro Inclinometer

Name: Micro-Nano Fiber Optic Gyro Inclinometer
Brand: Shenzhen Fire Power Control Technology Co., LTD
SKU: MFOG-095
Price: 1217 USD
Availability: InStock

Brand Name:	Firepower
Model Number:	MFOG-095
MOQ:	1
Price:	1217 USD
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 pcs

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

Measuring Range:

±150°/S

Scale Factor:

≥10mv/°/S

Zero-Bias Stability:

≤2°/H, 10s, 1σ

Zero Bias Repeatability:

≤2°/H, 1σ

Power Supply:

5±0.15V

Power Consumption:

≤0.7W

Packaging Details:

Sponge&Box

Supply Ability:

100 pcs

Highlight:

10kg Accelerometer Test Equipment

Accelerometer Test Equipment Vibration

Vibration Teat Disk Type Centrifuge

Product Description

Product Description

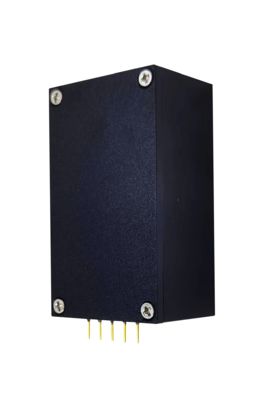

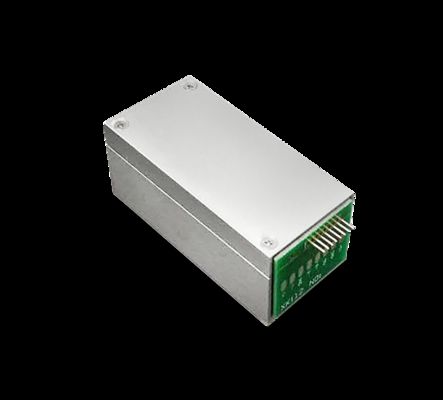

MFOG-095 micro-nano fiber optic gyroscope (hereinafter referred to as this product) is an angular rate sensor integrating optics, mechanics and electronics. It is based on the Sagnac effect, integrates a variety of micro-nano fiber devices, and realizes the detection process by detecting, processing and feeding back the phase difference generated by two beams of light propagating in opposite directions.

This product is mainly composed of optical path components, circuit components and structural components. It has the characteristics of simple structure, no moving parts, no wear parts, fast start, small size, light weight and so on. And can be apply to that attitude control and measurement of the carrier.

Technical Parameters

Project	Performance indicators
Range (°/s)	±150
Scale factor (mV/ o /s)	≥10
Zero-bias stability (10s, 1σ, o /H)	≤2
Zero-bias repeatability (1σ, o /H)	≤2
Zero bias (°/s)	≤0.05
3dB Bandwidth (Hz)	≥1000
Random walk ( o /√ H)	≤0.02
Start-up Time (s)	≤1
Power supply (V)	5+0.15
Power Consumption (W)	≤0.7
